Advantech EIS2-EXTEND - Ethernet Copper Extender for 10/100 Networks, VDSL2
by Advantech
|
|
|
|
- Extend Ethernet Copper up to 2600 meters (8,530 feet) over existing copper wire (common copper, telephone, Cat5e)
- VDSL2 technology with transmission rate of 100Mbps at 300meters
- Auto -detection of Local/Remote function to reduce installation time
- Symmetric mode where downstream and upstream TX are important
- Asymmetric mode where single TX like CCTV requires larger BW
- Auto negotiation of speed and duplex mode on TX port
- Performance / Standard mode to adjust SNR according to line quality
- One 10/100Base TX (TX) Ethernet port with RJ-45 connector
- IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX compliant
- Line port uses common RJ-11 connector
- One DIP switch for configuring local or remote mode
- Status LEDs for speed, monitoring and connection status
- External AC to DC power adapter included
- Used as a stand-alone device or with a 19-inch rack chassis
- Hot-swappable when used in 19 inch rack chassis
| Mfg SKU # : | BB-EIS2-EXTEND |
|
|
|

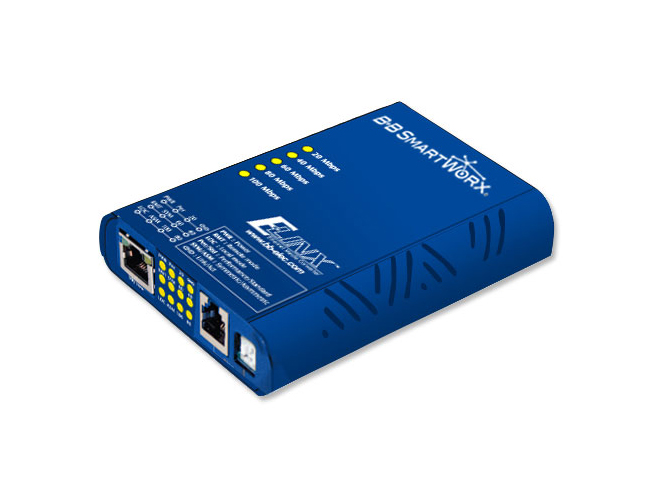

The model EIS2-EXTEND extends your copper Ethernet connections up to 2600 meters (8,530 feet) over twisted pair wire. The Ethernet Extender fully complies with IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX standards. Two EIS2-EXTEND models are required for the Ethernet extension, (one at each end of your extension points). The EIS2-EXTEND’s design features high shock, vibration, electrical noise immunity, a wide operating temperature range from -10C to 60C and ruggedized housing. The EIS2-EXTEND can be used with included power supply or in the EIS-RACK-16, 19-inch rack mount chassis used to house up to 16 EIS2-EXTEND units.
TECHNOLOGY |
Standards |
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3x |
Protocols |
Transparent to higher layer protocols |
Processing Type |
Half-duplex back-pressure and IEEE802.3x Full-duplex flow control |
Forward and Filtering Rate |
14,880pps for 10Mbps; 148,810pps for 100Mbps |
INTERFACE |
Ethernet Port |
Port: One RJ-45 port, 10/100BASE-TX Full/Half-duplex Auto-Negotiation, Auto-MDI/MDIX Speed: 10/100Mbps Distance: 100meters (328 ft.) Cable: 10BASE-T: UTP CAT. 3, 4, 5 (2-pair wire) 100BASE-TX: UTP CAT. 5 (4-pair wire) |
Extender Port |
Port: One RJ-11
Distance: 2600 meters (8,530 ft.)
Cable: Telephone wire 24AWG
(0.5mm diameter, 1-pair) or larger |
DIP Switch |
DIP Switch 1: AUTO / LOC
DIP Switch 3: Perf. / Std.
DIP Switch 2: SYM / ASM |
LED Indicators |
Per Unit: Power 1
Per 10/100TX Port: Link/Activity, full-duplex
SYM: Symmetric mode (distance ≤ 1000m)
ASM: Asymmetric mode
RMT: Remote mode
LOC: Local mode
Per: On/Performance mode - Off/Standard mode |
POWER |
Input Voltage |
12 VDC |
Power Consumption |
4.56 W Max. 0.38A @ 12VDC |
MECHANICAL |
Enclosure |
Aluminum case IP30 |
Dimensions |
8.03W x 10.92D x 2.38H cm (3.16W x 4.30D x 0.94H in) |
Weight |
150g (0.33 lb.) |
Installation |
Desktop, DIN-Rail (Top hat type 35mm), wall mounting or 19 inch rack mount chassis system |
ENVIRONMENTAL |
Operating Temperature |
-10°C to 60°C (14°F to 140°F) |
Storage Temperature |
-20°C to 70°C (-4 to 158°F) |
Ambient Relative Humidity |
5% to 95% (non-condensing) |
Regulatory Approvals |
ISO |
Manufactured in an ISO9001 facility |
Safety |
UL60950-1, EN60950-1, IEC60950-1 |
EMI/ EMS |
CE FCC Part 15, Class A VCCI Class A EN55022 EN61000-3-2, -3-3, -4-3, -4-4, -4-5, -4-6, -4-8, -6-2, 6-3 |
Environmental |
IEC60068-2-6 Fc (Vibration Resistance)
IEC60068-2-27 Ea (Shock)
FED STD 101C Method 5007.1 (Free fall w/ package) |
|
|
|
|
