EMC-0201G-SC-WA-M - 10/100/1000TX To 1000LX Single Fiber (WDM-A), MultiMode 550M, TX1310nm - RX1550nm by ANTAIRA
|
|
|
EMC-0201G-SC-WA-M_SUMMARY.html
- Complies with IEEE 802.3/u/ab 10/100/1000BaseT
- Complies with IEEE 802.3z 1000BaseX
- Supports Jumbo Frame (9K bytes)
- Store-and-Forward Switching Mechanism
- Auto-Crossover for MDI/MDIX in TP Port
- Auto-Negotiation in TP Port
- Supports Flow Control
- Supports Link Alarm
- Supports Auto & Force Mode Configuration
|
|
|
EMC-0201G-SC-WA-M_DESCRIPTION.html

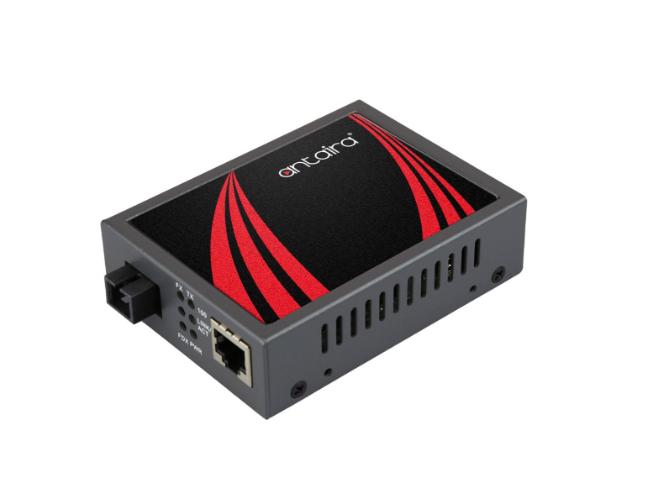

Antaira Technologies EMC-0201G-SC-WA-M is a compact multi-mode gigabit fiber to 10/100/1000 Ethernet WDM media converter. The EMC-0201G-SC-WA-M is housed in a industrial metal case and conforms to the FCC emission standards. The EMC-0201G-SC-WA-M features a standard SC single strand fiber connector as well as the copper STP-RJ45 Ethernet connector. The EMC-0201G-SC-WA-M is fully compliant with the IEEE 802.3z 1000Base-SX/LX and IEEE 802.3ab, 1000Baes-T. The EMC-0201G-SC-WA-M features LEDs that provide indicators for Power, TP Link/ACT and Fiber Link/ACT. The EMC-0201G-SC-WA-M is a industrial WDM media converter that operates on multi mode, single strand fiber TX:1310nm RX:1550nm capable of transmission up to 550 meters. WDM media converters are a great solution to double the bandwidth of a existing fiber network.
EMC-0201G-SC-WA-M.html
Approvals | FCC Class A, CE | Connector | SC (Multi-Mode WDM) | Dimensions | 71 x 94 x 26 mm (2.80 x 3.70 x 1.02 inches) | Ethernet | 1 x RJ45 Interface | Fiber | 1 x SC BiDi Interface | Humidity | 5% ~ 90% non-condensing | IEEE | IEEE 802.z 1000BaseX IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3x Flow Control | LED | Power, FDX, ACT, TP Link, Fiber Link | Link Budget | 8.0 dB | Max Tx Power | -3.0 dBm | Min Tx Power | -10.0 dBm | Operating Temperature | 0 ~ 50 C | Power | DC 5V, 1.5A (wall adapter 100V-240V AC) | Power Consumption | 6 W | Sensitivity | -18.0 dBm | Storage Temperature | -20 ~ 60 C | Typical Distance | 550 m | Warranty | 5 Years | Weight | 0.6 Kg |
|
|
