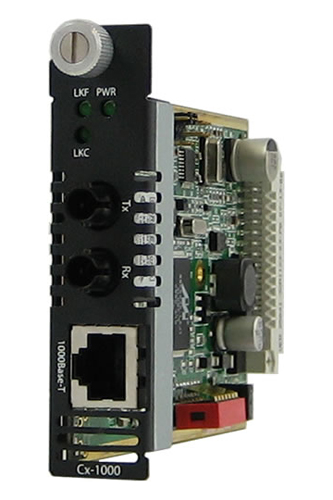

05052140 CM-1000-S2ST120 - Gigabit Ethernet Media Converter Managed Module. 1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASEEZX 15 by PERLE

05052140 CM-1000-S2ST120 - Gigabit Ethernet Media Converter Managed Module. 1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASEEZX 15
by PERLE

Write a review Write a review
  • 1000Base-T to 1000Base-ZX Single-mode Dual ST Fiber Media Converters
  • Extend network distances up to 120 km (75 mi)
  • Advanced features - Smart Link Pass-Through,
    Fiber Fault Alert, Auto-MDIX and Loopback
  • High density applications with Perle Media Converter Chassis
  • Manage via SNMP, CLI - Telnet/SSH, Internet browser, or
    PerleVIEW Centralized Management Package with an
    MCR-MGT Media Converter Management Module



Mfg SKU # : 05052140
List Price : $3,574.00
Our Price : $3,038.00
Stock : 10
Quantity :

Installed in a high density Perle Media Converter Chassis, Perle's line of feature rich Managed Gigabit Media Converter Modules transparently connect copper to fiber. Our Gigabit Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices.

Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fiber Fault Alert, and Loopback. Along with a Media Converter Management Module in the chassis, configuration and monitoring of the copper and fiber ports can be performed. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle's managed gigabit ethernet converter modules the smart choice for IT professionals.

For those environments requiring a medium to large-scale deployment of media converters, a centralized platform that simplifies the configuration, administration, monitoring, and troubleshooting of this gear is recommended. PerleVIEW Device Management software is a multi-user, Windows server-based application that delivers this level of Enterprise-grade solution.

CM-1000 Managed Media Converter Features

Configuration Mode selection Select whether the module is to use the on-board DIP switches or enable the management module in the chassis to manage
Module Information
  • Chassis Slot number that the module is in
  • Media converter model and serial
  • User configurable module name
  • User configurable fiber port name
  • User configurable copper port name
  • Hardware revision number
  • Firmware version number
Module DIP switch settings View hardware DIP switch settings
Low power mode If enabled it sets the Gigabit copper transceiver into “low power mode” which limits the strength of the signal. ( for shorter cable lengths ). Default is disabled
Port Control Enable or disable individual fiber or copper port on the module
Copper Port Status
  • Port Enabled (Yes/No)
  • Link Status (Up/Down)
  • Auto Negotiation Settings (Disabled, Complete or In Progress)
  • Resolved as crossover MDI or MDIX type
Fiber Port Status
  • Port Enabled (Yes/No)
  • Connector type (SC, LC, ST, SFP)
  • Link Status (Up/Down)
  • Far End Fault (OK, Failed)
  • Fiber Loopback mode (On/Off)
Module Control
  • Reset card
  • Reset to factory default
  • Ability to specific read/write phy registers.
  • Update firmware
  • Fiber Loopback mode (Yes/No)
  • Upload/download configuration
Backup and Restore Provides fast and easy module replacement. Management module will always save a copy of the media converter configuration and will restore this configuration automatically to the media module when it is detected in the slot
Auto-Negotiation (802.3ab) The media converter supports auto negotiation. The 1000Base-X fiber interface negotiates according to 802.3 clause 37. The 1000Base-T negotiates according to 802.3 clause 28 and 40. The 1000Base-X will link up with its partner after the highest common denominator (HCD) is reached and the copper has linked up with its partner. The 1000Base-X will continue to cycle through negotiation transmitting a remote fault of offline (provided this is enabled through the switch setting) until the copper is linked up and the HCDs match.
The media converter supports auto-negotiation of full duplex, half duplex, remote fault, full duplex pause, asymmetric pause and Auto MDI-X.
Auto-MDIX with Skew Correction Auto-MDIX (automatic medium-dependant interface crossover) detects the signaling on the 1000Base-T interface to determine the type of cable connected (straight-through or crossover) and automatically configures the connection when enabled. The media converter can also correct for wires swapped within a pair.
The media converter will adjust for up to 64ns of delay skew between the 1000Base-T pairs.
Smart Link Pass-Through When the Link Mode switch is placed into Smart Link Pass-Through mode, the 1000Base-T port will reflect the state of the 1000Base-X media converter port. This feature can be used whether fiber auto-negotiation is enabled or disabled.
Fiber Fault Alert With Fiber Fault Alert the state of the 1000Base-X receiver is passed to the 1000Base-X transmitter. This provides fault notification to the partner device attached to the 1000Base-X interface of the media converter. If the 1000Base-X transmitter is off as a result of this fault it will be turned on periodically to allow the condition to clear should the partner device on the 1000Base-X be using a similar technique. This eliminates the possibility of lockouts that occur with some media converters. Applies only when fiber auto-negotiation is disabled.
Pause (IEEE 802.3x) Pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed. The media converter supports pause negotiation on the 1000Base-T fiber connection and 1000Base-ZX Dual ST fiber connection. Select Symmetrical, asymmetrical TX or asymmetrical RX
Duplex Full and half duplex operation supported.
Jumbo Packets Transparent to jumbo packets up to 10KB-default. Jumbo packet support can be disabled.
VLAN Transparent to VLAN tagged packets. Default Jumbo packet can be disabled.
Remote Loopback Capable of performing a loopback on the 1000Base-ZX fiber interface.
Indicators
Power / TST This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode.
Fiber link on / Receive activity (LKF) This green LED is operational only when power is applied. The LED is on when the 1000Base-X link is on and flashes with a 50% duty cycle when data is received. The LED will slow blink when the 1000Base-X interface has been taken down as a result of a fault on the 1000Base-T interface.
Copper link on / Receive activity (LKC) This green LED is operational only when power is applied. The LED i on when the 1000Base-T link is on and flashes with a 50% duty cycle when data is received. The LED will slow blink when the 1000Base-T interface has been taken down as a result of a fault on the 1000Base-T interface.
Switches: On-Board ( If Auto/Switch strap is set to Switch )
Auto-Negotiation Enabled (Default - Up) - In this mode the 1000Base-X and the 1000Base-T will negotiate to the HCD of the two link partners. The 1000Base-X will link up after the negotiation is completed and the 1000Base-T has linked up.

Disabled - The 1000Base-X will not use auto negotiation. The 1000Base-T will negotiate to the HCD of the Switch settings and the link partner.

Link Mode Link Mode provides a transparency to the state of the copper link allowing for simplified trouble shooting from the devices connected to the media converter.

Normal (Default - Up)
With Fiber Auto Negotiation enabled when the 1000Base-T link goes down the 1000Base-X link is brought down. The 1000Base-X link will advertise Remote Fault (Link Fault).

With Fiber Auto Negotiation disabled the state of the 1000Base-T link has no effect on the 1000Base-X link.

Smart Link Pass Through (Down)
With Fiber Auto Negotiationenabled the behavior is as follows. When the 1000Base-T link goes down the 1000Base-X link is brought down. The 1000Base-X link will advertise Remote Fault (Link Fault). When Remote Fault (Link Fault) is received on the 1000Base-X interface the 1000Base-T transmitter will be turned off. When the 1000Base-T receiver is off the 1000Base-X transmitter will be turned off. When the 1000Base-X receiver goes off the 1000Base-T transmitter will be turned off.

With Fiber Auto-Negotiation disabled the behavior is as follows. When the 1000Base-T receiver is off the 1000Base-X transmitter will be turned off. When the 1000Base-X receiver goes off the 1000Base-T transmitter will be turned off.

Pause When Fiber Auto Negotiation is disabled Pause should only be enabled when all devices connected to the media converter support pause.

Enabled(Default) - The Media converter will advertise Pause capable, Asymmetric pause not needed during Auto-Negotiation.

Disabled - The Media converter will advertise that it does not have Pause capability during Auto-Negotiation.

Fiber Fault Alert The Fiber Fault Alert switch has meaning when Auto-Negotiation is disabled

Enabled (Default - Up)
When the 1000Base-X receiver is off the 1000Base-X transmitter is turned off. Periodically the 1000Base-X receiver will be turned on for a short period to allow the condition to clear if the 1000Base-X link partner is using a similar feature.

Disabled (Down)

Duplex Full (Default-Up) - The media converter will advertise Full Duplex Capable, Half Duplex Capable.

AUTO (Down) -The Media converter will advertise Full Duplex Not Capable, Half Duplex Capable.

Remote Loopback The media converter can perform a loopback on the 1000Base-X fiber interface.

Disabled (Default - Up)

Enabled - The 1000Base-X receiver is looped to the 1000Base-X transmitter. The 1000Base-T transmitter is taken off the interface.

Configuration Mode Strap Auto (default) enable management module to overwrite hardware switch settings Switch - Use on-board DIP switches
Connectors
1000Base-T RJ45 connector, 4 pair CAT 5 UTP cable or cable
Magnetic Isolation 1.5kv
Packet Transmission Characteristics
Bit Error Rate (BER) <10 -12
Environmental Specifications
Operating Temperature 0° C to 50° C (32° F to 122° F)
Storage Temperature minimum range of -25° C to 70° C (-13° F to 158° F)
Operating Humidity 5% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Operating Altitude Up to 3,048 meters (10,000 feet)
Heat Output
( BTU/HR )
10.2
Maximum Power Consumption ( Watts ) 3.0
MTBF (Hours)* 609,000
Mechanical - Hot Swapping Card
Edge Connecter 32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. Fist make, last break for ground and power
Card insertion and removal Captive thumb screws enable fast insertion and removal. Can be further tighten with a screwdriver.
Product Weight
Weight 0.15 kg, 0.33 lbs
Packaging
Shipping Weight 0.33 kg, .73 lbs
Shipping Dimensons 203 x 38 x 152 mm, 8 x 1.5 x 6 inches
Regulatory Approvals
Emissions FCC Part 15 Class A, EN55022 Class A
CISPR 22 Class A
EN61000-3-2
Immunity EN55024
Electrical Safety UL 60950-1
EN60950
CE
Laser Safety EN 60825-1:2007
Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.
Environmental Reach, RoHS and WEEE Compliant
Other ECCN: 5A991
HTSUS Number: 8517.62.0050
Perle Limited Lifetime Warranty

*Calculation model based on MIL-HDBK-217-FN2 @ 30 °C
