CSM-200-1214 - 10100Base-TX to 100Base-Fx Converter. SC Multi mode. Slide-in Module by MOXA

CSM-200-1214 - 10100Base-TX to 100Base-Fx Converter. SC Multi mode. Slide-in Module
by MOXA

Write a review Write a review
  • LFP (Link Fault Pass-through) and FEF (Far End Fault)
  • Two different operation modes
    • Store-and-Forward
    • Pass Through
  • Auto Negotiation
  • Plug and Play
  • Hot-swap



Mfg SKU # : CSM-200-1214
Our Price : $332.24
Stock : Call for Availability
Quantity :

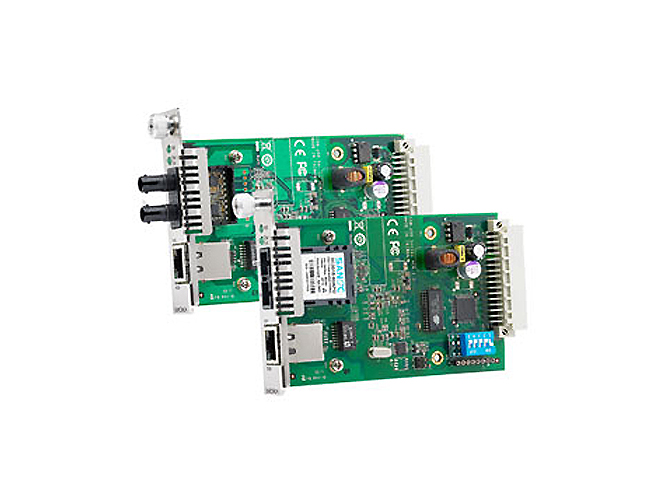

The CSM-200-1213 modules are slide-in Ethernet-to-fiber media converters for the NRack System™. The modules provide media conversion from 10/100BaseT(X) to 100BaseFX (SC/ST connectors), and can be installed in any NRack System™ chassis.
 Technology
Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X), 100BaseFX
 Interface
RJ45 Ports 10/100BaseT(X)
Fiber Ports 100BaseFX (SC/ST connectors)
LED Indicators PWR, Fiber Link, 10/100M (TP port)
DIP Switches
 Optical Fiber



100BaseFX

Multi-Mode

Single-Mode

Fiber Cable Type

OM1

50/125 um

G.652

800 MHz * km

Typical Distance

4 km

5 km

40 km

Wave-length

Typical (nm)

1300

1310

TX Range (nm)

1260 to 1360

1280 to 1340

RX Range (nm)

1100 to 1600

1100 to 1600

Optical Power

TX Range (dBm)

-10 to -20

0 to -5

RX Range (dB)

-3 to -20

-3 to -34

Link Budget (dB)

12

29

Dispersion Penalty (dB)

3

1

Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.

Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB)

 Physical Characteristics
Dimensions 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)
Weight Product only:
CSM-200-1213: 115 g (0.25 lb)
CSM-200-1214/1218: 125 g (0.28 lb)
Packaged:
CSM-200-1213: 170 g (0.37 lb)
CSM-200-1214/1218: 180 g (0.40 lb)
 Environmental Limits
Operating Temperature 0 to 55°C (32 to 131°F)
Storage Temperature -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
 Power Requirements
Input Voltage 12 VDC
Input Current 180 mA @ 12 VDC max.
 Standards and Certifications
Safety UL 60950-1
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS EN 61000-4-2 (ESD): Contact: 4 kV; Air: 8 kV
EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m
EN 61000-4-4 (EFT): Power: 1 kV; Signal: 0.5 kV
EN 61000-4-5 (Surge): Power: 1 kV; Signal: 0.5 kV
EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m
EN 61000-4-8 (PFMF)
EN
Freefall IEC 60068-2-32
 MTBF (mean time between failures)
Time 1,454,560 hrs
Standard Telcordia (Bellcore), GB
