VPort P06-2L36M-T - EN 50155, 1080P, H.264/MJPEG IP camera with M12 connector, 1 audio input, PoE, 3.6 mm lens, -40 to 70C opera
by MOXA

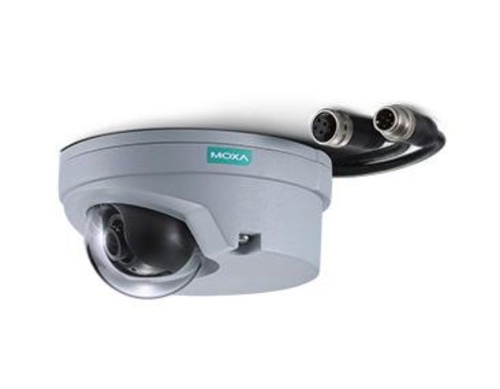

The VPort 06-2 cameras are compact, 1080P (1920 x 1080), H.264/MJPEG dome IP cameras designed for mobile video surveillance applications. The cameras are compliant with EN 62262 IK8, mandatory sections of EN 50155,

Memory

• microSD Slot

  • SDXC

Input/Output Interface

• Digital Input Channels

  • 1

• Digital Inputs

  • +13 to +30 V for state 1
    -30 to +1 V for state 0
    Max. input current: 8 mA

• Connector

  • 5-pin A-coded male M12 connector with 20 cm cable

Ethernet Interface

• PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

  • 1

Ethernet Software Features

• Protocols

  • TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS, SIP

Security Functions

• Password

  • User-level password protection

• Filter

  • IP address

• Encryption

  • HTTPS

Power Parameters

• No. of Power Inputs

  • 1

• Source of Input Power

  • PoE (IEEE 802.3af)

• Input Current

  • 0.17 A @ 48 VDC

Camera Characteristics

• Sensor

  • 1/3-in 1080P progressive scan CMOS

• Lens

  • f=3.6 mm, F1.6, Diagonal 99, Horizontal 70, Vertical 39

• Minimum Illumination

  • Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)

• Synchronization

  • Internal

• White Balance

  • ATW/AWB

• Electronic Shutter

  • Auto, Fixed (1/30 to 1/25000 sec)

• S/N Ratio

  • Maximum 50 dB (AGC off; DNR on)

• DNR (digital noise reduction)

  • Built-in 2D/3D DNR

• WDR (wide dynamic range)

  • 100 dB

• AGC (auto gain control)

  • 2X, 4X, 8X, 16X

• Flickerless Control

  • Automatic, 50 Hz, 60 Hz modes

• Image Rotation

  • Flip, Mirror, 90, 180, 270 rotation

• Image Setting

  • Manual tuning with saturation, sharpness, and contrast

• Camera Angle

  • Pan: ±15, Tilt: 0 to 90 (controlled manually)

Video Interface

• Video Compression

  • H.264 (ISO/IEC 14496-10) or MJPEG

• Video Output

  • via Ethernet

• Video Streams

  • 4 independent H.264 or MJPEG video streams

• Video Resolution and FPS (frames per second)

  • Read more

    	NTSC		PAL
    	Size	Max. FPS	Size	Max. FPS
    QCIF	176 x 112	30	176 x 144	25
    CIF	352 x 240	30	352 x 288	25
    VGA	640 x 480	30	640 x 480	25
    4CIF	704 x 480	30	704 x 576	25
    Full D1	720 x 480	30	720 x 576	25
    SVGA	800 x 600	30	800 x 600	25
    HD	1280 x 720	30	1280 x 720	25
    WXGA	1280 x 800	30	1280 x 800	25
    Full HD	1920 x 1080	30	1920 x 1080	30

• Video Viewing

  • DynaStream' support for changing the video frame rate automatically
    CBR Pro' for good image quality in limited bandwidth transmissions
    3 privacy mask areas provided
    Adjustable image size and quality
    Timestamp and text overlay
    OSD (On Screen Display) position adjustable
    Maximum of 5 simultaneous unicast connections, 50 multicast clients

Audio Interface

• Audio Format

  • Mono, PCM (G.711)
    AAC

• Audio Inputs

  • 1 x line-in, with M12connector

Camera Software Development

• Video Standards

  • ONVIF Profile S

Camera Alarm Software Features

• Intelligent Video

  • Camera tampering detection

• Video Motion Detection

  • 3 independently configurable areas

• Shock Detection

  • Built-in G sensor

• Scheduling

  • Daily repeat timing schedule

• Imaging

  • JPEG snapshots for pre/trigger/post alarm images

• Custom Alarms

  • HTTP event servers for setting customized alarm actions

• FTP Messaging

  • Automatic transfer of stored images via FTP as event-triggered actions

• Pre-Alarm Buffer

  • 50 MB video buffer for JPEG snapshot images

• Video Recording

  • Event recordings stored on the SD card

Software Requirements

• Memory Size

  • 2 GB

• Operating System

  • Windows 7 or above

• Browser

  • Internet Explorer 9.x or above

• Multimedia

  • DirectX 9.0C or above

Physical Characteristics

• Housing

  • IP66 rain and dust protection
    Metal housing, PC dome cover
    IK8 vandal resistant protection

• Dimensions

  • 110 x 115.5 x 61.8 mm (4.33 x 4.53 x 2.43 in)

• Weight

  • 620 g (1.37 lb)

• Installation

  • Panel mounting

Environmental Limits

• Operating Temperature

  • -40 to 70C (-40 to 158F)

• Storage Temperature (package included)

  • -40 to 85C (-40 to 185F)

• Ambient Relative Humidity

  • 5 to 95% (non-condensing)

• Ingress Protection

  • IEC 60529, IP66

• Vandal Resistance

  • EN 62262, IK8

• Altitude

  • 2000 m
    Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

Standards and Certifications

• EMI

  • CISPR 32, FCC Part 15B Class A

• EMS

  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

• Freefall

  • IEC 60068-2-31

• Railway Fire Protection

  • EN 45545-2

• Safety

  • UL 60950-1

• Shock

  • IEC 60068-2-27, IEC 61373, EN 50155

• Vibration

  • IEC 60068-2-64, IEC 61373, EN 50155

• Railway

  • EN 50155 (complies with a portion of EN 50155 specifications), GB/T 24338.4-2009

MTBF

• Time

  • 1,075,216 hrs

• Standards

  • Telcordia SR332
