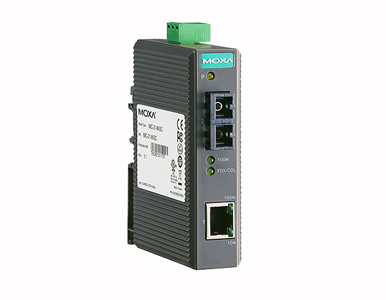

IMC-21-S-SC - Entry-level Industrial Media Converter, single mode, SC, -10 to 60 Degree C
by MOXA

The IMC-21-S-SC industrial media converters are entry-level 10/100BaseT(X)-to-100BaseFX media converters designed to provide reliable and stable operation in harsh industrial environments. The converters are a cost-effective solution that run on either a 12 or 48 VDC power input and can operate reliably in temperatures ranging from -10 to 60°C. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The IMC-21 converters are easy to mount on a DIN rail or in distribution boxes.

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector)

  1

• 100BaseFX Ports (single-mode SC connector)

  IMC-21-S-SC: 1

• Magnetic Isolation Protection

  1.5 kV (built-in)

• Optical Fiber





Power Parameters

• Input Current

  271 mA @ 12 to 48 VDC

• Input Voltage

  12 to 48 VDC

• Overload Current Protection

  Supported

• Power Consumption

  271 mA @ 12 to 48 VDC

Physical Characteristics

• Housing

  Plastic

• IP Rating

  IP30

• Dimensions

  25 x 109 x 97 mm (0.98 x 4.29 x 3.82 in)

• Weight

  125 g (0.27 lb)

• Installation

  DIN-rail mounting

Environmental Limits

• Operating Temperature

  -10 to 60°C (14 to 140°F)

• Storage Temperature (package included)

  -40 to 70°C (-40 to 158°F)

• Ambient Relative Humidity

  5 to 95% (non-condensing)

Standards and Certifications

• EMC

  EN 55032/24

• EMI

  CISPR 32, FCC Part 15B Class A

• EMS

  IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  IEC 61000-4-8 PFMF
  IEC 61000-4-11

• Environmental Testing

  IEC 60068-2-1
  IEC 60068-2-2
  IEC 60068-2-3

• Safety

  EN 60950-1, UL 60950-1

• Vibration

  IEC 60068-2-6

MTBF

• Time

  353,000 hrs

• Standards

  MIL-HDBK-217F
