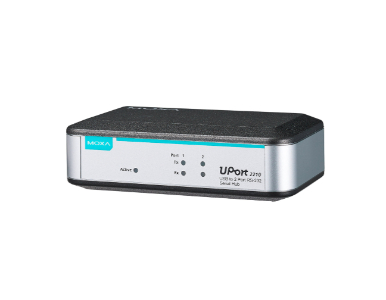

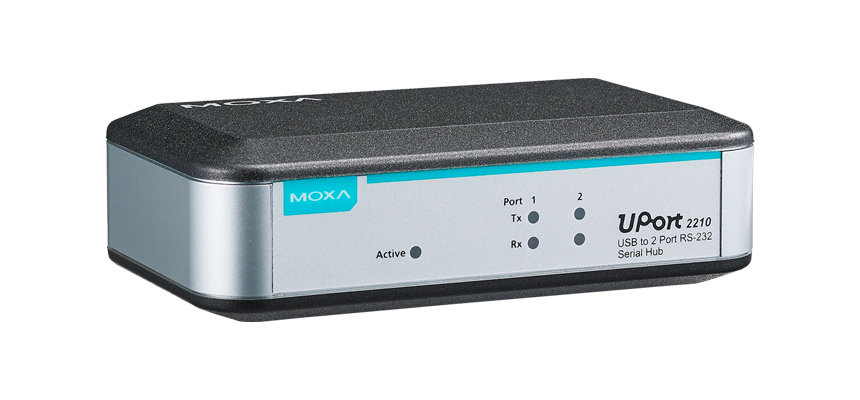

The UPort® 2210 USB-to-serial converters allow you to connect 2 RS-232 devices to your laptop or workstation through the USB (Universal Serial Bus) port. The UPort® 2210 are cost-effective solutions for both new and legacy RS-232 devices, and are perfect for mobile, instrumentation, and point-of sale applications.
| • USB Interface |
| Compliance |
USB 1.1/2.0 compliant |
| Connector |
USB type B |
| Speed |
480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB) |
| • Serial Interface |
| Number of Ports |
2 |
| Serial Standards |
RS-232 |
| Connector |
DB9 male |
| • Serial Line Protection |
| ESD Protection |
15 kV embedded |
| • Performance |
| Baudrate |
50 bps to 921.6 kbps |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Mark, Space |
| Flow Control |
RTS/CTS, XON/XOFF |
| FIFO |
16 bytes |
| • Serial Signals |
| RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| • Operating Systems |
| Windows Real COM Drivers |
Windows 2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2012 (x64), Windows Embedded CE 5.0/6.0 |
| • Android Driver |
| Mac Driver |
Mac OS X, Mac |
| Linux Real TTY Drivers |
Linux 2.4.x, 2.6.x, 3.x |
| Note |
Please refer to Moxa’s website for the latest driver support information. |
| • Physical Characteristics |
| Housing |
Polycarbonate (PC) |
| Weight |
Product only:120 g (0.26 lb)
Packaged:325 g (0.72 lb) |
| Dimensions |
70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in) |
| • Environmental Limits |
| Operating Temperature |
0 to 55°C (32 to 131°F) |
| Storage Temperature |
-20 to 75°C (-4 to 167°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Altitude |
Up to 2000 m |
| Note |
Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| • Standards and Certifications |
| Safety |
UL 60950-1 |
| EMC |
CE, FCC |
| EMI |
EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B |
| EMS |
EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC-61000-4-6, IEC 61000-4-8, IEC-61000-4-11 |
| Green Product |
RoHS, CRoHS, WEEE |
| • Power Requirements |
| Power Consumption |
140 mA @ 5 VDC |
| • MTBF (mean time between failures) |
| Time |
4,221,778 hrs |
| Database |
Telcordia (Bellcore), GB |
|
