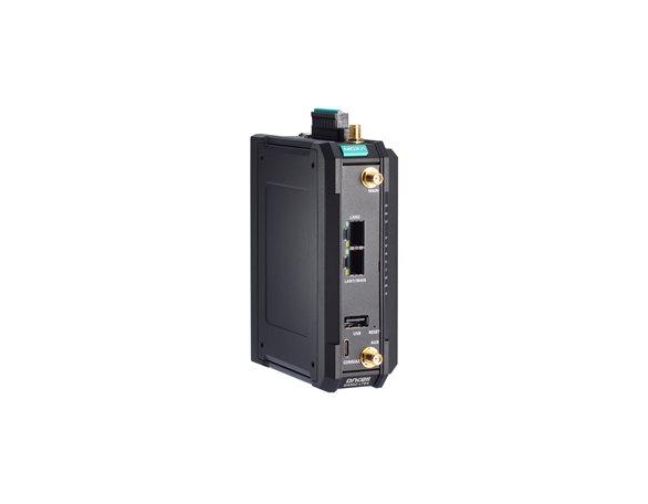

OnCell G4302-LTE4-AU-T - Industrial LTE Cat. 4 cellular secure router, B1/B3/B5/B7/B8/B28, 2 10/100/1000BaseT(X) RJ45 ports, -30
by MOXA

The OnCell G4302-LTE4-AU-T is a reliable and powerful secure cellular router with global LTE coverage. This router provides reliable data transfers from serial and Ethernet to a cellular interface that can be easily integrated into legacy and modern applications. WAN redundancy between the cellular and Ethernet interfaces guarantees minimal downtime, while also providing extra flexibility. To enhance cellular connection reliability and availability, the OnCell G4302-LTE4 Series features GuaranLink with dual SIM cards. Moreover, the OnCell G4302-LTE4 Series features dual power inputs, high-level EMS, and a wide operating temperature for deployment in demanding environments. Through the power management function, administrators can set up schedules to fully control the OnCell G4302-LTE4 Series' power usage and minimize power consumption when idle to save cost.

Cellular Interface

• Cellular Standards

  • LTE CAT 4, HSPA, UMTS, EDGE, GPRS, GSM

• LTE Data Rate

  • 20 MHz bandwidth: 150 Mbps DL, 50 Mbps UL

• Band Options (AU)

  • LTE B1 (2100 MHz) / B3 (1800 MHz) / B5 (850 MHz) / B7 (2600 MHz) / B8 (900 MHz) / B28 (700 MHz)
    UMTS/HSPA B1 (2100 MHz) / B5 (850 MHz) / B8 (900 MHz)
    GSM/GPRS/EDGE 900 MHz / 1800 MHz

• No. of SIMs

  • 2 Push-eject tray type

• SIM Format

  • Nano SIM

• Cellular Antenna Connectors

  • 2 SMA female

Ethernet Interface

• 10/100/1000BaseT(X) Ports (RJ45 connector)

  • 2

GNSS Interface

• GNSS Bands

  • GPS (1575.42 MHz)
    GLONASS (1597.52 MHz)
    Galileo (1575.42 MHz)
    BeiDou (1561.098 MHz)

• GNSS Antenna Connectors

  • 1 SMA female

Input/Output Interface

• Alarm Contact Channels

  • 1
    Relay output with current carrying capacity of 1 A @ 24 VDC

• Analog Input Channels

  • 1

• Digital Inputs

  • -30 to +3 V for state 0
    +13 to +30 V for state 1

• Buttons

  • Reset button

USB Interface

• No. of USB Ports

  • 1

• USB Connector

  • USB Type A

• USB Standards

  • USB 2.0

Serial Interface

• No. of Ports

  • 1

• Connector

  • DB9 male

• Serial Standards

  • RS-232/422/485

• Data Bits

  • 5, 6, 7, 8

• Stop Bits

  • 1, 1.5, 2

• Parity

  • None
    Even
    Odd

• Baudrate

  • 300 bps to 921.6 kbps

• Console Port

  • RS-232 (TxD, RxD, GND), USB type-C (115200, n, 8, 1)

Serial Signals

• RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

• RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

• RS-485-2w

  • Data+, Data-, GND

• RS-485-4w

  • Tx+, Tx-, Rx+, Rx-, GND

Operation Modes

• Standards

  • Real COM mode
    RFC2217 mode
    TCP Client mode
    TCP Server mode
    UDP mode

LED Interface

• LED Indicators

  • PWR1, PWR2, STATE, USB, SIM1, SIM2, CELL, LTE, GNSS, SERIAL, VPN

Ethernet Software Features

• Management

  • GuaranLink
    Power Management
    Back Pressure Flow Control
    LLDP
    Syslog
    Wireless Search Utility
    MXview One
    MXconfig
    MXsecurity
    MRC Quick Link \t\t\tAvailable in Q4, 2023.\t

• Broadcast Forwarding

  • IP directed broadcast, broadcast forwarding

• Configuration Options

  • Serial Console
    Web Console (HTTP/HTTPS)
    Command Line Interface (CLI) through Serial/Telnet/SSH

• Network Protocols

  • DDNS
    DHCP Server/Client
    SMTP
    SNMPv1/v2c/v3
    ARP
    Telnet
    TCP/IP
    UDP
    Remote SMS Control

• Filter

  • 802.1Q VLAN
    Port-based VLAN

• Unicast Routing

  • Static Route

• Multicast Routing

  • Static Route

• Routing Redundancy

  • VRRP

• Time Management

  • NTP Server/Client
    SNTP

Security Functions

• Hardware-based Security

  • Secure Boot

• Password

  • User-level password protection

• Authentication

  • Local database
    RADIUS
    Access Control List

Firewall

• Filter

  • DDoS
    Ethernet protocols
    ICMP
    IP address
    MAC address
    Ports

NAT

• Features

  • 1-to-1
    N-to-1
    PAT
    NAT loopback
    Double NAT

IPsec VPN

• Authentication

  • MD5 and SHA (SHA-256)
    RSA (key size: 1024-bit, 2048-bit)
    Pre-shared Key or X.509 v3 certificate

• Encryption

  • DES
    3DES
    AES-128
    AES-192
    AES-256

• Concurrent VPN Tunnels

  • Max. 15 IPsec VPN tunnels

• Protocols

  • IPsec

Power Parameters

• Input Current

  • 0.96 A @ 12 VDC (max.)
    0.63 A @ 12 VDC (average)
    0.33 A @ 24 VDC (average)
    0.18 A @ 48 VDC (average)

• Input Voltage

  • 12 to 48 VDC

• Power Consumption

  • 7.6 W (typ.)
    11.52 W (max.)

• Power Connector

  • Screw-locked terminal block

• Reverse Polarity Protection

  • Supported

Physical Characteristics

• Housing

  • Metal
    IP40 \t\t\tWith the rubber SIM slot cover closed.\t

• Dimensions

  • 125 x 46.2 x 100 mm (4.92 x 1.82 x 3.94 in)

• Weight

  • 610 g (1.34 lb)

• Installation

  • DIN-rail mounting
    Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature

  • -30 to 70C (-22 to 158F)

• Storage Temperature (package included)

  • -40 to 85C (-40 to 185F)

• Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Standards and Certifications

• EMC

  • EN 55032/35
    EN 61000-6-2/-6-4

• EMI

  • CISPR 22, FCC Part 15B Class A

• EMS

  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV, Signal: 2 kV
    IEC 61000-4-6 CS: 10 V; 150 kHz to 80 MHz
    IEC 61000-4-8: 30 A/m

• Freefall

  • IEC 60068-2-32

• Hazardous Locations

  • CCCEx \t\t\tAvailable in Q4, 2023.\t
    IECEx \t\t\tAvailable in Q4, 2023.\t
    ATEX \t\t\tAvailable in Q4, 2023.\t
    Class I Division 2 \t\t\tAvailable in Q4, 2023.\t

• Railway

  • EN 50121-4

• Traffic Control

  • NEMA TS2 \t\t\tAvailable in Q4, 2023.\t

• Road Vehicles

  • E mark E1 \t\t\tAvailable in Q4, 2023.\t

• Radio Frequency

  • FCC
    PTCRB
    EN 303 413

• Radio

  • NCC \t\t\tAvailable in Q4, 2023.\t
    TELEC
    RCM
    KC
    ICID
    UKCA
    Anatel \t\t\tAvailable in Q4, 2023.\t

• Carrier Approvals

  • Verizon \t\t\tAvailable in Q4, 2023.\t
    AT&T \t\t\tAvailable in Q4, 2023.\t

• Cellular Standards

  • EN 301 489-1/-19
    EN 301 489-1/-52
    EN 301511
    EN 301908-1/-2/-13

• Safety

  • UL 62368-1
    EN 62368-1

• Shock

  • IEC 60068-2-27

• Vibration

  • IEC 60068-2-6

MTBF

• Time

  • 518,722 hrs

• Standards

  • Telcordia SR332
