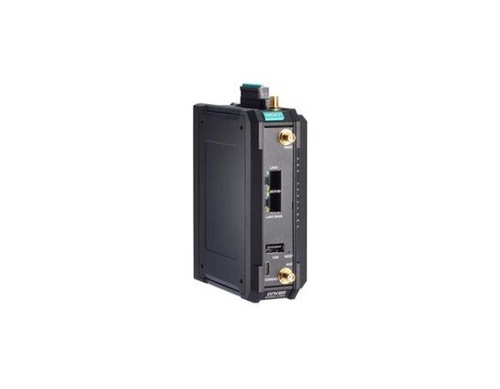

OnCell G4302-LTE4-US - Industrial LTE Cat. 4 cellular secure router, B2/B4/B5/B12/B13/B14/B17/B66, 2 10/100/1000BaseT(X) RJ45 po by MOXA
|
|
|
OnCell G4302-LTE4-US_SUMMARY.html
- Integrated LTE Cat.4 module with US/EU/APAC band support
- Power management support for wake-up time scheduling
- Cellular link redundancy with dual-SIM GuaranLink support
- Supports WAN redundancy between cellular and Ethernet
- Precise GNSS for location-based applications
- Rugged and compact design for harsh environments
- Compact size and smart LED design for easier installation and troubleshooting
- Developed according to IEC 62443-4-2 with Secure Boot
- Visualize OT security with the MXsecurity management software
|
|
|
OnCell G4302-LTE4-US_DESCRIPTION.html
OnCell G4302-LTE4-US - The OnCell G4302-LTE4 Series is
a reliable and powerful secure cellular router with global LTE coverage.
This router provides reliable data transfers from serial and Ethernet
to a cellular interface that can be easily integrated into legacy
and modern applications. WAN redundancy between the cellular and Ethernet
interfaces guarantees minimal downtime, while also providing extra
flexibility. To enhance cellular connection reliability and availability,
the OnCell G4302-LTE4 Series features GuaranLink with dual SIM cards.
Moreover, the OnCell G4302-LTE4 Series features dual power inputs,
high-level EMS, and a wide operating temperature for deployment in
demanding environments. Through the power management function, administrators
can set up schedules to fully control the OnCell G4302-LTE4 Series'
power usage and minimize power consumption when idle to save cost.
OnCell G4302-LTE4-US.html
Cellular Interface -
Cellular Standards - LTE CAT 4, HSPA, UMTS, EDGE, GPRS, GSM
-
LTE Data Rate - 20 MHz bandwidth: 150 Mbps DL, 50 Mbps UL
-
Band Options (US) - LTE B2 (1900 MHz) / B4 (1700/2100 MHz (AWS)) / B5 (850 MHz) / B12 (700 MHz) / B13 (700 MHz) / B14 (700 MHz) / B66 (1700 MHz) / B25 (1900 MHz) /B26 (850 MHz) /B71 (600 MHz)
UMTS/HSPA B2 (1900 MHz) / B4 (1700 MHz (AWS)) / B5 (850 MHz) -
No. of SIMs -
SIM Format -
Cellular Antenna Connectors Ethernet Interface -
10/100/1000BaseT(X) Ports (RJ45 connector) GNSS Interface -
GNSS Bands - GPS (1575.42 MHz)
GLONASS (1597.52 MHz) Galileo (1575.42 MHz) BeiDou (1561.098 MHz) -
GNSS Antenna Connectors Input/Output Interface -
Digital Output Channels - 1
Relay output with current carrying capacity of 1 A @ 24 VDC -
Digital Input Channels -
Digital Inputs - -30 to +3 V for state 0
+13 to +30 V for state 1 -
Buttons USB Interface -
No. of USB Ports -
USB Connector -
USB Standards Serial Interface -
No. of Ports -
Connector -
Serial Standards -
Data Bits -
Stop Bits -
Parity -
Baudrate -
Console Port - RS-232 (TxD, RxD, GND), USB type-C (115200, n, 8, 1) We recommend using the Moxa CBL-USBCF9-GY-150 console cable, which can be purchased separately.
Serial Signals -
RS-232 - TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
-
RS-422 -
RS-485-2w -
RS-485-4w Operation Modes -
Standards - Real COM mode
RFC2217 mode TCP Client mode TCP Server mode UDP mode LED Interface -
LED Indicators - PWR1, PWR2, STATE, USB, SIM1, SIM2, CELL, LTE, GNSS, SERIAL, VPN
Ethernet Software Features -
Management - GuaranLink
Power Management Back Pressure Flow Control LLDP Syslog Wireless Search Utility MXview One MXconfig MXsecurity MRC Quick Link Available in Q2, 2024. -
Broadcast Forwarding - IP directed broadcast, broadcast forwarding
-
Configuration Options - Serial Console We recommend using the Moxa CBL-USBCF9-GY-150 console cable, which can be purchased separately.
Web Console (HTTP/HTTPS) Command Line Interface (CLI) through Serial/Telnet/SSH -
Network Protocols - DDNS
DHCP Server/Client SMTP SNMPv1/v2c/v3 ARP Telnet TCP/IP UDP Remote SMS Control -
Filter - 802.1Q VLAN
Port-based VLAN -
Unicast Routing -
Multicast Routing -
Routing Redundancy -
Time Management Security Functions -
Hardware-based Security -
Password - User-level password protection
-
Authentication - Local database
RADIUS Access Control List Firewall -
Filter - DDoS
Ethernet protocols ICMP IP address MAC address Ports NAT -
Features - 1-to-1
N-to-1 PAT NAT loopback Double NAT IPsec VPN -
Authentication - MD5 and SHA (SHA-256)
RSA (key size: 1024-bit, 2048-bit) Pre-shared Key or X.509 v3 certificate -
Encryption - DES
3DES AES-128 AES-192 AES-256 -
Concurrent VPN Tunnels - Max. 15 IPsec VPN tunnels
-
Protocols Power Parameters -
Input Current - 0.96 A @ 12 VDC (max.)
0.63 A @ 12 VDC (average) 0.33 A @ 24 VDC (average) 0.18 A @ 48 VDC (average) -
Input Voltage -
Power Consumption - 7.6 W (typ.)
11.52 W (max.) -
Power Connector - Screw-locked terminal block
-
Reverse Polarity Protection Physical Characteristics -
Housing -
Dimensions - 125 x 46.2 x 100 mm (4.92 x 1.82 x 3.94 in)
-
Weight -
Installation - DIN-rail mounting
Wall mounting (with optional kit) -
IP Rating - IP40 With the rubber SIM slot cover closed.
Environmental Limits -
Operating Temperature -
Storage Temperature (package included) -
Ambient Relative Humidity - 5 to 95% (non-condensing)
Standards and Certifications -
EMC - EN 55032/35
EN 61000-6-2/-6-4 -
EMI - CISPR 22, FCC Part 15B Class A
-
EMS - IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV, Signal: 2 kV IEC 61000-4-6 CS: 10 V; 150 kHz to 80 MHz IEC 61000-4-8: 30 A/m -
Freefall -
Hazardous Locations - IECEx Available in Q2, 2024.
ATEX Available in Q2, 2024. Class I Division 2 Available in Q2, 2024. -
Railway -
Traffic Control -
Road Vehicles - E mark E1 Available in Q1, 2024.
-
Radio Frequency -
Radio - NCC
TELEC RCM KC ICID UKCA Anatel -
Carrier Approvals -
Cellular Standards - EN 301 489-1/-19
EN 301 489-1/-52 EN 301511 EN 301908-1/-2/-13 -
Safety -
Shock -
Vibration MTBF
|
|
