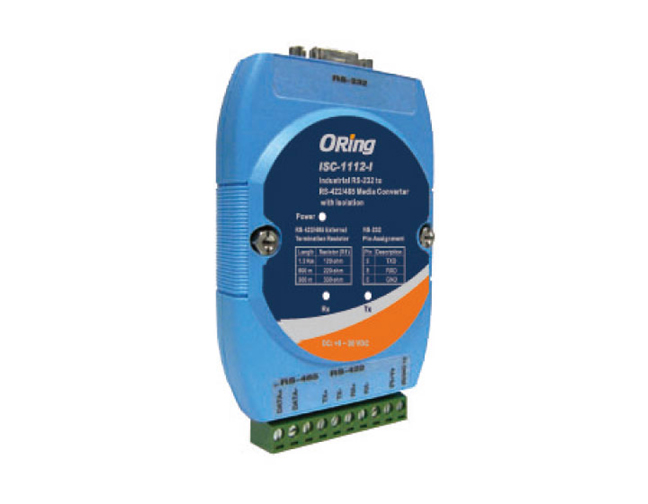

ISC-1112 series are industrial media converters provide media conversion between RS-232 and RS-422/485 interface. ISC-1112 series are ABS housing design and supporting an operating temperature of -10 to 70˚C. The RS-485 control is completely transparent to the user and software written for halfduplex operation without any modification. ISC-1112-I opto-isolators provide 3000VDC of isolation to protect the host computer from destructive voltage spikes. Therefore, the ISC-1112 series is reliable serial media converter and can satisfy most demand of operating environment.
| |
|
|
| Physical Ports |
|
|
| RS-232 Connector |
DB9 (Female) |
| RS-422/485 Connector |
10-pin terminal block |
| RS-232 Signals |
TX, RX, GND |
| RS-422/485 Signals |
RS-422 : TX+, TX-, RX+, RX-
RS-485 : Data+, Data- |
| Baud Rate |
300 to 115.2Kbps |
| Data bit |
5, 6, 7, 8 |
| Stop bit |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
XON/XOFF (software) Auto Hardware Direction Control for RS-485 |
| Serial Isolation |
3000VDC |
| LED Indicators |
|
|
| Power Indicator |
Green : Power LED x 1 |
| TxD Indicator |
Green LED x 1 |
| RxD Indicator |
Red LED x 1 |
| Power |
|
|
| Redundant Input Power |
+9 ~ 30 VDC power inputs on 10-pin terminal block |
| Power Consumption (Typ.) |
2.2 Watts |
| Physical Characteristics |
|
|
| Enclosure |
IP-30 |
| Dimensions (W x D x H) |
71.2(W) x 25.3(D) x 100.6(H) mm (2.8x1x3.96 inch.) |
| Weight (g) |
133 g |
|
| Environmental |
|
|
| Storage Temperature |
-25 to 85°C (-13 to 185°F) |
| Operating Temperature |
-10 to 70°C (14 to 158°F) |
| Operating Humidity |
5% to 95% Non-condensing |
|
| Regulatory Approvals |
|
|
| EMI |
FCC Part 15, CISPR (EN55022) class A, |
| EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-32 |
| Vibration |
IEC60068-2-6 |
| Safety |
EN60950-1 |
|
