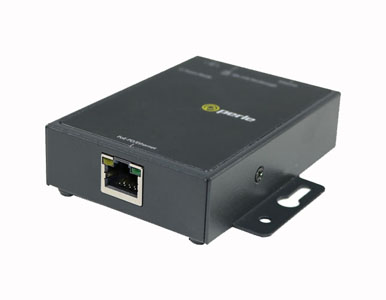

06005324 eR-S1110 - Gigabit Ethernet Repeater and Rate Converter - 2 x 10/100/1000Base-T (RJ45) ports. by PERLE

06005324 eR-S1110 - Gigabit Ethernet Repeater and Rate Converter - 2 x 10/100/1000Base-T (RJ45) ports.
by PERLE

Write a review Write a review
  • Extend network distances an additional 100m / 328ft over 4-wire twisted pair
  • Rate conversion between 10/100/1000 Mbps network links
  • Transparent operation for all Ethernet protocols including 802.1Q VLAN packets and IP video compression schemes
  • Advanced features: Link Pass-Through, Interlink Fault Feedback, Plug and Play, Auto-MDIX and Loopback
  • Operates as a Powered Device (PD) under IEEE 802.3af so it can be used with a PoE Injector or Switch to eliminate the need to install AC power wiring



Mfg SKU # : 06005324
List Price : $271.00
Our Price : $231.00
Stock : 5
Quantity :

When you need to extend Ethernet services beyond the general IEEE 802.3 limits of 100m / 328ft, and new fiber cabling is cost prohibitive, the eR-S1110 Ethernet Repeater, 06005324, is the perfect solution. Transparently extend 10/100/1000 Ethernet connections across twisted pair ( CAT5/6/7 ) to extend your network reach an additional 100m (328ft).

This simple and effective point to point Ethernet Repeater and Rate Converter is perfect for commercial buildings, residential units, hospitality environments or for connecting a remote office or private-network backbone to a corporate LAN. Use it anywhere you need Ethernet communication links between separated LANs or LAN devices (i.e. PCs, digital sensors, VoIP phones, WiFi APs, IP cameras and more).

The eR-S1110 Repeater can also operate as a Powered Device (PD) under IEEE 802.3af supporting end-span and mid-span power sources (PSE). This makes it ideal for organizations that need to deploy equipment in locations that are difficult or too costly to have separate AC power installed such as ceilings, walls and kiosks.

Perle’s advanced features such as Link Pass-Through, Interlink Fault Feedback, and Loopback allow network administrators to “see everything” for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle Ethernet Repeatersthe smart choice for IT professionals.

eR-S1110 Ethernet Repeater Features

Extend Ethernet over twisted pair

Extend an Ethernet link over category 5e, 6 and 7 cabling up to an additional 100m / 328ft

Rate Conversion

The eR-S1110 can automatically detect Ethernet port speed and do a rate conversion between the two ports if the Ethernet speed is different.

Plug and Play operation

Perle Ethernet Repeaters will automatically configure your Ethernet connection. Once a connection is made, both ends will automatically adjust relevant Ethernet parameters to establish connection.

Ethernet Link Pass-Through

With Link Pass-Through the state of the 10/100/1000Base-T Ethernet connection is “passed through” the Ethernet link to the 10/100/1000Base-T Ethernet connection on its remote peer. A managed switch on the remote end can then report the state (link up or link down) to its network management system so that any errors can be detected and recovered early.

Competitive Ethernet repeaters without this feature will never detect or report any error conditions.

Auto-Negotiation

The Ethernet Repeater supports auto negotiation on the 10/100/1000Base-T interface.

Auto-MDIX

Auto-MDIX (Automatic Medium-Dependent Interface crossover) detects the signaling on the 10/100/1000 Ethernet RJ45 interface and determines the type of cable connected (straight-through or crossover) and automatically adopts a compatible pinout.

Jumbo Packets Transparent to Jumbo Frames with a maximum MTU size of 10,024 bytes

VLAN

Transparent to tagged VLAN ( 802.1Q ) packets.

Transparent to IP Video compression protocols

Fully transparent to such IP video compression schemes such as MPEG-4, H.264 and MJPEG.

Power Strain Relief strap

A strain relief strap is provided to ensure a solid and secure power connection to the Ethernet Repeater. Ideal for areas that may be exposed to vibration.



Ethernet eR-S1110
Port 2 ports RJ45 – 10/100/1000 Base-T - Shielded
Auto-MDIX Auto-MDIX enables proper operation with either straight-through or crossover cabling
Distance Distance up to 100 meters (328 feet) as per IEEE 802.3
Maximum Frame Size 10240 bytes
Power
Input Supply Voltage 9 - 30 vDC, unregulated (12 vDC Nominal)
POE As per 802.3af PD specifications (Port #1). PD ( Class 0 or 4 device )
Current 0.18 amps
Power Consumption 2.2 watts
Power Connectors 5.5mm x 9.5mm x 2.1mm barrel socket
Back of product eR-S1110 Ethernet RepeaterBack
Power Adapter
Universal AC/DC adapter 100-240v AC, regulated 12V DC adapter included
Indicators
Power This green LED is turned on when power is applied to the Ethernet Repeater. Otherwise it is off. The LED will blink when Hardware Fault.
ETH Indicates link status and activity on Ethernet port(s).
G- on
Y - off
On - Link at Gig
Flashing - Link and Activity
G- on
Y - on
On (both) - Link at 100M
Flashing - Link and Activity
G- off
Y - on
On - Link at 10M
Flashing - Link and Activity
Slow Flashing - Alternate port link is down
but this port is good.
Switches
Link Mode Standard (Default)– The 10/100/1000 Base-T link remains active independent of the state of the Ethernet link on its remote peer.
Link Pass-Through - the state of the 10/100/1000 Base-T Ethernet connection is "passed through" or propagated to the 10/100/1000 Base-T Ethernet link on its remote Ethernet Repeater peer. This enables a managed switch to report the state of the remote device to its network management system.
Environmental Specifications
Operating Temperature -10 C to 50 C (14 F to 122 F)
Storage Temperature -25 C to 70 C (-13 F to 158 F)
Operating Humidity 5% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Operating Altitude Up to 3,048 meters (10,000 feet)
Heat Output ( BTU/HR ) 7.5
MTBF (Hours)* Without power adaptor: 613,826
Mounting
Wall or Panel Included
Din Rail Kit Optional
Product Weight and Dimensions
Weight 0.23 kg / 0.51 lbs
Dimensions 90 x 64 x 22 mm / 3.54 x 2.52 0.87 inches
Packaging
Shipping Weight 0.45 kg / 1 lbs
Shipping Dimensions 260 x 170 x 70 mm / 10 x 6.7 x 2.76 inches
Regulatory Approvals
Emissions FCC 47 Part 15 Class A
EN55032 (CISPR32)
EN61000-6-4
EN55024 -CISRP24
EN6100-4-2 (ESD): Contact
EN61000-4-3 (RS)
EN610004-4 (EFT)
EN61000-4-5 (Surge):
EN61000-4-6 (CS)
EN 61000-4-8 (PFMF)
EN 61000-4-11
EN61000-4-16
Electrical Safety UL/ULC/EN 62368-1
CE
Environmental Reach, RoHS and WEEE Compliant
Other ECCN: 5A991
HTSUS Number: 8517.62.0050
Perle Lifetime warranty

*Calculation model based on MIL-HDBK-217-FN2 @ 30 °C
