TP-VC277-220VAC - 277VAC to 220VAC Voltage Converter, 400W, Short and Overcurrent Protection. by Tycon Systems

TP-VC277-220VAC - 277VAC to 220VAC Voltage Converter, 400W, Short and Overcurrent Protection.
by Tycon Systems

Write a review Write a review
  • 400W Total Power
  • Converts 277VAC to 220VAC
  • Integrated Circuit Breaker for Short and Overload Protection
  • Wide Temperature Operation



Mfg SKU # : TP-VC277-220VAC
List Price : $199.95
Our Price : $196.00
Stock : Call for Availability
Quantity :

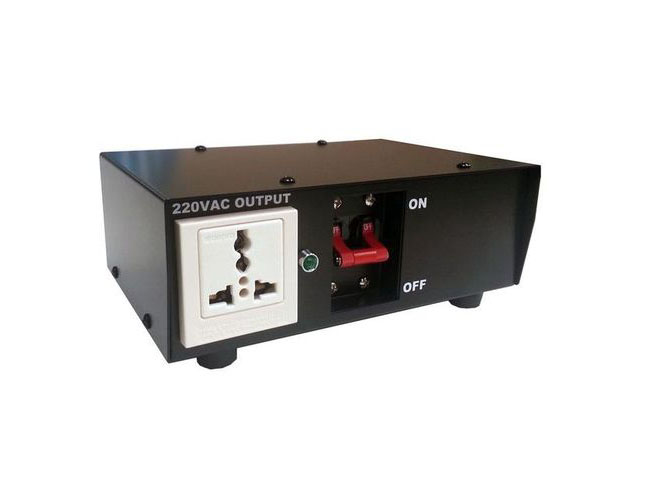

The TP-VC277-220VAC voltage converter changes 277VAC to 220VAC 400W.

277VAC is a voltage commonly found on light poles, including light poles on streets and parking lots. This voltage is typically too high to run common equipment such as outdoor UPS systems, security cameras and wireless equipment. By converting the voltage to 220VAC, most common equipment can be powered. The TP-VC277-220VAC provides a respectable 400W output.

The voltage converter has an integrated circuit breaker to protect against short circuits and other current overloads. It operates over a wide temperature range making it suitable for industrial applications.

The TP-VC277-220VAC is compatible with Tycons TP-BC series of battery chargers. It is also compatible with Tycon’s 300W Outdoor UPS Systems like UPS-ST12-200, UPS-ST24-100 or UPS-ST48-50.

Input Voltage 277 - 280VAC 50/60Hz
Input Current 1.5A @ 277VAC at Full Load
Input Connector Wire Terminal
Output Voltage 220VAC 50/60Hz
Output Power 400W
Minimum Output Current 0A
Maximum Output Current 1. 8 A
Output Connector Universal AC Socket
Input Breaker Rating 4.5A
Load Regulation 5%
Efficiency >97%
Operating Temperature - 20 to +60C ( - 4 to +140 °F)
Operating Humidity (RH) Up to 90% (non condensing)
Storage Temperature - 25 to +85°C ( - 13 to +185°F)
Storage Humidity Up to 90% (non - condensing)
Dimensions (LxWxH) 197 x 12 5 x 67 mm ( 7.8 x 4.9 x 2. 6 ”)
Weight 2. 5 kg (5. 6 l b)
