Tycon Systems UPS-ST48-50 - *Discontinued* - UPSPro 288W 2400VA, 48VDC Regulated Output, 120/240VAC Input, Steel Encl, 48V 51Ah
by TYCON SYSTEMS
|
|
|
|
- Up to 192 W Maximum Continuous Output
- 12VDC, 24VDC and 48VDC systems
- Isolates Equipment from Power Line Surges
- High Performance GEL Sealed Lead Acid Batteries
- Choice of 51 Ah (600VA) to 204Ah (2400VA) Battery Capacity
- Operating Temperature - 30C to +60C
- Weatherproof Nema 4X / IP65, UV Resistant, Locking Outdoor Enclosure
|
|
|
UPS-ST48-50
The UPSPro™ series outdoor enclosures are designed for applications that require a backup power source in order to maintain uninterrupted power to sensitive equipment. The enclosure is powered by directly connecting to a 120/240VAC power source.
Any connected equipment operates from battery power so it is isolated from damaging power line surges. The batteries are continuously charged via the advanced smart battery charger. The charge controller has a regulated output. The load will be turned off when the battery voltage gets too low, protecting the batteries from over-discharge. Switching from grid to battery power and back is seamless and automatic and will not affect the connected equipment.

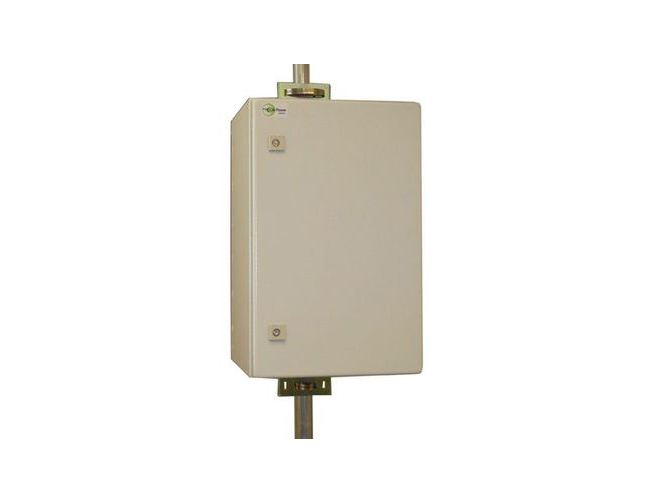

The unit is complete with steel enclosure with pole/wall mount bracket, batteries, charge controller and cabling. There is a generous amount of space reserved inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc.
The UPSPro system is compatible with Tycon's TPSK solar kits and Wind Turbines if a customer wants to add alternate power sources to extend backup times.
| Load Voltage |
48V +/ - 0.5V |
| Maximum Load Output |
4 A (192W) |
| Minimum Load Output |
1A |
| Available Storage Capacities |
4 battery 51Ah 2400VA |
| Battery Type |
Non - Spillable Valve Regulated Sealed Lead Acid / GEL |
| Battery Life (Typical) |
5 Years |
| Charge Voltage |
WET Equalize = 5 8V, Float = 53 V GEL Equalize = 56.8 , Float = 54 V |
| Maximum Charge Current |
6A |
| Over - Discharge Protection |
40 V Load Off 51 V Load On |
| Other Protection |
Short C ircuit, Reverse Battery , Over Voltage |
| VAC Input +/ - 10% |
Selector Switch 120VAC / 240VAC , 50/60Hz |
| VAC Input Current |
3.5A @ 115VAC / 1.8A @ 240VAC |
| Fuse |
6A internal |
| Self Consumption |
<5W |
| Enclosure Type |
Powder Coated Steel, Security Locks, Pole (2” to 4”) or Wall Mount |
| Enclosure External Size |
24 x 15 x 14" (610 x 381 x 356mm) |
| Enclosure Internal Size |
23 x 14 x 12" (584 x 356 x 305mm) |
| Operating Temperature |
- 30°C to +60°C ( - 22°F to 140°F) |
| System Weight ( no batteries) |
55lb (25kg) |
| Battery Weight |
37lb (17kg) each x 4 |
|
|
|
|
