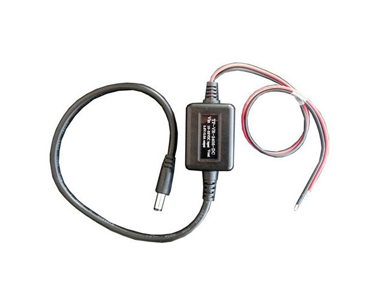

Tycon Systems TP-VR-2405-DC - Voltage Regulator 10-32VDC input, 5V @ 3A regulated output with 5.5/2.1mm DC Barrel Connector. 15W
by TYCON SYSTEMS
|
|
|
|
- Compact Size
- High Output , Short Circuit Protected
- Sealed Design
- 12" 18AWG Input Lead Wires
- 14 ” 18AWG Output DC Connector Wire
|
|
|
The TP-VR-2405-DC is a 15W voltage converter/regulator which accepts an input of 10VDC to 32VDC and provides a regulated output of 5VDC @ 3A 15W. These units are perfect for providing stable regulated 5VDC voltage from 12VDC or 24VDC battery banks. Excellent for vehicular and remote power applications.
| DC Input Voltage Range |
10V to 32VDC |
| DC Voltage Output |
5VDC @ 3A |
| Maximum Power Dissipation |
15W |
| Efficiency |
80% |
| Load / Line Regulation |
5% / 1% |
| Ripple / Noise |
2% / 5% |
| Wire Gauge |
18AWG |
| Lead Wire Length |
12 " 2 Wire I nput , 1 4 ” DC Output |
| DC Connector |
5.5/2.1mm DC Plug Barrel Connector |
| Operating Temperature |
- 40°F to 149°F ( - 40°C to +65°C) |
| Operating Humidity |
0 to 99% RH |
| Size |
2.75 x 1.25 x 1” (70x32x25mm) |
| Weight |
1.5oz (43g) |
|
|
|
|
