Tycon Systems TP-VRHP-2456-5 - New Part # *TP-VRHP-2456-250*
by TYCON SYSTEMS
|
|
|
|
- High Output , Short Circuit Protected
- Metal Enclosure , DIN rail mounting
- Industrial Temperature Operation
- Isolated Input to Output
| Mfg SKU # : | TP-VRHP-2456-5 |
|
|
|

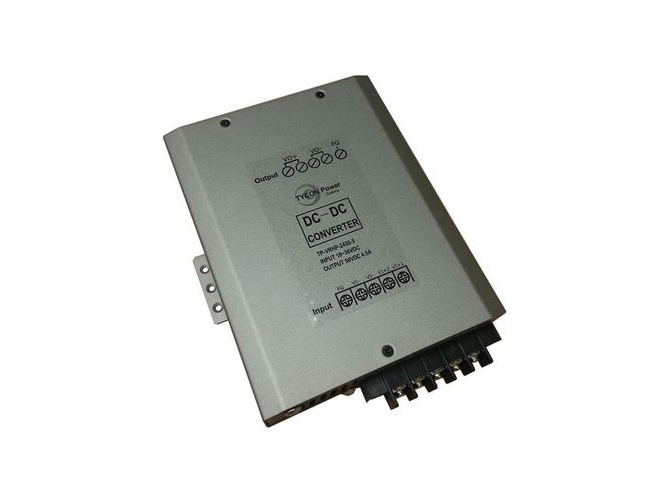

The TP-VRHP-2456-5 is a high power 250W voltage converter/regulator which accepts an input of plus or minus 18VDC to 36VDC and provides a regulated output of 56VDC @ 4.46A 250W. These units are perfect for providing 56VDC voltage from 24VDC battery banks. Input and outputs are wire terminals for wire up to 12AWG. Operates from -30 to +65 deg C.
| DC Input Voltage Range |
+/ - 18 to 36VDC |
| DC Voltage Output |
56VDC @ 4.46A |
| Maximum Power |
250W |
| Efficiency |
>83% |
| Load / Line Regulation |
5% / 1% |
| Ripple / Noise |
2% / 5% |
| Isolation Voltage / Ohms |
1500VDC Min. / 100M Ohms Min |
| Wire Gauge |
12AWG Max |
| Protections |
Short Circuit, Overvoltage, Overload |
| Operating Temperature |
- 22°F to 149°F ( - 30°C to +65°C) |
| Operating Humidity |
0 to 90% RH |
| Size |
5.9 x 7.4 x 1.7” (150x187x43.6mm) |
| Weight |
2.6lbs (1.2 kg) |
| Warranty |
2 Year |
|
|
|
|
