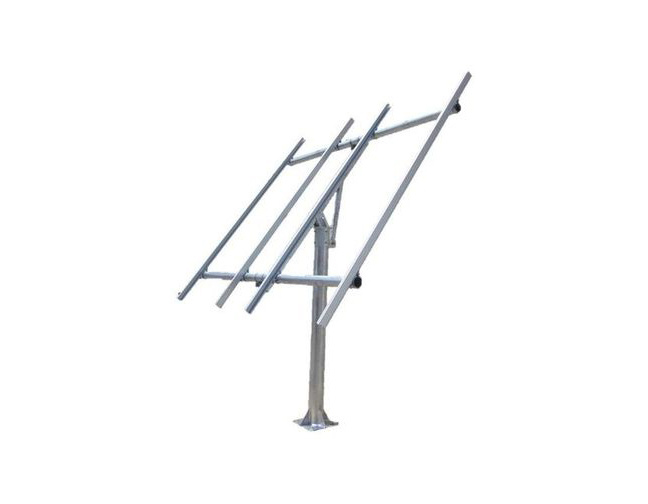

TPSM-250x4-TP - Complete Top of Pole mount for two or four 250W solar panels.Includes flange base pole and anchors. by Tycon Systems

TPSM-250x4-TP - Complete Top of Pole mount for two or four 250W solar panels.Includes flange base pole and anchors.
by Tycon Systems

Write a review
  • All components required to mount 2 or 4 x 60 cell modules , nominally 230 through 280 watt modules
  • Stainless Steel, Galvanized Steel, and Anodized Aluminum construction
  • Includes integrated equipment ground solution
  • Tilts ranging from 10 to 65 degrees
  • 45 inches clearance to front of array for snow shedding
  • Includes flanged vertical post and anchors
  • Ships in single crate



Mfg SKU # : TPSM-250x4-TP
List Price : $849.95
Our Price : $833.00
In Stock :19
Quantity :

Tycon Power Systems versatile Pole Top solution is designed to satisfy the most common small-medium solar power needs, particularly in the wireless and security infrastructure markets. The mount assembles easily and can be used to construct 500W (2 x 250W solar panels) or 1000W (4 x 250W solar panels) stations, whether used to connect directly to a grid with grid tied inverter(s) to offset power usage, or charge a battery bank for remote applications. With modules commonly available up to 280W+, even greater power production can be achieved in a single installation. Made with galvanized steel, anodized aluminum rails and stainless steel hardware, the structure is designed for years of durability in harsh environments. With the array centrally balanced on the pole top, manual seasonal orientation adjustments can be made easily. When comparing pole mounts be sure to remember that the Tycon Pole top includes the mounting pole and anchors in the price of the system.

Pole height 1829mm ( 72 ” )
Max array height (back of array at 65deg ) 3048mm (120 ”)
Min array height (front of array at 65deg ) 1143mm (45”)
Total module rail length 2083mm (82”)
Structural cross tube total length 2 module : 1499mm (59”) 4 module: 2597mm (102.25”)
Array Dimensions Width: 3367mm (132.5”) Height: 2017mm (79.4”)
Tilt 10 – 65 degrees
Mounting method anchor bolts in concrete footing (Anchors included, concrete provided by installer)
Max wind speed 100 mph
International Compliant Standards GB50009 - 2001 GB50011 - 2001 GB/T 13912 - 92 GBT 14846 - 2008 GB - T 6892 - 2006 GB50429 - 2007 GB50017 - 2003 AS NZS 1170 ASCE/SEI 7 - 05
Crate Outside Dimensions 2007 x 540 x 483 mm ( 79 x 21.25 x 19 ”)
Shipping Weight 115k g ( 253lbs )
Warranty 2 year
