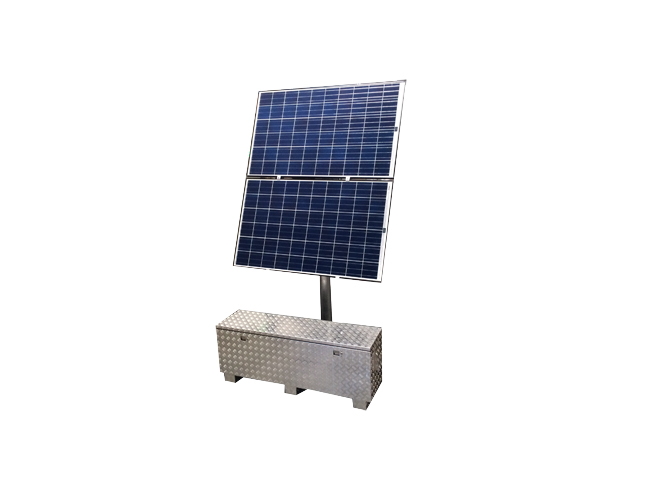

RPAL48-720-720 - RemotePro 48V 100W Remote Power System,720W Solar Panel & Mount, Aluminum Enclosure, 48V 720Ah Battery, MPPT,
by Tycon Systems
|
|
|
|
- Complete 720W Remote Power Solutions for Off-Grid Operation.
- Supports up to 157W continuous power with 6hrs peak sun.
- Weatherproof Outdoor Enclosures with up to 720Ah Battery
- Expandable Ground Mounted Solar Mount
- High Performance Sealed Lead Acid AGM Batteries
- MPPT Solar Charge Controllers with RS485 Interface
- Thermostatically Controlled Ventilation
Applications
- Wireless Base Stations
- Remote Lighting
- Surveillance Cameras
- Wireless Bridge and Repeaters
- Off-Grid Power
- Backup Power
|
|
|
RPAL48-720-720, the RemotePro 720W Series outdoor power systems are designed for applications that require a primary off-grid power source to run various equipment. The vented weatherproof enclosures have generous space available inside for mounting customer equipment. Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates.
The systems have a temperature compensated MPPT solar charge controllers with 7 port Gigabit 802.3at / 24V Passive PoE switch with management and remote monitoring. The solar controllers turn off the load automatically if the battery voltage drops too low, in order to preserve battery life. The load turns on automatically once the battery voltage recovers.
The outdoor enclosures are diamond plate aluminum ground mount. They are hinged and gasket sealed with locking closures. They have four cable gland ports for CAT5/6 cable, antenna cables/connectors or other cabling. Included is a thermostatically controlled fan assembly which turns on automatically when the temperature exceeds 45°C.
The high quality solar panels have a 25 year power output guarantee and a +5W output tolerance.
Batteries are a Non-Spillable Valve Regulated Sealed Lead Acid Absorbed Glass Matt (AGM) type which have excellent temperature and deep discharge performance. Expected battery life exceeds 5 years.
The systems come with all cabling required to connect the batteries to the controller and 20’ outdoor rated cable to connect the solar panels to the controller.
The solar mount includes the concrete anchors that are necessary for mounting. Tilt adjustment range is 10-65 deg and can be adjusted by one person. The mount can be expanded to hold 4 panels (Kit # TPSM-350x4-AdapterKit) or 6 panels (Kit# TPSM-350x6-AdapterKit). This is useful if more solar capacity is needed in the future.
|
48V MPPT/PoE Switch |
Controller Type |
Manageable MPPT with 7 port GigE PoE Switch. Remote Monitoring. |
Controller Outputs |
4 Port 802.3at or 24V Passive, 3 Port 24/48V 30W Passive PoE. Aux Port 24/48V 2.5A |
Bulk Charge |
57.6V @ 48V Battery |
Float Charge |
55.2V @ 48V Battery |
Over-discharge protection |
44.4V @ 48V Battery (user settable) |
Over-discharge recovery volts |
50.4V @ 48V Battery (User Settable) |
Controller Self Consumption |
<3.5W |
|
|
RPAL |
Battery Type |
Maintenance Free, Non-Spillable, Valve Regulated, Sealed, Pure Lead Carbon AGM |
Battery Life |
5+ years |
Enclosure Type |
ENC-AL-65x18x20 Ground Mount, Diamond Plate Aluminum |
Enclosure Size |
65 x 18 x 20” (1651 x 457 x 508mm) |
Internal Mount Features |
DIN Rail/Flat Plate Mounting Brackets Welded to Door and Back |
Solar Panel Dims (L x W x T) |
720W Solar Array 78 x 77 x 1.6” (1980 x 1956 x 40mm) |
Operating Temperature |
-30°C to +60°C (-22°F to 140°F) |
System Weight (no batteries) |
394 lb (179 kg) |
Battery Weight |
127 lb (57.6 kg) (Each 180Ah Battery) |
Wind Speed Rating |
90MPH |
|
|
|
