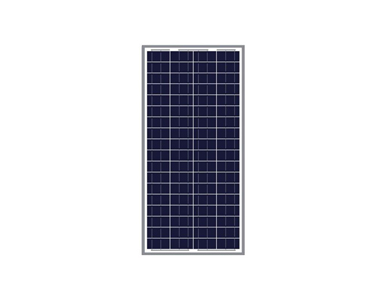

Tycon TPS-24-50W - 24V 50W Solar Panel w/ 25 Yr Output Warranty, Excellent Low Light Perf, High Transparency Low Iron Tempered G by TYCON SYSTEMS

Tycon TPS-24-50W - 24V 50W Solar Panel w/ 25 Yr Output Warranty, Excellent Low Light Perf, High Transparency Low Iron Tempered G
by TYCON SYSTEMS

Write a review Write a review
  • Excellent Low Light Performance
  • Extremely Reliable. 5 Year Product Warranty. 25 year Solar Cell Output Warranty.
  • High Efficiency with High Transparency Low Iron Tempered Glass Cover. Rugged Extruded Anodized Aluminum Frame
  • Sealed for Protection from Harsh Environments
  • 36” Output Cables with PV Solar Connectors for Easy Connections
Mfg SKU # : TPS-24-50W
Our Price : $129.95
Stock : 185
Quantity :

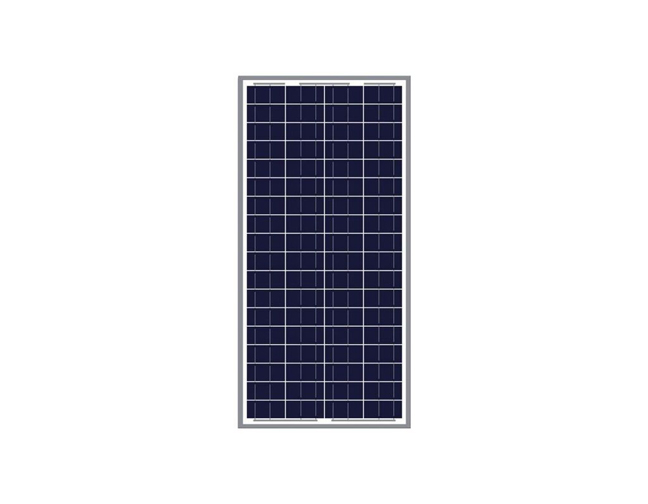

Tycon TPS-24-50W

The TPS-24-50W utilizes advanced MBB half-cell technology, delivering more uniform current collection and significantly reducing internal heat loss for improved reliability and efficiency. Its 36 1/3-cell monocrystalline N-type design enables higher output power, with module performance reaching up to 50W, even in compact formats. Enhanced lowlight response ensures superior energy production during mornings, evenings, and cloudy conditions. Built with N-type solar cells, the module naturally exhibits very low LID (Light-Induced Degradation) and excellent resistance to PID (Potential-Induced Degradation), maintaining long-term performance and maximizing power generation. These combined features make the module highly durable, efficient, and optimized for consistent energy yield in a wide range of environmental conditions

Specifications

  • Maximum power: 50W
  • Voltage at Pmax (Vmp): 42.48V
  • Current at Pmax (Imp): 1.18A
  • Open circuit voltage (Voc): 51.11V
  • Short circuit current (Isc): 1.24A
  • Short circuit I temp coeff: +0.05% / ºC
  • Open circuit V temp coeff: -0.28% / ºC
  • Output power temp coeff: -0.34% / ºC
  • Wind survivability: 201 kph (125mph)
  • Hailstone survivability: 1" @ 51mph
  • Operating temp: -40~85ºC
  • Module efficiency: 19.9%
  • PV cable length with PV connectors: 914mm (36”)
  • Size: 795 x 360 x 30mm (31.3 x 14.2 x 1.18”)
