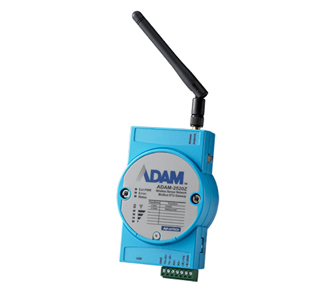

Advantech’s Wireless I/O Modules, the ADAM-2000 series, are revolutionary products for data acquisition. Based on the IEEE 802.15.4 wireless standard, networks can be easily deployed and extended. Moreover, low rates and low duty cycles make it possible for them to act as standalone devices, providing cost-effective distributed I/O solutions. With the popular industrial communication protocol Modbus RTU, Our Wireless I/O Modules, ADAM-2000 series products can be adapted into any SCADA or industrial system with Advantech products, such as IPCs, ADAM, EKI, or WebAccess.
Wireless Communication
- IEEE Standard: IEEE 802.15.4
- Modulation Type: DSSS (OQPSK)
- Frequency Band: ISM 2.4 GHz (2.4 GHz ~ 2.4835 GHz)
- Channels: 11 - 26
- RF Data Rate: 250 Kbps
- Transmit Power Typ.: 19 ± 1 dBm
- Receiver Sensitivity: -97 dBm
- Topology: Star / Tree / Mesh
- Outdoor Range: 1000 m with line of sight (with 2 dBi Antenna)
- Network Capacity: 32 nodes (Routers & End Devices)*
*Based on user's configuration
- Range Extenders: Maximum 5 Hops
- Function: Coordinator
General
- Connectors: 1 x plug-in terminal block (#14 ~ 22 AWG)
1 x USB-type A connector (type A to B cable provided)
- Protocol: Modbus RTU
- Power Input: Unregulated 10 ~ 30 VDC
- Battery Input: 2 x AA Alkaline
- Power Consumption: 0.8 W @ 24 VDC
0.5 W @ 5 VDC (USB)
0.3 W @ 3 VDC (Battery AA * 2)
Environment
- Operating Temperature
External Power: -20°C ~ 70°C (-4°F ~ 157.9°F)
Battery Power: 0°C ~ 50°C (32°F ~ 122°F)
- Storage Temperature: -40°C~ 85°C (-40°F ~ 184°F)
- Operating Humidity: 20~95% RH
- Storage Humidity: 0~95% RH
