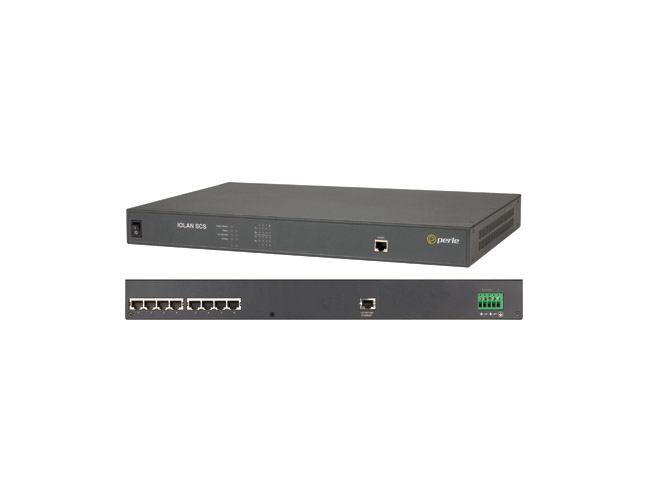

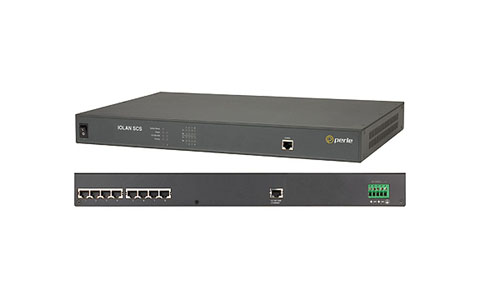

04030920 - IOLAN SCS8C DC Secure Console Server: 8 x RJ45 RS232 ports with Cisco pinout
by PERLE

IOLAN SCS Console Servers have a truly fault tolerant design to minimize downtime and provide reliable, secure remote device management. With built-in dual Ethernet and Redundant Path technology the IOLAN SCS provides assured serial console port access, offering the most reliable solution for managing data center and remote branch equipment… all at the best price performance.

Why IOLAN SCS Console Servers are the preferred choice:

• High performance 400 MHz, 750 MIPS, 32 bit processor with integrated hardware encryption processor for the best throughput
• Clustering – Provides a single view of all out of band console ports. Ideal for large data centers
• Intelligent Power cycling of equipment with Perle Remote Power Switches
• Next Generation IP support (IPv6) for investment protection and network compatibility
• Primary/Backup host functionality enables automatic connections to alternate hosts should the primary TCP connection go down
• EasyPort Web – Access equipment serial console ports by using your java-enabled Internet browser
• FIPS 140-2 – Cryptographic modules meet US Government NIST compliancy
• Dynamic DNS – Easy console management access from anywhere on the Internet
• Java-free browser access to remote serial console ports via Telnet and SSH
Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear
• Lifetime warranty – best investment protection available

Secure Serial Console Management

IOLAN SCS Console Servers enable administrators to securely access remote serial console ports on equipment such as PBX, servers, routers, network storage equipment and security appliances through an IP network. Data management information is protected through standard encryption tools such as Secure Shell (SSH) and Secure Sockets Layer (SSL). Access by authorized users is assured via authentication schemes such as RADIUS, TACACS+, LDAP, Kerberos, NIS and RSA Security’s SecurID tokens.

By using encryption technologies, an IOLAN Console Server protects sensitive and confidential data before being sent across a corporate Intranet or public Internet. For compatibility with peer encryption devices, all of the major encryption ciphers such as AES, 3DES, RC4, RC2 and CAST128 are fully supported.

Recognized as the most secure method for communicating to remote private networks over the Internet, the IPSec standard provides robust authentication and encryption of IP packets at the network layer of the OSI model. As a standard it is ideal for multi-vendor interoperation within a network, providing flexibility and the ability to match the right solution for a particular application.

High Availability Access

The IOLAN SCS has built-in fault tolerant capabilities to ensure secure and reliable access for managing important mission critical equipment. Dual Ethernet interfaces on the IOLAN SCS provide redundant network paths while dual AC power supply models ensure that console management is available even if the primary AC power source fails. For remote administrators that require access from home, on the road or in the event of a total network failure, an optional IOLAN V.92 modem card delivers a solid, integrated solution with direct phone line attachment via its onboard RJ11 jack.

Protection against electrostatic discharges and power surges is provided with robust 15Kv ESD protection circuitry on each serial port.

Advanced IP Technology

With support for Next Generation IP (IPv6) the IOLAN range provides organizations with investment protection to meet this rapidly growing standard.

Demand for IPv6, which is compatible with IPv4 addressing schemes, is driven by the need for more IP address. With the implementation and rollout of advanced cellular networks, a robust method is needed to handle the huge influx of new IP addressable devices on the Internet. In fact, the US Department of Defense has mandated that all equipment purchased be IPv6 compatible. In addition, all major Operating Systems such as Windows, Linux, Unix and Solaris, as well as routers, have built-in support for IPv6.

It is therefore important for end users and integrators to select networking equipment that incorporates the IPv6 standard. The IOLAN line with support for IPv6 already built in, is the best choice in serial to Ethernet technology.

Hardware Specifications - IOLAN SCS Fault Tolerant 48v DC Models

	IOLAN SCS8C DC
Processor	MPC8349E, 400 Mhz, 750 MIPS
Memory
RAM MB	64
Flash MB	16
Interface Ports
Number of Serial Ports	8
Serial Port Interfase	RS232 DTE on RJ45
Sun / Solaris	Sun / Oracle ‘Solaris' Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime
Serial Port Speeds	50bps to 230Kbps with customizable baud rate support
Data Bits	5,6,7,8, 9-bit protocol support
Parity	Odd, Even, Mark, Space, None
Flow Control	Hardware, Software, Both, None
Serial Port Protection	15Kv Electrostatic Discharge Protection ( ESD )
Local Console Port	RS232 on RJ45 with DB9 adapter ( provided )
Network	10/100/1000-base TX Ethernet RJ45
	Software selectable Ethernet speed 10/100/1000, Auto
	Software selectable Half/Full/Auto duplex
Ethernet Isolation	1.5Kv Magnetic Isolation
Integrated Modem	Integrated V.92 modem - RJ11 jack
Integrated Modem	Optional V.92 modem card available – RJ11 jack
Integrated Wireless	Optional PC Adapter Card for integration of 3rd party wireless PCMCIA cellular cards (GSM/GPRS/3G)
Fiber Support	Perle supports 3rd party Gigabit Fiber Cards via the standard PCI Interface Slot. Alternatively, connect a Perle Standalone Media Converter to the IOLAN SCS Ethernet port for Fiber to Ethernet conversion.
Power
Power Supply	Dual Feed -48v DC A and B Input
Nominal Input Voltage	48 VDC
Input Voltage Range	36-72 VDC
Current Consumption @ 36v ( Amps )	0.25
Current Consumption @ 48v ( Amps )	0.19
Current Consumption @ 72v ( Amps )	0.13
Typical Power Consumption ( Watts )	9
Power Line Protection	Fast transients: 1 KV (EN61000-4-4 Criteria B)
	Surge: 2KV (EN61000-4-5 common mode), 1KV (EN61000-4-5 differential and common modes)
Indicators
LEDs	Power
	System Ready
	Network Link activity
	Serial: Transmit and Receive data per port
Environmental Specifications
Heat Output ( BTU/HR )	31
MTBF ( Hours )*	118622
Operating Temperature	0C to 55C, 32F to 131F
Storage Temperature	-40C to 85C, -40F to 185F
Humidity	5 to 95% (non condensing) for both storage and operation.
Case	SECC Zinc plated sheet metal (1 mm)
Ingress Protection Rating	IP30
Mounting	1U - 19" rack, front and rear mounting hardware included
Product Weight and Dimensions
Weight	3.0 kg
Dimensions	26.4 x 43.4 x 4.4 (cm), 10.38 x 17.1 x 1.75 (in)
Packaging
Shipping Dimensions	59 x 36 x 9cm
Shipping Weight	4.0 kg
Regulatory Approvals
Emissions	FCC Part 15, Subpart B, Class A
	CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A
	ICES-003, Issue 4, February 2004 (Canada)
	CISPR 32:2015/EN 55032:2015 (Class A)
	EN61000-3-2 : 2010, Limits for Harmonic Current Emissions
	EN61000-3-3 : 2010, Limits of Voltage Fluctuations and Flicker
Immunity	CISPR 24:2010/EN 55024:2010
	EN61000-4-2: Electrostatic Discharge
	EN61000-4-3: RF Electromagnetic Field Modulated
	EN61000-4-4: Fast Transients
	EN61000-4-5: Surge
	EN61000-4-6: RF Continuous Conducted
	EN61000-4-8: Power-Frequency Magnetic Field
	EN61000-4-11: Voltage Dips and Voltage Interruptions
Safety	IEC 60950-1(ed 2); am1, am2 and EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
	CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1,  First Edition April 1st 2003 (Recognized Component)
Other	Reach, RoHS and WEEE Compliant Directive 2011/65/EU restriction of the use of certain hazardous substances in electrical and electronic equipment and meets the following standard:: EN 50581:2012
	CCATS - G168387
	ECCN - 5A992
	HTSUS Number: 8471.80.1000
	Perle Limited Lifetime warranty
IOLAN DTE   RJ45 Socket	IOLAN RJ45 Socket Function Direction 1 RTS 2 DTR 3 TXD 4 GND 5 GND 6 RXD 7 DSR 8 CTS ( A rolled RJ45 cable will automatically perform DTE to DCE crossover ) Optional Perle adapters for use with straight thru CAT5 cabling Part Numbers for existing customers who want this product with traditional IOLAN pinouts

*Calculation model based on MIL-HDBK-217-FN2 @ 30 °C
