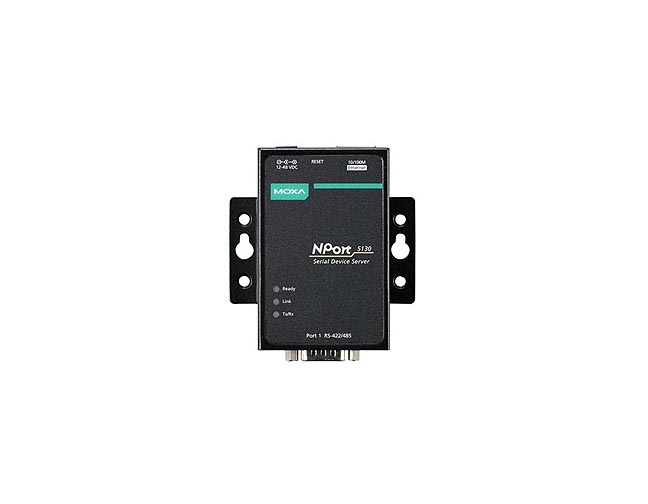

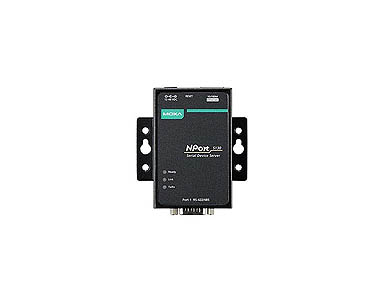

Moxa NPort 5130 - 1 port device server, 10/100M Ethernet, RS-422/485, DB9 male, 15KV ESD 110V or 230V
by MOXA
|
|
|
|
- Small size for easy installation
- Real COM/TTY drivers for Windows and Linux
- Standard TCP/IP interface and versatile operation modes
- Easy-to-use Windows utility for configuring multiple device servers
- SNMP MIB-II for network management
- Configure by Telnet, web browser, or Windows utility
- Adjustable pull high/low resistor for RS-485 ports
|
|
|
The NPort 5130 device servers are designed to make serial devices network-ready in an instant. The small size of the servers makes them ideal for connecting devices such as card readers and payment terminals to an IP-based Ethernet LAN. Use the NPort 5100 device servers to give your PC software direct access to serial devices from anywhere on the network.
| • Ethernet Interface |
| Number of Ports |
1 |
| Speed |
10/100 Mbps, auto MDI/MDIX |
| Connector |
8-pin RJ45 |
| Magnetic Isolation Protection |
1.5 kV built-in |
| • Serial Interface |
| Number of Ports |
1 |
| Serial Standards |
NPort 5110: RS-232
NPort 5130: RS-422/485
NPort 5150: RS-232/422/485 |
| Connector |
DB9 male |
| Serial Line Protection |
15 kV ESD protection for all signals |
| RS-485 Data Direction Control |
ADDC® (automatic data direction control) |
| Pull High/Low Resistor for RS-485 |
1 kΩ, 150 kΩ |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
| Baudrate |
NPort 5110: 110 bps to 230.4 kbps
NPort 5130/5150: 50 bps to 921.6 kbps |
| • Serial Signals |
| RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • Software |
| Network Protocols |
ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP |
| Configuration Options |
Web Console, Serial Console (NPort 5110/5150 only), Telnet Console, Windows Utility |
| Windows Real COM Drivers |
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers |
SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers |
Linux 2.4.x, 2.6.x, 3.x |
| • Physical Characteristics |
| Housing |
Metal |
| Weight |
340 g |
| Dimensions |
Without ears: 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)
With ears: 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in) |
| • Environmental Limits |
| Operating Temperature |
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature |
-20 to 75°C (-4 to 167°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Altitude |
Up to 2000 m |
| Note |
Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| • Power Requirements |
| Input Voltage |
12 to 48 VDC |
| Power Consumption |
NPort 5110: 128.7 mA @ 12 V, 72 mA @ 24 V
NPort 5130/5150: 200 mA @ 12 V, 106 mA @ 24 V |
| • Standards and Certifications |
| Safety |
UL 60950-1, EN 60950-1 |
| EMC |
CE, FCC |
| EMI |
EN 55022 Class A, FCC Part 15 Subpart B Class A |
| EMS |
EN 55024 |
| • Reliability |
| Automatic Reboot Trigger |
Built-in WDT (watchdog timer) |
| MTBF (mean time between failures) |
NPort 5110: 279,122 hrs
NPort 5130: 246,505 hrs
NPort 5150: 246,034 hrs |
|
