NPort 5230 - 1 port RS-422/485 device server, 1 port RS-232, 10/100M Ethernet, terminal block, 15KV ESD, 12-30VDC
by MOXA

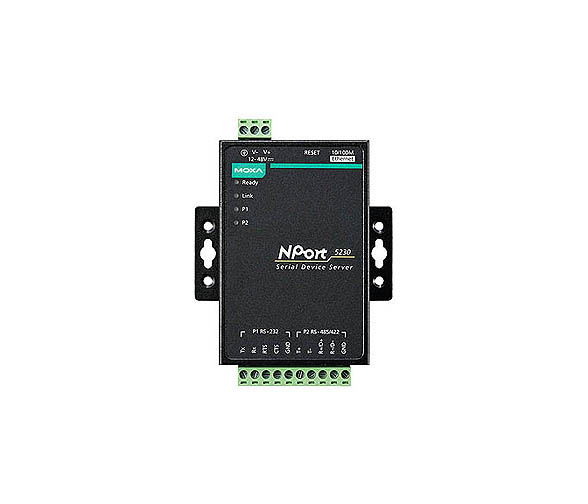

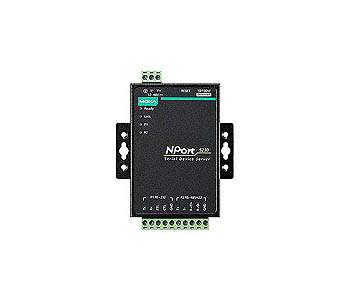

The NPort 5230 serial device servers are designed to make your industrial serial devices Internet-ready in no time. The compact size of NPort 5200 serial device servers makes them the ideal choice for connecting your RS-232 (NPort 5210/5230/5210-T/5230-T) or RS-422/485 (NPort 5230/5232/5232I/5230-T/5232-T/5232I-T) serial devices—such as PLCs, meters, and sensors—to an IP-based Ethernet LAN, making it possible for your software to access serial devices from anywhere over a local LAN or the Internet. The NPort 5200 Series has a number of useful features, including standard TCP/IP protocols and choice of operation modes, Real COM/TTY drivers for existing software, and remote control of serial devices with TCP/IP or traditional COM/TTY Port.

• Ethernet Interface
Number of Ports	1
Speed	10/100 Mbps, auto MDI/MDIX
Connector	8-pin RJ45
Magnetic Isolation Protection	1.5 KV built-in
• Serial Interface
Number of Ports	2
Serial Standards	NPort 5210: RS-232  NPort 5230: 1 RS-232 port, 1 RS-422/485 port  NPort 5232/5232I: RS-422/485
Connector	NPort 5210: RJ45 (8 pins)  NPort 5230/5232/5232I: Terminal Block (5 contacts per port)
Serial Line Protection	15 KV ESD protection for all signals  2 KV isolation protection (NPort 5232I/5232I-T)
RS-485 Data Direction Control	ADDC® (automatic data direction control)
• Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS (RS-232 only), DTR/DSR (NPort 5210 only), XON/XOFF
Baudrate	110 bps to 230.4 Kbps
• Serial Signals
RS-232	NPort 5210: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND NPort 5230: TxD, RxD, RTS, CTS, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
• Software
Network Protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP
Configuration Options	Web Console, Serial Console (NPort 5210/5230 only), Telnet Console, Windows Utility
Windows Real COM Drivers	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64, Embedded CE 5.0/6.0, XP Embedded
Fixed TTY Drivers	SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i
Linux Real TTY Drivers	Linux kernel 2.4.x, 2.6.x
• Physical Characteristics
Housing	Metal, IP30 protection
Weight	NPort 5210: 340 g  NPort 5230/5232: 360 g  NPort 5232I: 380 g
Dimensions	NPort 5210/5230/5232:  Without ears: 67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in)  With ears: 90 x 100.4 x 22 mm (3.54 x 3.95 x 0.87 in)  NPort 5232I:  Without ears: 67 x 100.4 x 35 mm (2.64 x 3.95 x 1.37 in)  With ears: 90 x 100.4 x 35 mm (3.54 x 3.95 x 1.37 in)
• Environmental Limits
Operating Temperature	Standard Models: 0 to 55°C (32 to 131°F)  Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
• Power Requirements
Input Voltage	12 to 48 VDC
Power Consumption	NPort 5210: 325 mA @ 12 V, 190 mA @ 24 V  NPort 5230: 325 mA @ 12 V, 190 mA @ 24 V  NPort 5232: 280 mA @ 12 V, 150 mA @ 24 V  NPort 5232I: 509.4 mA @ 12 V, 200 mA @ 24 V
• Standards and Certifications
Safety	UL 60950-1, EN 60950-1
EMC	CE, FCC
EMI	EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS	EN 55024
Marine	DNV
Medical	EN 60601-1-2 Class B, EN 55011 (NPort 5210/5210-T only)
• Reliability
Alert Tools	Built-in buzzer and RTC (real-time clock)
Automatic Reboot Trigger	Built-in WDT (watchdog timer)
MTBF (mean time between failures)	NPort 5210: 134,850 hrs  NPort 5230: 106,955 hrs  NPort 5232: 102,344 hrs  NPort 5232I: 87,083 hrs
