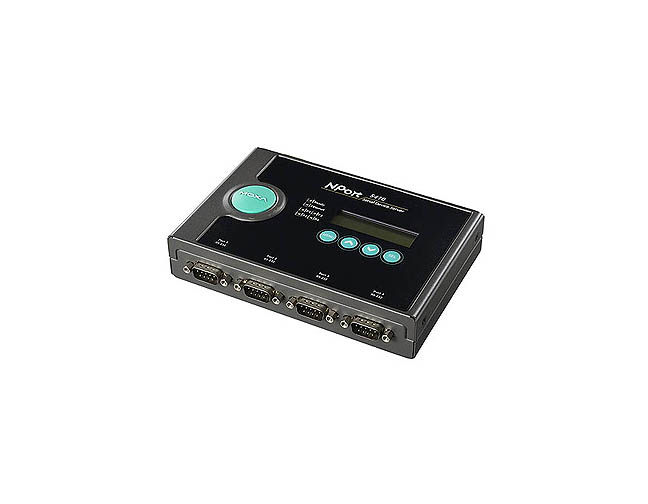

Moxa NPort 5410 w/ adapter - 4 port device server, 10/100M Ethernet, RS-232, DB9 male, 15KV ESD, 12-48 VDC
by MOXA

The NPort 5410 w/ adapter device servers provide many useful features for serial-to-Ethernet applications, including an independent operation mode for each serial port, user-friendly LCD panel for easy installation, dual DC power inputs, and adjustable termination and pull high/low resistors.

• Ethernet Interface
Number of Ports	1
Speed	10/100 Mbps, auto MDI/MDIX
Connector	8-pin RJ45
Magnetic Isolation Protection	1.5 kV built-in
• Serial Interface
Number of Ports	4
Serial Standards	NPort 5410: RS-232 NPort 5430/5430I: RS-422/485 (software selectable) NPort 5450/5450I/5450-T/5450I-T: RS-232/422/485 (software selectable)
Connector	NPort 5410/5450/5450I/5450-T/5450I-T: DB9 male NPort 5430/5430I: Terminal block
Serial Line Protection	15 kV ESD protection for all signals 2 kV isolation protection (NPort 5430I/5450I/5450I-T)
RS-485 Data Direction Control	ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485	1 kΩ, 150 kΩ
Terminator for RS-485	120 Ω
• Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
Baudrate	50 bps to 921.6 kbps
• Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
• Software
Network Protocols	ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, Rtelnet, ARP
Configuration Options	Web Console, Telnet Console, Windows Utility
Windows Real COM Drivers	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers	SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers	Linux 2.4.x, 2.6.x, 3.x
• Mini Screen with Push Buttons (for standard temp. models)
LCD Panel	Liquid Crystal Display on the case
Push Buttons	Four push buttons for convenient on-site configuration
• Physical Characteristics
Housing	Metal
Weight	740 g
Dimensions	Without mounting kit: 158 x 103 x 33 mm (6.22 x 4.06 x 1.30 in) With mounting kit: 181 x 103 x 33 mm (7.14 x 4.06 x 1.30 in)
• Environmental Limits
Operating Temperature	Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	Up to 2000 m
Note	Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
• Power Requirements
Input Voltage	12 to 48 VDC
Power Consumption	NPort 5410: 350 mA @ 12 V, 190 mA @ 24 V NPort 5430: 320 mA @ 12 V, 175 mA @ 24 V NPort 5430I: 530 mA @ 12 V, 280 mA @ 24 V NPort 5450/5450-T: 350 mA @ 12 V, 190 mA @ 24 V NPort 5450I/5450I-T: 554 mA @ 12 V, 294 mA @ 24 V
• Standards and Certifications
Safety	UL 60950-1, EN 60950-1
EMC	CE, FCC
EMI	EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS	EN 55024
Marine	DNV (standard temp. models only)
Medical	EN 60601-1-2 Class B, EN 55011 (NPort 5410/5450/5450I only)
• Reliability
Alert Tools	Built-in buzzer and RTC (real-time clock)
Automatic Reboot Trigger	Built-in WDT (watchdog timer)
MTBF (mean time between failures)	NPort 5410: 205,153 hrs NPort 5430: 201,699 hrs NPort 5430I: 114,540 hrs NPort 5450/5450I: 206,903 hrs NPort 5450-T/5450I-T: 206,903 hrs
