Perle's SPEED LE range of PCI Express serial cards provide the low-cost, high performace solution companies need when adding RS232 serial ports to a Windows or Linux based PC or Server. The range of SPEED LE Express Serial Cards are PCI Express ( PCIe ) bus slot compliant. Available in standard and low profile form factors, all SPEED LE Express cards come with a 15 Kv electrostatic discharge protection providing optimum reliability and peace of mind when connecting industrial data acquisition, Point of Sale, automation equipment and other RS232 serial devices to a PC server
SPEED LE Express cards are certified with 32 and 64 bit versions of Windows, Vista and Linux operating systems. For Solaris x86, Solaris SPARC, SCO OpenServer and SCO UnixWare, we recommend UltraPort Serial Cards.
Supported Operating System Drivers
- Windows® Server 2012 R2
- Windows® 8.1 (32 / 64 Bit)
- Windows® Server 2012
- Windows® 8 (32 / 64 Bit)
- Windows® Server 2008 R2
- Windows® 7 (32 / 64 Bit)
- Windows® Server 2008 (32 / 64 Bit)
- Windows® Vista (32 / 64 Bit)
- Windows® Server 2003 (32 / 64 Bit)
- Windows® XP (32 / 64 Bit)
- Windows® 2000
- Linux 3.x, 2.6.x, 2.4.x, 2.2.16+ (32 / 64 Bit)
For Solaris x86, Solaris SPARC, SCO OpenServer and SCO UnixWare, we recommend UltraPort Express Serial Cards.
Connectors
Serial Port Protection
15Kv Electrostatic Discharge Protection ( ESD )
Signal support
TXD, RXD, RTS, CTS, DTR, DCD, DSR, RI
UART
16C950 ( 16C550 compatible )
Environmental
Approvals
- FCC Part15 ,Class B
- EN55022:1998 + A1:2000 + A2:2003 Class A
- EN55024:1998 + A1:2001 + A2:2003
- EN60950-1:2001 +A11:2004
Form Factor

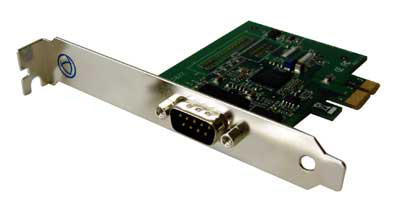

Speed 1 LE Express are low profile MD1 cards shipped on standard sized brackets. Low profile brackets are included
X1 lane - inserts into x1, x4, x8 and x16 lane PCI Express ( PCIe ) slots
Warranty: Limited Lifetime Warranty
HSTUS Number: 8517.62.0050
ECCN Number: 5A991
