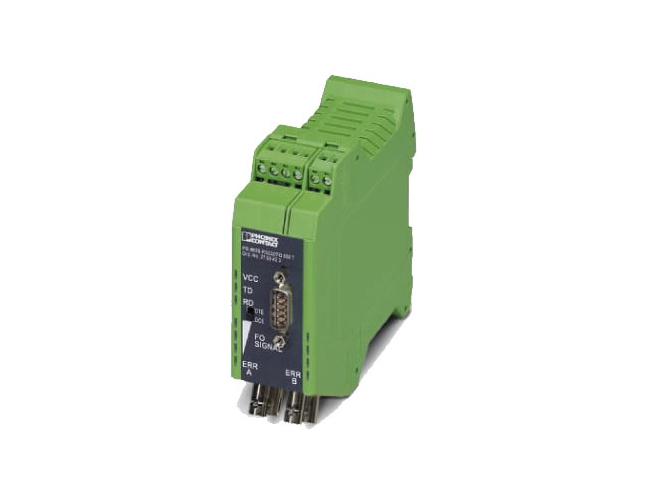

27084238 - PSI-MOS-RS232/FO 850 T - RS232 to fiber converter. DB9M serial to 2x duplex fiber multimode 850nm ( ST ) [ 4.2km, 2.6 by PERLE

27084238 - PSI-MOS-RS232/FO 850 T - RS232 to fiber converter. DB9M serial to 2x duplex fiber multimode 850nm ( ST ) [ 4.2km, 2.6
by PERLE

Write a review Write a review
  • Two ST type fiber connectors
  • Extend serial data up to 2.6 miles
  • Immune to EMI, RFI and transient surges
  • Point-to-point or star configuration
  • Configurable DB9 Male DTE / DCE RS232 Connector



Mfg SKU # : 27084238
Minimum Qty : 1
List Price : $908.00
Our Price : $818.00
Stock :Call for Availability
Quantity :

For applications where redundancy is required, the PSI-MOS-RS232/FO 850 T Serial to Fiber Converter transparently connects RS232 devices to two fiber optic cables. By transmitting RS232 data over optical fiber, these serial media converters provide an economical path to extend the reach of serial devices. The serial data input is transmitted out both fiber ports to different locations or back-up systems.

Expandable Serial to Fiber Network infrastructures

Up to ten (10) Serial to Fiber Converters can be grouped together using the TBUS DIN Rail bus system for voltage and data. This allows the serial converter to operate in additional network topology environments:

  • as a star coupler, taking the serial data input signal and distributing it to up to 20 Fiber optic output ports
  • linear structure can be used to network several RS-232 devices to form a master/slave structure

Long Distance Serial Data Transmission over Fiber

RS232 Serial transmission is limited to 20 Kbps for a distance of only 15 meters (50 feet). With the FO 850 T Serial to Fiber Converter serial data transmission can be extended up to 4.2km (2.6 miles). Therefore, any two pieces of asynchronous serial equipment, located miles apart, can communicate at half or full duplex over fiber optic cable at rates up to 115.2 kbps.

EMI, RFI and Transient Surge Immunity

The FO 850 T fiber optic transmission system electrically isolates connected devices. Electromagnetic interference (EMI) is a common phenomenon in industrial environments. This interference can cause corruption of data over serial or copper-based Ethernet links. However, data transmitted over fiber optic cable is completely immune to this type of noise. This prevents the negative effects of voltage equalization currents and electromagnetic interference on the data cables. A Serial to Fiber Media Converter therefore enables you to inter-connect your serial devices over fiber ensuring optimal data transmission, increased availability of the system, and improved network design flexibility for point-to-point connections, linear networks and star topology networks.

Flexible Fiber Optic Connections

The FO 850 T operates at 850 nm wavelength, using a separate LED emitter and photo-detector on both ST type connectors. Almost any multimode glass fiber size can be used including 50/125 m, 62.5/125 m, and 200/230 m.

Power Budget Considerations

Calculating the power budget is critically important when planning the fiber optic link. The optical power budget is the amount of light required to transmit data successfully through a fiber-optic connection. The amount of light energy available within the setup will dictate the length of the fiber optic cable run between serial media converters within the network. Optical power budgets are critical to help businesses avoid signal distortion. To learn how to calculate optical power budget read our technical note. Transmit and receive dBm can be found in the Hardware specifications.

High Quality Features and Support

For efficient troubleshooting and less on-site maintenance, the FO 850 T are equipped with comprehensive diagnostic functions to increase system availability, simplify start-up and permanently monitor the optical transmission quality. These cost and time saving features, along with free worldwide technical support, make the FO 850 T RS232 serial to fiber converter the smart choice for IT professionals.

  • Connections can be plugged in using a COMBICON screw terminal block
  • Supply voltage and data signals routed through via DIN rail connectors
  • High-quality electrical isolation between all interfaces (RS-232, fiber optic ports, power supply, DIN rail connector)
  • Redundant power supply possible by means of optional system power supply unit
  • Approved for use in zone 2
  • Floating switch contact for leading alarm generation in relation to critical fiber optic paths
  • Intrinsically safe fiber optic interface (Ex op is) for direct connection to devices in zone 1
  • Integrated optical diagnostics for continuous monitoring of fiber optic paths
  • Automatic data rate detection for all data rates up to 115.2 kbps

PSI-MOS-RS232/FO 850 T Technical Specifications

Ambient conditions
Ambient temperature (operation) -20 °C ... 60 °C
Ambient temperature (storage/transport) -40 °C ... 85 °C
Permissible humidity (operation) 30 % ... 95 % (non-condensing)
Altitude 5000 m (For restrictions see manufacturer's declaration)
Degree of protection IP20
Noise immunity EN 61000-6-2:2005
Standards and Regulations
Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU
Type of test Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Test result 5g, 10-150 Hz, 2.5 h, in XYZ direction
Type of test Shock in acc. with EN 60068-2-27/IEC 60068-2-27
Test result 15g, 11 ms period, half-sine shock pulse
Shock 15g in all directions in acc. with IEC 60068-2-27
Noise emission EN 55011
Noise immunity EN 61000-6-2:2005
Free from substances that could impair the application of coating according to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard
Connection in acc. with standard CUL
Standards/regulations EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
Vibration (operation) In acc. with IEC 60068-2-6: 5g, 150 Hz
Conformance CE-compliant
ATEX II 3 G Ex nA nC IIC T4 Gc X
II (2) G [Ex op is Gb] IIC (PTB 06 ATEX 2042 U)
II (2) D [Ex op is Db] IIIC (PTB 06 ATEX 2042 U)
UL, USA/Canada Class I, Zone 2, AEx nc IIC T5
Class I, zone 2, Ex nC nL IIC T5 X
Class I, Div. 2, Groups A, B, C, D
Optical interface FO
Number of FO ports 2
Transmit capacity, minimum -4.6 dBm (200/230 µm)
-17.6 dBm (50/125 µm)
-13.6 dBm (62,5/125 µm)
Minimum receiver sensitivity -33.2 dBm
Wavelength 850 nm
Transmission length incl. 3 dB system reserve 2800 m (with F-K 200/230 8 dB/km with quick mounting connector)
4200 m (with F-G 50/125 2.5 dB/km)
4800 m (with F-G 62,5/125 3.0 dB/km)
Transmission medium PCF fiber
Multi-mode fiberglass
Transmission protocol Transparent to protocol for RS-232 interface
Connection method B-FOC (duplex ST®)
General
Transmission channels 2 (1/1), RxD, TxD, full duplex
Bit distortion, input ± 35 % (permitted)
Bit distortion, output < 6.25 %
Electrical isolation VCC // V.24 (RS-232)
Test voltage data interface/power supply 1.5 kVrms (50 Hz, 1 min.)
Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU
Noise emission EN 55011
Net weight 221.1 g
Housing material PA 6.6-FR
Color green
MTBF 320 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
48 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day))
Conformance CE-compliant
ATEX II 3 G Ex nA nC IIC T4 Gc X (Please follow the special installation instructions in the documentation!)
II (2) G [Ex op is Gb] IIC (PTB 06 ATEX 2042 U) (Please follow the special installation instructions in the documentation!)
II (2) D [Ex op is Db] IIIC (PTB 06 ATEX 2042 U) (Please follow the special installation instructions in the documentation!)
UL, USA/Canada Class I, Zone 2, AEx nc IIC T5
Class I, zone 2, Ex nC nL IIC T5 X
Class I, Div. 2, Groups A, B, C, D
Digital outputs
Output name Relay output
Output description Alarm output
Number of outputs 1
Maximum switching voltage 60 V DC
42 V AC
Limiting continuous current 0.46 A
Power supply
Nominal supply voltage 24 V DC (With UL approval)
Supply voltage range 18 V DC ... 30 V DC
Max. current consumption 120 mA
Typical current consumption 120 mA (24 V DC)
Connection method COMBICON plug-in screw terminal block
Serial interface
Interface 1 V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
Connection method D-SUB 9 plug
Transmission medium Copper
Transmission length ≤ 15 m
Conductor cross section solid min. 0.2 mm²
Conductor cross section solid max. 2.5 mm²
Conductor cross section flexible min. 0.2 mm²
Conductor cross section flexible max. 2.5 mm²
Conductor cross section AWG min. 24
Conductor cross section AWG max. 14
Serial transmission speed 115.2 kbps (NRZ)
Dimensions
Width 35 mm
Height 99 mm
Depth 105 mm
PSI-MOS-RS232/FO 850 T
Environmental Product Compliance
China RoHS Environmentally Friendly Use Period = 50
Reach and RoHS Compliant Reach and RoHS Compliant
Approvals
cUL Listed
cULus Listed
UL Listed
ATEX
EAC
DNV
cUL Recognized
cULus Recognized
UL Recognized
Commercial data
Packing unit 1
Weight per piece 222.7 g
Country of origin Germany
