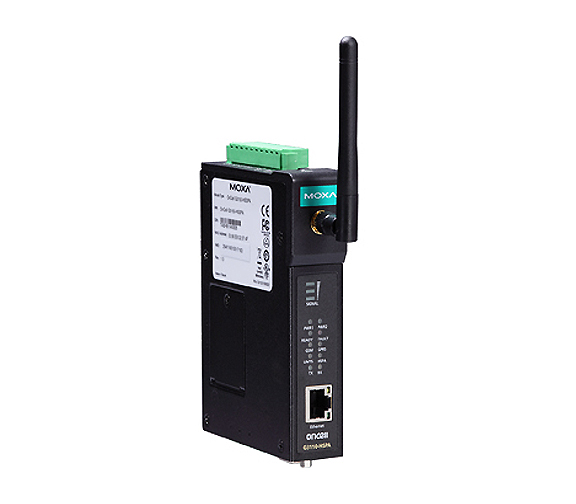

OnCell G3110-HSPA - 1 port Five-band industrial UMTS/HSPA+ IP gateway, RS-232, DB9 male, -30 to 55 Degree C by MOXA
|
|
|
- Five band UMTS/HSPA 800/850/AWS/1900/2100MHz
- Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz
- Connect to Ethernet and serial devices over an integrated VPN
- Centralize private IP management software with OnCell Central Manager
- Redundant DC power inputs
- 2 digital inputs and 1 relay output
Mfg SKU # : | OnCell G3110-HSPA |
|
|
|
The OnCell G3110/G3150-HSPA series of high-speed industrial-grade IP gateways are intelligent and fully-featured wireless communication platforms that connect your Ethernet and serial devices over a cellular TCP/IP network. The OnCell G3110/G3150-HSPA series offer connectivity to all five HSPA/UMTS frequency bands and quad GSM/GPRS/EDGE frequency bands used in Europe, the United States, and Japan, allowing the most flexible global deployment on the best available network. The OnCell G3110/G3150-HSPA come with private IP management software and support VPN for handling the IP address issue in cellular network structures. The OnCell G3110/G3150-HSPA also have a built-in relay output that can be configured to indicate the priority of events when notifying or warning engineers in the field. Two digital inputs also allow you to connect basic I/O devices, and the OnCell G3110/G3150-HSPA comes with redundant power inputs to assure non-stop operation.
• Cellular Interface |
Standards |
GSM/GPRS/EDGE/UMTS/HSPA |
Band Options |
• Five-band UMTS/HSPA 800/850/AWS/1900/2100 MHz
• Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz |
HSPA Data Rate |
14.4 Mbps DL, 5.76 Mbps UL |
EDGE Multi-slot Class |
Class 12 |
EDGE Data Rate |
237 Kbps DL, 237 Kbps UL |
EDGE Terminal Device Class |
Class B |
GPRS Multi-slot Class |
Class 12 |
GPRS Data Rate |
85.6 Kbps DL, 85.6 Kbps UL |
GPRS Terminal Device Class |
Class B |
GPRS Coding Schemes |
CS1 to CS4 |
Tx Power |
UMTS/HSPA: 0.25 W
EDGE900: 0.5 W
EDGE1800: 0.4 W
GSM1800: 1 W
GSM900: 2 W |
• LAN Interface |
Number of Ports |
1 |
Ethernet |
10/100 Mbps, RJ45 connector, Auto MDI/MDIX |
• SIM Interface |
Number of SIMs |
1 |
SIM Control |
3 V |
• Serial Interface |
Number of Ports |
1 |
Serial Standards |
OnCell G3110-HSPA: RS-232 (DB9 male connector)
OnCell G3150-HSPA: RS-232 (DB9 male connector), RS-422/485 (5-pin terminal block connector) |
• Serial Communication Parameters |
Data Bits |
5, 6, 7, 8 |
Stop Bits |
1, 1.5, 2 (when parity = None) |
Parity |
None, Even, Odd, Space, Mark |
Flow Control |
RTS/CTS, XON/XOFF |
Baudrate |
50 bps to 921.6 kbps |
• Serial Signals |
RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
RS-422 |
Tx+, Tx-, Rx+, Rx-, GND |
RS-485-4w |
Tx+, Tx-, Rx+, Rx-, GND |
RS-485-2w |
Data+, Data-, GND |
• I/O Interface |
Alarm Contact |
1 relay output with current carrying capacity of 1 A @ 24 VDC |
Digital Inputs |
2 electrically isolated inputs
• +13 to +30 V for state “1” (On)
• +3 to -30 V for state “0” (Off) |
• Software |
Network Protocols |
ARP, DDNS, DHCP/BOOTP, DNS Relay, HTTP, HTTPS, ICMP, IPSec, SMTP, SNTP, SSH, SSL, TCP/IP, Telnet, UDP |
Router/Firewall |
NAT, port forwarding, WAN IP filtering |
Authentication |
Local user-name and password |
Cellular Connectivity |
GuaranLink |
Serial Security |
Accessible IP list |
Serial Operation Modes |
Real COM, Reverse Real COM, TCP Server, TCP Client, UDP, SMS Tunnel, RFC2217, Secure Real COM, Secure Reverse Real COM, Secure TCP Server, Secure TCP Client, Ethernet Modem |
Windows Real COM Drivers |
Windows 2000/XP/2003/Vista/7/Server 2008, Windows XP/2003/Vista/7/Server 2008 x64 Edition |
Fixed TTY Drivers |
SCO Unix, SCO OpenServer 5, SCO OpenServer 6, UnixWare 7, SVR4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD 5, FreeBSD 6 |
Linux Real TTY Drivers |
Linux kernels 2.2.x, 2.4.x, 2.6.x |
• Management Software |
Utilities |
OnCell Search Utility |
Configuration and Management Options |
SNMP v1/v2c/v3, Web/Telnet/Serial Console, SSH, Remote SMS Control, Auto IP Report |
Private IP Solution |
OnCell Central Manager |
• Physical Characteristics |
Housing |
Aluminum, providing IP30 protection |
Weight |
440±5 g |
Dimensions |
125.5 x 28.0 x 92.5 mm (4.94 x 1.10 x 3.64 in) |
• Environmental Limits |
Operating Temperature |
Standard Models: -30 to 55°C (-22 to 131°F)
Wide Temp. Models: -30 to 70°C (-22 to 158°F) |
Storage Temperature |
-40 to 75°C (-40 to 167°F) |
Ambient Relative Humidity |
5 to 95% (30°C, non-condensing) |
• Power Requirements |
Number of Power Inputs |
2 (terminal block) |
Input Voltage |
12 to 48 VDC |
Power Consumption |
12 to 48 VDC, 400 mA (idle), 900 mA (max.) |
• Standards and Certifications |
Safety |
UL 60950-1 |
EMC |
FCC Part 15 Subpart B Class A, EN 55022 Class A, EN 55024 |
Radio |
FCC Part 22H, FCC Part 24E, EN 301 489-1, EN 301 489-7,
EN 301 489-24, EN 301 511, EN 301 908 |
• Reliability |
MTBF (mean time between failures) |
380,000 hrs |
|
|
