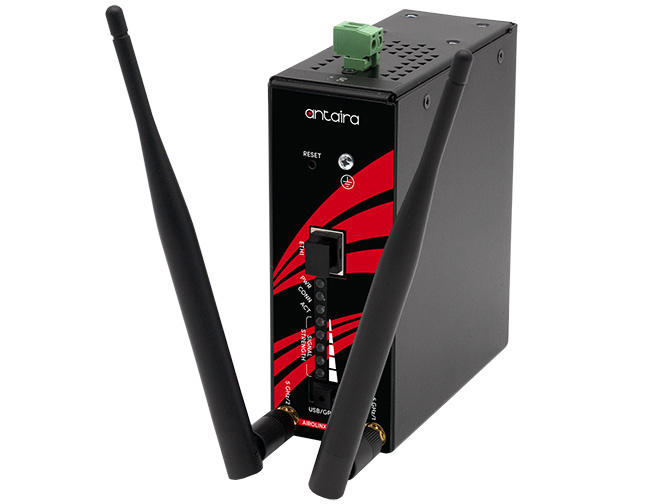

Antaira AIROLINX-6-DR-T - Industrial Din Rail Single Band 5 GHz Wi-Fi 6 (802.11a/n/ac/ax) Wireless Access Point/Client/Bridge/Ro
by ANTAIRA
|
|
|
|
- Wi-Fi 6 IEEE 802.11ax Single-Band Radio
- Delivers up to 2400 Mbps on 5GHz
- Supports 1*10/100/1000Tx RJ45 Ethernet Port
- Supports USB Flash Storage, GPS, and Bluetooth Adapter
- IoT Package: Bluetooth, MQTT, Modbus
- Power Input: 12-28 VDC Terminal Block or 18-28 VDC Passive PoE
- System power: 6W and max power consumption: 15W
- Extended Operating Temperature: -40°F to 167°F (-40°C to 75°C)
- 5-Year Warranty
|
|
|
Antaira AIROLINX-6-DR-T
Antaira Technologies’ Airolinx-6-DR-T is a single radio industrial 802.11a/n/ac/ax wireless LAN access point with added router capabilities.
The Airolinx 6 Series is specifically designed for a wide variety of applications, including:
● Security – Reliable, high-speed Wi-Fi for IP surveillance cameras and security networks.
● Transportation – Ideal for intersection connectivity, public transit networks, and vehicle-to-infrastructure (V2I) communication.
● Automation – Provides seamless wireless connectivity for SCADA applications, remote monitoring, and industrial IoT
Specifications
- RJ45 GbE: 1
- Antenna: 5Ghz External
- Cooling system: passive
- Operating temperature: -40~75ºC
- Mounting: DIN-Rail
- Housing: Metal, IP30
- LED indicators: power, connection, activity, signal strength
- Certification: CE, FCC, IC, EAC, RoHS Compliance
- Encryption security: WPA, WPA2, WPA3, WEP, TKIP, AES
- Protocol: IP, TCP, UDP, ARP, BOOTP, ICMP, HTTP, HTTPS, DNS Proxy, NTP, RADIUS, Dynamic DNS, SNMP
- IEEE Standards:
- IEEE 802.11a/n/ac/ax Wi-Fi 6
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3 1000Base-T Gigabit Ethernet
- WLAN operation mode: Access Point/Client/Bridge/Repeater/Router
- IoT Package: bluetooth, MQTT, Modbus
- Frequency range: 5.1~5.8 GHz
|
|
|
|
