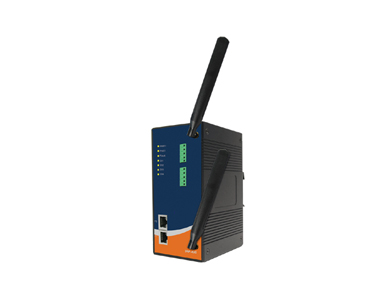

IGAP-420 - Rugged 2x 10/100/1000TX (RJ-45 LAN) to 1x 802.11b/g/n Access Point
by ORing Industrial Networking

IGAP-420 is a reliable WLAN Access Point with 2 Ethernet Gigabit ports and IEEE 802.11 b/g/n wireless modules. It can be configured to operate in AP/Bridge/Repeater/AP-Client mode. You are able to configure IGAP-420 by WEB interface via LAN port or WLAN interface. IGAP-420 provides dual Ethernet ports in switch mode, so that you can use Daisy Chain to reduce the usage of Ethernet switch ports. In addition, IGAP-420 series also provides P.D. feature on ETH2 which is fully compliant with IEEE802.3af PoE P.D. specification. Therefore, IGAP-420 is one of the best communication solutions for wireless applications on the industrial network..

Physical Ports
100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX	2
5-Pin Terminal Block	4(DI and DO)
Antenna Connector	2
P.O.E. PD port
WLAN interface
Operating Mode	AP/Bridge/Repeater/AP-Client
Antenna and connector	Reverse SMA Female
Radio Frequency Type	DSSS
Modulation	IEEE802.11b: CCK, DQPSK, DBPSK IEEE802.11g: OFDM with BPSK, QPSK, 16-QAM, 64-QAM IEEE802.11n: OFDM with BPSK, QPSK, 16-QAM, 64-QAM
Frequency Band	America/FCC: 2.412~2.462 GHz (11 channels) Europe CE/ETSI: 2.412~2.472 Ghz (13 channels)
Transmission Rate	IEEE802.11b: 1/ 2/ 5.5/ 11 Mbps IEEE802.11g: 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 Mbps IEEE802.11n:up to 300Mbps
Transmit Power	802.11b: 17dBm ± 1.5dBm@11Mbps 802.11g: 16dBm ± 1.5dBm@54Mbps 802.11gn HT20: 15dBm ± 1.5dBm @MCS7 802.11gn HT40: 14dBm ± 1.5dBm @MCS7
Receiver Sensitivity	802.11b : -85dBm ± 2dBm@11Mbps 802.11g : -76dBm ± 2dBm@54Mbps 802.11gn HT20:-75dBm ± 2dBm@MCS7 802.11gn HT40:-72dBm ± 2dBm@MCS7
Encryption Security	WEP: (64-bit ,128-bit key) WPA/WPA2 PSK :TKIP and AES encryption (802.11i) 802.1X/RADIUS Authentication supported
Wireless Security	SSID broadcast disable
Protocol Support
Protocol	ARP, BOOTP, DHCP, DNS, HTTPs, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, STP (IEEE 802.1D), RSTP
LED Indicators
Power Indicator	3 x LEDs, PWR1(2)(PoE) / Ready: Red On : Power is on and booting up Green On : Power is on and functioning Normal
100/1000TX RJ45 Port Indicator	2 x LEDs, LNK/ACT:Green for port Act. Speed: Green for port Link at 1000Mbps Amber for port Link at 100Mbps. Off for port Link at 10Mbps
WLAN LEDs	1 x LED, Green for WLAN Link/ Act
Fault	1 x LED, Red for Ethernet link down or power down indicator
Fault contact
Relay	Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power	Dual DC inputs. 12-48VDC on 6-pin terminal block
Power Consumption (Typ.)	7.5W
Overload Current Protection	Present
Reverse Polarity Protection	Present
Physical Characteristic
Enclosure	IP-30
Dimension (W x D x H)	74.3(W) x 109.2(D) x 153.6(H) mm (2.93 x 4.3 x 6.05 inch.)
Weight (g)	1150
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-25 to 70°C (-13 to 158°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory approvals
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS),EN61000-4-8, EN61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety	EN60950-1
