IGAP-610H+_SUMMARY.html
- High Speed Air Connectivity:Dual Band in IEEE 802.11 a/b/g/n and b/g/n
WLAN interface selectable and support up to 300Mbps link speed
- 12~48VDC power input on terminal block
- 1 Gigabit Ethernet portswith 2KV isolation for PoE P.D.
- Highly Security Capability:WEP/WPA/WPA-PSK(TKIP, AES)/WPA2/WPA2-PSK(TKIP, AES)/802.1X
Authentication supported
- SupportX-Roaming<100 ms
- Support Multiple-SSID to 4 SSID with VLAN
- Support MAC Filter
- High transmission power(27 dBm Max.)
- High data throughputwith HT40 2x2 MIMO
- Support Long Distance Air Connectivity
- Support AP/Client/Repeater
- Wireless connecting status monitoring
- Secured Management by HTTPS
- Event Warning by Syslog, Email, SNMP Trap, and Relay output
- Rigid IP-30 housing design
- DIN-Rail and Wall-mount enabled
|
|
|

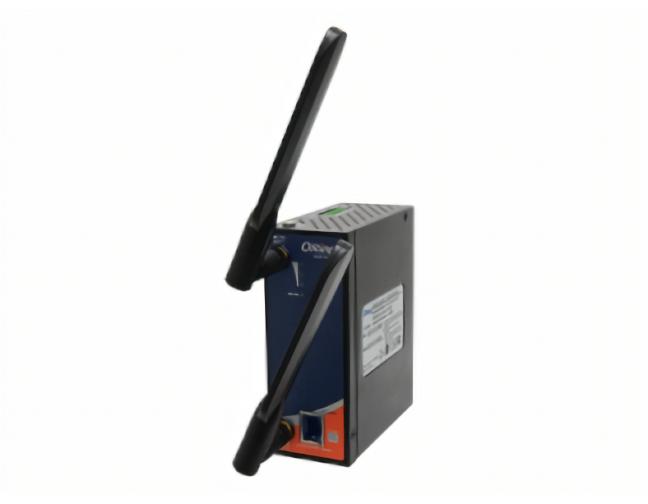

IGAP-610H+ is a reliable WLAN Access Point with 1 Ethernet Gigabit port and an IEEE 802.11 a/b/g/n wireless module. It can be configured to operate in AP/Client/Repeater Mode. You are able to configure IGAP-610H+ via the web interface through the LAN port or WLAN interface. In addition, IGAP-610H+ also provides a P.D. feature on the Ethernet port, which is fully compliant with the IEEE 802.3af PoE P.D. specification. Therefore, IGAP-610H+ is one of the best communication solutions for wireless applications on the industrial network.
|
|
|
|
