Moxa WAC-M300 - L2 wireless access controller for TAP-M310R Series, 0 to 50C operating temperature
by MOXA

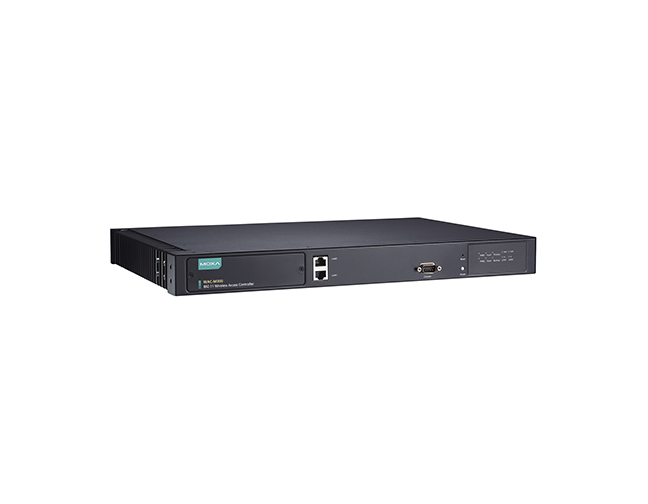

Moxa WAC-M300

The WAC-M300 Series railway train-to-ground wireless access controllers feature Layer 2 Controller-based Turbo Roaming technology, enabling seamless roaming under 50 ms to ensure uninterrupted client communication when moving between access points. The intuitive web interface simplifies large-scale network management by consolidating operations into an easy-to-use platform with API support for system integration. The WAC-M300 Series also supports device-level redundancy with hot standby controllers to enhance network availability.

Specifications

• 10/100/1000BaseT(X) ports (RJ45 connector): 2
  • port 1: communications port for WAC/HA
  • port 2: reserved
• Standards
  • IEEE 802.11i for Wireless Security
  • IEEE 802.3 for 10BaseT
  • IEEE 802.3u for 100BaseT(X)
  • IEEE 802.3ab for 1000BaseT(X)
  • IEEE 802.1X for authentication
• Management:
  • IPv4
    SNMPv1/v2c/v3
    Syslog
    TCP/IP
    Telnet
    Web Console
    Wireless Search Utility
    MXconfig
    MXview One
• Security:
  • HTTPS/SSL
    RADIUS
    SSH
• Time management: NTP client
• Console port: RS-232 ports x 1 (DB9 male)
• Flow control: RTS/CTS, XON/XOFF
• Parity: none, even, odd, space, mark
• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• Controller failover mode: 1-on-1 hot backup
• Handover time: 50 ms
• Roaming support: turbo roaming (L2) with inter-controller capabilities
• WLAN products supported: layer 2 networks; up to 190 clients roaming between 400 APs
• TAP products: TAP-M310R series
• Input current: 1.2A @100 VAC
• Input voltage: 100~240 VAC
• No. of power inputs: 2
• Operating voltage: 100~240 VAC
• Housing: metal
• Installation: 19-inch rack mounting
• Operating temperature: 0~50ºC
• Safety:
  • UL 62368-1
    EN 62368-1
    IEC 62368-1
• EMC:
  • EN 55032/35
    EN 61000-6-2/-6-4
• EMI: CISPR 32, FCC Part 15B Class A
• EMS:
  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
    IEC 61000-4-3 RS: 1400 MHz to 2000 MHz: 10 V/m
    IEC 61000-4-3 RS: 2000 MHz to 2700 MHz: 5 V/m
    IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF: 100 A/m
• Green product: RoHS, CRoHS, WEEE
• MTBF time: 770,346 hrs
• Standards: telcordia standard SR-332
