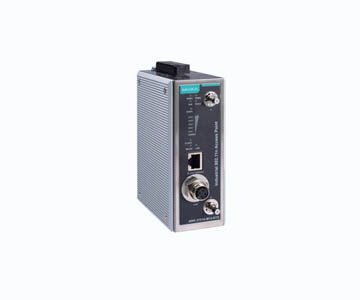

AWK-3131A-M12-RTG-US-CT-T - Rail Onboard In-door Single Radio, 802.11n Access Point/Client, M12/QMA, US band, IP30, -40 to 75 d by MOXA
|
|
|
- IEEE 802.11a/b/g/n compliant
- M12 anti-vibration connectors
- SC optical fiber connection
- QoS (WMM) and VLAN for efficient network traffic
- Controller-based Turbo Roaming (less than 50 ms)
- Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
- Wide-temperature models available for -40 to 75°C environments
|
|
|
Introduction
The AWK-3131A-M12-RTG-US-CT-T 2-in-1 industrial AP/client devices are designed specifically for train-to-ground communication and can perform reliably even when the trains reach a speed of 120 km/h. The AWK-3131A-RTG complies with a portion of EN 50155 specifications, covering operating temperature, power input voltage, surge, ESD, and vibration, making the AWK-3131A-RTG suitable for a variety of industrial applications. Installation is easy, with either DIN-rail mounting or distribution boxes, and the DIN-rail mounting capability, wide operating temperature range, and IP30 housing with LED indicators make the AWK-3131A-RTG a convenient yet reliable solution for any rolling stock application.
Advanced Security
64-bit and 128-bit WEP (Wired Equivalent Privacy)
Enable/disable SSID broadcasts
WPA/WPA2 (Wi-Fi Protected Access) and 802.11i support
IEEE802.1X/RADIUS support
Powerful filters for access control
Designed for Train-to-Ground Applications
Client-based Turbo Roaming handover time < 150 ms @ 3 channel with WPA2
Controller-based Turbo Roaming handover time (available only when used with the WAC-1001 or WAC-2004) < 50 ms @ 3 channels with WPA2
Multiple roaming parameters for different installation structures and antenna types
WLAN Interface
-
WLAN Standards
802.11a/b/g/n
802.11i Wireless Security
-
Modulation Type
DSSS
OFDM
802.11b: CCK @ 11/5.5 Mbps
802.11b: DQPSK @ 2 Mbps
802.11b: DBPSK @ 1 Mbps
802.11a/g: 64QAM @ 54/58 Mbps
802.11a/g: 16QAM @ 36/24 Mbps
802.11a/g: QPSK @ 18/12 Mbps
802.11a/g: BPSK @ 9/6 Mbps
802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps
-
Frequency Band for US (20 MHz operating channels)
2.412 to 2.462 GHz (11 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (8 channels)
5.745 to 5.825 GHz (5 channels)
-
Frequency Band for EU (20 MHz operating channels)
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
-
Frequency Band for JP (20 MHz operating channels)
2.412 to 2.484 GHz (14 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
-
Wireless Security
SSID broadcast enable/disable
WEP encryption (64-bit and 128-bit)
WPA/WPA2-Personal
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
-
Transmission Rate
802.11b: 1 to 11 Mbps
802.11a/g: 6 to 54 Mbps
802.11n: 6.5 to 300 Mbps
-
Transmitter Power for 802.11a
23±1.5 dBm @ 6 to 24 Mbps
21±1.5 dBm @ 36 Mbps
20±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps
-
Transmitter Power for 802.11b
26±1.5 dBm @ 1 Mbps
26±1.5 dBm @ 2 Mbps
26±1.5 dBm @ 5.5 Mbps
25±1.5 dBm @ 11 Mbps
-
Transmitter Power for 802.11g
23±1.5 dBm @ 6 to 24 Mbps
21±1.5 dBm @ 36 Mbps
19±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps
-
Transmitter Power for 802.11n (2.4 GHz)
23±1.5 dBm @ MCS0 20 MHz
21±1.5 dBm @ MCS1 20 MHz
21±1.5 dBm @ MCS2 20 MHz
21±1.5 dBm @ MCS3 20 MHz
20±1.5 dBm @ MCS4 20 MHz
19±1.5 dBm @ MCS5 20 MHz
18±1.5 dBm @ MCS6 20 MHz
18±1.5 dBm @ MCS7 20 MHz
23±1.5 dBm @ MCS8 20 MHz
21±1.5 dBm @ MCS9 20 MHz
21±1.5 dBm @ MCS10 20 MHz
21±1.5 dBm @ MCS11 20 MHz
20±1.5 dBm @ MCS12 20 MHz
19±1.5 dBm @ MCS13 20 MHz
18±1.5 dBm @ MCS14 20 MHz
18±1.5 dBm @ MCS15 20 MHz
23±1.5 dBm @ MCS0 40 MHz
20±1.5 dBm @ MCS1 40 MHz
20±1.5 dBm @ MCS2 40 MHz
20±1.5 dBm @ MCS3 40 MHz
19±1.5 dBm @ MCS4 40 MHz
19±1.5 dBm @ MCS5 40 MHz
18±1.5 dBm @ MCS6 40 MHz
17±1.5 dBm @ MCS7 40 MHz
23±1.5 dBm @ MCS8 40 MHz
20±1.5 dBm @ MCS9 40 MHz
20±1.5 dBm @ MCS10 40 MHz
20±1.5 dBm @ MCS11 40 MHz
20±1.5 dBm @ MCS12 40 MHz
19±1.5 dBm @ MCS13 40 MHz
18±1.5 dBm @ MCS14 40 MHz
17±1.5 dBm @ MCS15 40 MHz
-
Transmitter Power for 802.11n (5 GHz)
23±1.5 dBm @ MCS0 20 MHz
20±1.5 dBm @ MCS1 20 MHz
20±1.5 dBm @ MCS2 20 MHz
20±1.5 dBm @ MCS3 20 MHz
19±1.5 dBm @ MCS4 20 MHz
18±1.5 dBm @ MCS5 20 MHz
18±1.5 dBm @ MCS6 20 MHz
18±1.5 dBm @ MCS7 20 MHz
23±1.5 dBm @ MCS8 20 MHz
20±1.5 dBm @ MCS9 20 MHz
20±1.5 dBm @ MCS10 20 MHz
20±1.5 dBm @ MCS11 20 MHz
19±1.5 dBm @ MCS12 20 MHz
19±1.5 dBm @ MCS13 20 MHz
18±1.5 dBm @ MCS14 20 MHz
18±1.5 dBm @ MCS15 20 MHz
23±1.5 dBm @ MCS0 40 MHz
20±1.5 dBm @ MCS1 40 MHz
20±1.5 dBm @ MCS2 40 MHz
20±1.5 dBm @ MCS3 40 MHz
19±1.5 dBm @ MCS4 40 MHz
18±1.5 dBm @ MCS5 40 MHz
18±1.5 dBm @ MCS6 40 MHz
18±1.5 dBm @ MCS7 40 MHz
23±1.5 dBm @ MCS8 40 MHz
20±1.5 dBm @ MCS9 40 MHz
20±1.5 dBm @ MCS10 40 MHz
20±1.5 dBm @ MCS11 40 MHz
19±1.5 dBm @ MCS12 40 MHz
19±1.5 dBm @ MCS13 40 MHz
18±1.5 dBm @ MCS14 40 MHz
18±1.5 dBm @ MCS15 40 MHz
-
Receiver Sensitivity for 802.11a
-90 dBm @ 6 Mbps
-88 dBm @ 9 Mbps
-88 dBm @ 12 Mbps
-85 dBm @ 18 Mbps
-81 dBm @ 24 Mbps
-78 dBm @ 36 Mbps
-74 dBm @ 48 Mbps
-74 dBm @ 54 Mbps
-
Receiver Sensitivity for 802.11b
-93 dBm @ 1 Mbps
-93 dBm @ 2 Mbps
-93 dBm @ 5.5 Mbps
-88 dBm @ 11 Mbps
-
Receiver Sensitivity for 802.11g
-88 dBm @ 6 Mbps
-86 dBm @ 9 Mbps
-85 dBm @ 12 Mbps
-85 dBm @ 18 Mbps
-85 dBm @ 24 Mbps
-82 dBm @ 36 Mbps
-78 dBm @ 48 Mbps
-74 dBm @ 54 Mbps
-
Receiver Sensitivity for 802.11n (2.4 GHz)
-89 dBm @ MCS0 20 MHz
-85 dBm @ MCS1 20 MHz
-85 dBm @ MCS2 20 MHz
-82 dBm @ MCS3 20 MHz
-78 dBm @ MCS4 20 MHz
-74 dBm @ MCS5 20 MHz
-72 dBm @ MCS6 20 MHz
-70 dBm @ MCS7 20 MHz
-95 dBm @ MCS8 20 MHz
-90 dBm @ MCS9 20 MHz
-87 dBm @ MCS10 20 MHz
-83 dBm @ MCS11 20 MHz
-80 dBm @ MCS12 20 MHz
-74 dBm @ MCS13 20 MHz
-71 dBm @ MCS14 20 MHz
-69 dBm @ MCS15 20 MHz
-87 dBm @ MCS0 40 MHz
-83 dBm @ MCS1 40 MHz
-83 dBm @ MCS2 40 MHz
-80 dBm @ MCS3 40 MHz
-76 dBm @ MCS4 40 MHz
-73 dBm @ MCS5 40 MHz
-69 dBm @ MCS6 40 MHz
-67 dBm @ MCS7 40 MHz
-93 dBm @ MCS8 40 MHz
-88 dBm @ MCS9 40 MHz
-85 dBm @ MCS10 40 MHz
-82 dBm @ MCS11 40 MHz
-78 dBm @ MCS12 40 MHz
-73 dBm @ MCS13 40 MHz
-69 dBm @ MCS14 40 MHz
-67 dBm @ MCS15 40 MHz
-
Receiver Sensitivity for 802.11n (5 GHz)
-88 dBm @ MCS0 20 MHz
-85 dBm @ MCS1 20 MHz
-82 dBm @ MCS2 20 MHz
-79 dBm @ MCS3 20 MHz
-76 dBm @ MCS4 20 MHz
-71 dBm @ MCS5 20 MHz
-70 dBm @ MCS6 20 MHz
-69 dBm @ MCS7 20 MHz
-95 dBm @ MCS8 20 MHz
-91 dBm @ MCS9 20 MHz
-87 dBm @ MCS10 20 MHz
-80 dBm @ MCS11 20 MHz
-78 dBm @ MCS12 20 MHz
-74 dBm @ MCS13 20 MHz
-72 dBm @ MCS14 20 MHz
-71 dBm @ MCS15 20 MHz
-84 dBm @ MCS0 40 MHz
-81 dBm @ MCS1 40 MHz
-77 dBm @ MCS2 40 MHz
-75 dBm @ MCS3 40 MHz
-71 dBm @ MCS4 40 MHz
-67 dBm @ MCS5 40 MHz
-64 dBm @ MCS6 40 MHz
-63 dBm @ MCS7 40 MHz
-90 dBm @ MCS8 40 MHz
-85 dBm @ MCS9 40 MHz
-82 dBm @ MCS10 40 MHz
-81 dBm @ MCS11 40 MHz
-77 dBm @ MCS12 40 MHz
-73 dBm @ MCS13 40 MHz
-71 dBm @ MCS14 40 MHz
-68 dBm @ MCS15 40 MHz
-
WLAN Operation Mode
Access point, Client, Client-Router, Sniffer
-
Antenna Connectors
QMA
Ethernet Interface
-
PoE Ports (10/100/1000BaseT(X), M12 D-coded 4-pin female connector)
1, AWK-3131A-M12-RTG only
-
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT
IEEE 802.3af for PoE
IEEE 802.1Q for VLAN Tagging
-
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)
1, 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection (AWK-3131A-M12-RTG only)
- Optical Fiber: 100BaseFX
Wavelength: 1310 nm
Max. TX: 0 dBm
Min. TX: -5 dBm
RX Sensitivity: -34 dBm
Link Budget: 29 dB
Typical Distance: 40 Km
Ethernet Software Features
-
Management
General: Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCP
AP-only: ARP, BOOTP, DHCP, STP/RSTP (IEEE 802.1D/w)
-
Security
RADIUS
Firewall
Serial Interface
-
Console Port
RS-232 (RJ45-type)
-
LED Indicators
PWR1, PWR2, PoE*, FAULT, STATE, SIGNAL, CLIENT, WLAN, LAN (AWK-3131A-M12-RTG only),100M (AWK-3131A-SSC-RTG only)
*PoE is only available for the AWK-3131A-M12-RTG
Input/Output Interface
Physical Characteristics
Power Parameters
-
Input Current
AWK-3131A-M12-RTG: 0.85 A @ 12 VDC, 0.22 A @ 48 VDC
AWK-3131A-SSC-RTG: 1.0 A @ 12 VDC, 0.27 A @ 48 VDC
-
Input Voltage
12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
-
Power Connector
1 removable 10-contact terminal block(s)
-
Power Consumption
1 removable 10-contact terminal block(s)
-
Reverse Polarity Protection
AWK-3131A-M12-RTG: Maximum 10.5 W
AWK-3131A-SSC-RTG: Maximum 13 W
Environmental Limits
-
Operating Temperature
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
-
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
-
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
-
EMC
EN 61000-6-2/-6-4
-
EMI
CISPR 32, FCC Part 15B Class B
-
EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
-
Railway
EN 50155, EN 50121-4
-
Railway Fire Protection
EN 45545-2
-
Radio
EN 301 489-1/17, EN 300 328, EN 301 893, MIC, FCC ID SLE-WAPN008, SRRC, NCC, IDA
-
Safety
UL 60950-1, IEC 60950-1, EN 60950-1 (LVD)
MTBF
|
|
