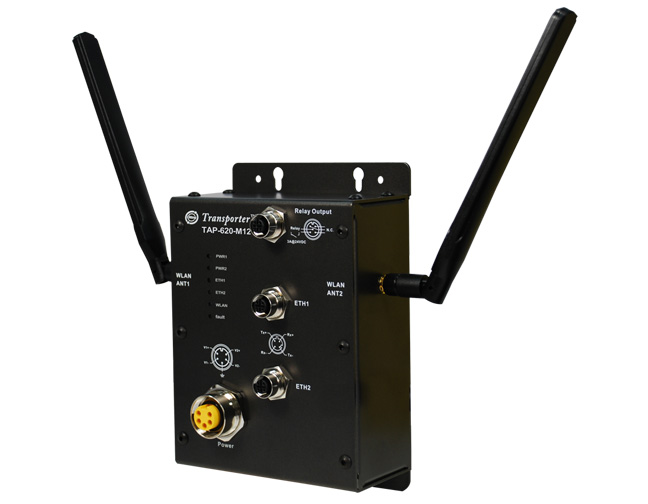

ORing’s TransporterTM series access point is designed for industrial and rolling stock wireless applications, such as vehicle, and railway applications. TAP-620-M12 is a reliable 802.11 a/b/g/n WLAN Access Point with 2 Ethernet 10/100 ports. It can be configured to operate in AP/Client /Bridge /AP-Client Mode. TAP-620-M12 provides dual Ethernet ports in switch mode, so that you can use Daisy Chain to reduce the usage of Ethernet switch ports. TAP-620-M12 provides a dust-tight connection and reverses SMA-type connectors that can install any reverse SMA-type antennas to extend communication distance. It is specifically designed for the toughest industrial environments. You are able to configure TAP-620-M12 by WEB interface via LAN port or WLAN interface. TAP-620-M12 can be easily adopted in almost all kinds of applications and provides the most rugged solutions for managing your network in outdoor. Therefore, TAP-620-M12 is one of the best communication solutions for wireless applications.

Physical Ports
10/100Base-T(X) Ports in M12 Auto MDI/MDIX	2 (4-pin M12 connetor – D-coding)
WLAN Interface
Operating Mode	AP/Client/Bridge/Repeater/AP-Client
Antenna and Connector	2 x 2 dBi (2.4GHz) / 3dBi (5GHz) on Reverse SMA connector
Radio Frequency Type	DSSS, OFDM
Modulation	IEEE802.11a/n: OFDM with BPSK, QPSK, 16QAM, 64QAM IEEE802.11b: CCK, DQPSK, DBPSK IEEE802.11g/n: OFDM with BPSK, QPSK, 16QAM, 64QAM
Frequency Band	America / FCC: 2.412~2.462 GHz (11 channels ) 5.180~5.240 GHz & 5.745~5.825 GHz ( 9 channels ) Europe CE / ETSI: 2.412~2.472 GHz ( 13 channels ) 5.180~5.240 GHz ( 4 channels ) Japan(JP): 2.412~2.484 GHz ( 13 channels ) 5.180~5.240 GHz ( 4 channels )
Transmission Rate	IEEE802.11b: 1/2/5.5/11 Mbps IEEE802.11a/g: 6/9/12/18/24/36/48/54 Mbps IEEE802.11n(40MHz): UP to 300 Mbps
Transmit Power	IEEE802.11a:13dBm ±1.5dBm IEEE802.11b:16dBm ±1.5dBm IEEE802.11g:14dBm ±1.5dBm IEEE802.11n(2.4G@20MHz):13dBm ±1.5dBm IEEE802.11n(2.4G@40MHz):12dBm ±1.5dBm IEEE802.11n(5G@20MHz):12dBm ±1.5dBm IEEE802.11n(5G@40MHz):12dBm ±1.5dBm
Receiver Sensitivity	IEEE802.11a: -68dBm ±2dBm@54Mbps IEEE802.11b: -82dBm ±2dBm@11Mbps IEEE802.11g: -68dBm ±2dBm@54Mbps IEEE802.11n(2.4G@20MHz,MCS15): -64dBm ±2dBm IEEE802.11n(2.4G@40MHz,MCS15): -60dBm ±2dBm IEEE802.11n(5G@20MHz,MCS15): -64dBm ±2dBm IEEE802.11n(5G@40MHz,MCS15): -60dBm ±2dBm
Encryption Security	WEP : (64-bit ,128-bit key supported) WPA / WPA2 : 802.11i(WEP and AES encryption) WPA-PSK (256-bit key pre-shared key supported) 802.1X Authentication supported TKIP encryption
Wireless Security	SSID broadcast disable
Protocol Support
Protocol	ARP,BOOTP, DHCP, DNS, HTTP, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, STP (IEEE 802.1D)
LED Indicators
Power Indicator	2 x LEDs, Green for Power Indicator
10/100Base-T(X) Port Indicator	2 x LEDs, Green for port Link/Act at 100Mbps, Amber for port Link/Act at 10Mbps
WLAN LEDs	1 x LEDs, Green for WLAN Link /Act
Fault Indicator	1 x LED, Red for Ethernet link down or power down indicator
Fault contact
Relay	Relay output to carry capacity of 3A at 24VDC(5-pin M12 A-Coding)
Power
Redundant Input Power	Dual Power Inputs. 12~48 VDC on 5-pin M23 connector (24 VDC Typ.)
Power Consumption (Typ.)	8W
Overload Current Protection	Present
Reverse Polarity Protection	Present
Physical Characteristic
Enclosure	IP-40
Dimension (W x D x H)	125(W) x 65(D) x 196(H) mm (4.92 x 2.56 x 7.72 inch.)
Weight (g)	825g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-10 to 60°C (14 to 140°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory approvals
EMI	FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2)
EMS	EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Shock	IEC60068-2-27, EN61373
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6 , EN61373
Safety	EN60950-1
