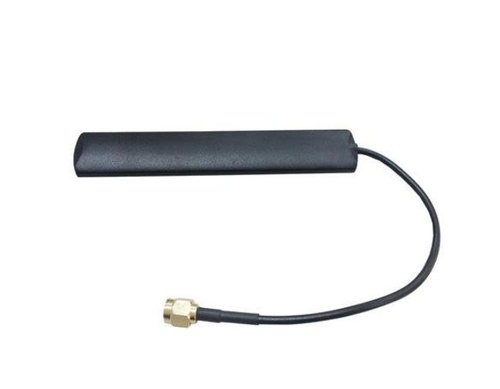

Moxa ANT-5G-OSM-03-1m - 3 dBi LTE/5G NR omnidirectional adhesive antenna, 1 m cable
by MOXA

ANT-5G-OSM-03-1m - The ANT-5G-OSM-03 Series is a lightweight omnidirectional antenna with adhesive tape, suitable for LTE and 5G NR bands. The antenna provides a gain of 4 dBi and is designed to operate in temperatures ranging from -30 to 70C.

Antenna Characteristics

• Frequency

  • 617 to 960 MHz
    1452 to 2690 MHz
    3300 to 5850 MHz
    5850 to 7150 MHz

• Antenna Type

  • Omni-directional

• Typical Antenna Gain

  • 1.5 dBi @ 617 to 960 MHz
    4 dBi @ 1452 to 2690 MHz
    4 dBi @ 3300 to 5850 MHz
    4 dBi @ 5850 to 7150 MHz

• Connector

  • SMA (male)

• Impedance

  • 50 ohms

• Polarization

  • Vertical
    Linear

• V.S.W.R.

  • = 2.5 @ 617 to 960 MHz
    = 2.0 @ 1452 to 2690 MHz
    = 2.0 @ 3300 to 5850 MHz
    = 2.5 @ 5850 to 7150 MHz

Physical Characteristics

• Weight

  • 24 g (0.05 lb)

• Dimensions

  • 110 x 20 x 5.4 mm (4.33 x 0.79 x 0.21 in)

• Radome Color

  • Black

• Radome Material

  • Plastic

• Cable

  • RG-174

• Cable Length

  • 1 m

• Installation

  • Adhesive mount

Environmental Limits

• Operating Temperature

  • -30 to 70C (-22 to 158F)

• Storage Temperature (package included)

  • -40 to 85C (-40 to 185F)

• Ambient Relative Humidity

  • 5 to 95% (30C, non-condensing)
