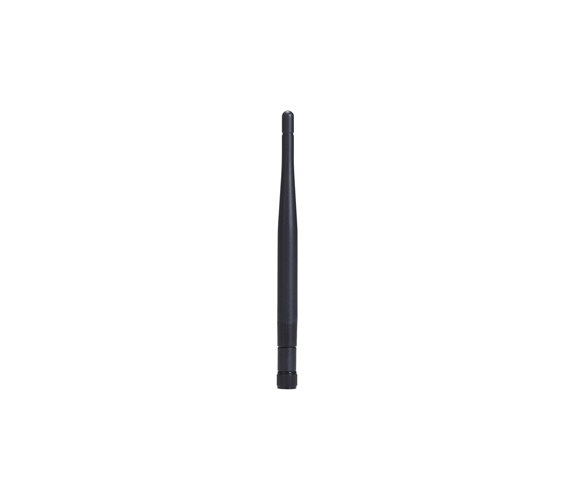

Moxa ANT-WDB-ARM-0202 plus ADP - 1.8/1.8 dBi, RP-SMA (male) antenna with 1 SMA adapter
by MOXA

Introduction

The ANT-WDB-ARM-0202 is an omni-directional lightweight compact dual-band indoor antenna with RP-SMA (male) connectors. The antenna provides a gain of 2/2 dBi and is designed to operate in temperatures from -40 to 75°C.

Field Patterns

Frequency: 2.4 GHz

Frequency: 5 GHz

• Frequency

  2.4 to 2.5, 4.9 to 5.825 GHz

• Antenna Type

  Omni-directional

• Typical Antenna Gain

  2/2 dBi

• Connector

  RP-SMA (male)

• Impedance

  50 ohms

• Polarization

  Linear

• HPBW/Horizontal

  360°

• V.S.W.R.

  2:1 max.

• Power Handling

  1 W (max.)

• Weight

  9.65 g (0.02 lb)

• Length

  136 mm (5.35 in)

• Radome Color

  Black

• Radome Material

  Plastic

• Installation

  Straight mount

• Operating Temperature

  -40 to 75°C (-40 to 167°F)

• Storage Temperature (package included)

  -40 to 75°C (-40 to 167°F)

• Ambient Relative Humidity

  5 to 95% (30°C, non-condensing)
