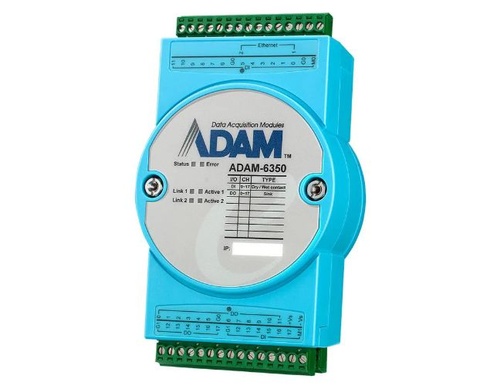

Advantech ADAM-6350-A1 is an innovative OPC UA I/O Module with Modbus protocol, which can link with SCADA and the cloud without the need for gateways. Moreover, through the OPC UA and built-in security IC, data is highly secured throughout the OT and IT levels.
ADAM-6350-A1.html
| Category |
Attribute |
Value |
| Counter/Encoder Input |
Channels |
6 |
| Counter/Encoder Input |
Max. Input Frequency |
3 kHz |
| Isolated Digital Input |
Channels |
18 |
| Isolated Digital Input |
Input Voltage |
Dry contact Logic level 0: close to GND, Logic level 1: open. Wet Contact Logic level
0: 0~3 VDC, Logic level 1: 10~30 VDC |
| Isolated Digital Input |
Isolation Protection |
2,500 VDC |
| Isolated Digital Output |
Channels |
18 |
| Isolated Digital Output |
Isolation Protection |
2,500 VDC |
| Isolated Digital Output |
Output Type |
Sink |
| Isolated Digital Output |
Sink Current |
100 mA max./channel |
