Antaira STS-1915S-PA - RS-232 To RS-422/485 Converter w/Surge Protection, Port-Powered, Power Adapter Included
by ANTAIRA
|
|
|
|
- Easy RS422/485 Conversion from RS232 Port
- Supports 4-wire RS422 , 2-wire and 4-wre RS485 applications
- Supports RS485 Auto Transceiver Turn Around With the Unique Featured ATTA Hardware
- Automatic Baud Rate Detection
- DB9-Female (RS232) to 5-pin Terminal Block Connector Conversion
- Compact Size for Critical Applications
- No Driver Required for All Operating Systems
- 5V/1A 100~240VAC Power Adapter included
|
|
|
STS-1915S-PA
Antaira Technologies STS-1915S-PA is a RS232 to RS422/485 serial converter with 5V/1A 100-240VAC Power Adapter. Designed to work as either a client or server, the unit is able to provide RS422/485 serial communication through the standard RS232 port.

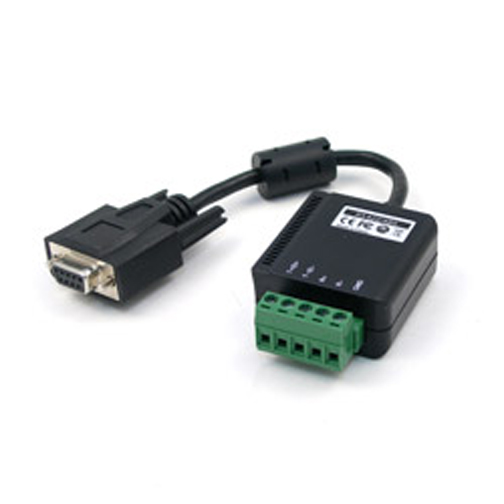

The STS-1915S is equipped with a standard DB9 female connector and serial terminal block for flexible wiring. The serial converter can be either powered by the RS232 line voltage or a USB to barrel 5VDC input jack.
This item can convert between unbalanced RS232 full-duplex signals to balanced RS422/485 full or half duplex signals. The RS485 serial is able to be configured in either a two or four wire configuration. The serial converter is compatible with both new and legacy RS422 and RS485 devices.
SPECIFICATIONS
Connector
- RS-232: DB9 Female
- RS-422/485: 5-pin Terminal Block
No. of Ports
RS-232 Signal
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Signal
- TxD+, TxD-, RxD+, RxD-, GND
RS-485 Signal (2-wire)
RS-485 Signal (4-wire)
- TxD+, TxD-, RxD+, RxD-, GND
Baud Rate
- Automatic Baud Rate Detection
Power Requirement
- 5V/ 30mA (RS-232 Line Powered)
Operating Temperature
Storage Temperature
Humidity
|
|
|
|
