| EPM-3032 Specifications |
| • Serial Interface |
| Serial Standards |
2 RS-232/422/485 ports, software-selectable (DB9 male) |
| Isolation |
2 kV digital isolation |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate |
50 bps to 921.6 kbps (non-standard baudrates supported; see user’s manual for details) |
| • Serial Signals |
| RS-232 |
TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • Physical Characteristics |
| Weight |
137 g |
| Dimensions |
104 x 121 x 34 mm (4.09 x 4.76 x 1.34 in) |
| • Environmental Limits |
| Operating Temperature |
-40 to 70°C (-40 to 158°F), EN 50155 Class TX |
| EPM-3112 Specifications |
| • CANbus Communication |
| Interface |
2 optically isolated CAN2.0A/2.0B compliant ports |
| CAN Controller |
Phillips SJA1000T |
| Signals |
CAN-H, CAN-L |
| Isolation |
2 kV digital isolation |
| Speed |
1 Mbps |
| Connector Type |
DB9 male |
| • Physical Characteristics |
| Weight |
127 g |
| Dimensions |
104 x 121 x 34 mm (4.09 x 4.76 x 1.34 in) |
| • Environmental Limits |
| Operating Temperature |
-25 to 55°C (-13 to 131°F), EN 50155 Class T1 |
| EPM-3338 Specifications |
| • EPM-DK03 Mini PCI Express Interface |
| Interface |
• Slot 1: PCI-Express V1.0 (one lane) / USB 2.0
• Slot 2: USB 2.0 |
| USB 2.0 Bus SIM Card Holder |
Reserved for cellular applications |
| • Physical Characteristics |
| Weight |
220 g |
| Dimensions |
104 x 121 x 34 mm (4.09 x 4.76 x 1.34 in) |
| • Environmental Limits |
| Operating Temperature |
-25 to 55°C (-13 to 131°F), EN 50155 Class T1 |
| • GPS Interface |
| Receiver Types |
• 50-channel u-blox 6 LEA-6 engine
• GPS L1 C/A code
• GALILEO L1 open service (with upgrade)
• SBAS: WAAS, EGNOS, MSAS, GAGAN |
| Acquisition |
• Cold starts: 28s
• Warm starts: 28s
• Aided starts: 1s
• Hot starts: 1s |
| Sensitivity |
• Tracking: -160 dBm
• Reacquisition: -160 dBm
• Cold starts: -147 dBm |
| Timing accuracy |
• RMS: 30 ns
• 99%: <60 ns
• Granularity: 21 ns |
| Accuracy |
• Position: 2.5m CEP
• SBAS: 2.0m CEP |
| Protocols |
NMEA, UBX binary, max. update rate: 5Hz (ROM version ) |
| Time Pulse |
0.25Hz to 1KHz |
| Velocity Accuracy |
0.1 m/s |
| Heading Accuracy |
0.5 degrees |
| A-GPS |
Supports AssistNow Online and AssistNow Offline, OMA SUPL compliant |
| Operational Limits |
Velocity:500m/s (972 knots) |
| Wi-Fi Module |
| • This Wi-Fi module must be installed by the purchaser |
| Standards Compatibility |
IEEE 802.11a/b/g/n |
| Chipset |
Mac/BB/RF Atheros AR9382 |
| Host Interface |
Half Mini PCI Express |
| Radio Antenna |
2 x U.FL connectors, 2T2R |
| Operating Frequencies |
• 802.11b/g/n ISM Band: 2.412 ~ 2.4835 GHz
• 802.11a ISM Band: 5.15 ~ 5.85 GHz |
| Modulation |
• 802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
• 802.11b: DSSS (DBPSK, DQPSK, CCK)
• 802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
• 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| Transmission Power (2T) |
• 802.11a: 12dBm ± 1.5dBm
• 802.11b: 17dBm ± 1.5dBm
• 802.11g: 16dBm ± 1.5dBm
• 802.11gn HT20: 17dBm ± 1.5dBm@MCS15
• 802.11gn HT40: 16dBm ± 1.5dBm@MCS15
• 802.11an HT20: 13dBm ± 1.5dBm@MCS15
• 802.11an HT40: 12dBm ± 1.5dBm@ |
| Receive Sensitivity (2R) |
• 802.11a: -76dBm ±2dBm@54Mbps
• 802.11b: -85dBm ±2dBm@11Mbps
• 802.11g: -76dBm ±2dBm@54Mbps
• 802.11gn HT20: -75dBm ±2dBm@MCS7
• 802.11gn HT40: -71dBm ±2dBm@MCS7
• 802.11an HT20: -71dBm ±2dBm@MCS7
• 802.11an HT40: -71dBm ± |
| HSPA Cellular Module |
| • This cellular module must be installed by the purchaser |
| Frequency Bands |
• UMTS/HSDPA: Triple band, 850/1900/1900/2100 MHz
• GSM/GPRS/EDGE: Quad band, 850/900/1800/1900 MHz
• Dual-band EV-DO/CDMA: 800/1900 MHz
• Prepared for UMTS - AWS and EV-DO/CDMA: 2100 MHz |
| Advanced RF Technologies |
• Receive Diversity on all HSPA/UMTS/EV-DO/CDMA bands
• Receive equalization
• Standalone GPS and gpsOneXTRA™ |
| Data Speeds |
• HSDPA/HSUPA DL/UL: 14.4 Mbps/5.76 Mbps
• WCDMA DL/UL: 384 kbps/384 kbps
• GSM DL/UL: 14.4 kbps/14.4 kbps
• GPRS DL/UL: 85.6 kbps/42.8 kbps
• EDGE DL/UL: 236.8 kbps/118.4 kbps
• EV-DO FL/RL: 3.1 Mbps/1.8 Mbps
• CDMA 1xRTT FL/RL: 153 kb |
| Power Class |
• HSPA/WCDMA 800/850/900/1900/2100 Mhz: Power Class 3
• GSM/GPRS 850/900 Mhz: Power Class 4
• GSM/GPRS 1800/1900 Mhz: Power Class 1
• EDGE 850/900/1800/1900 Mhz: Power Class E2 |

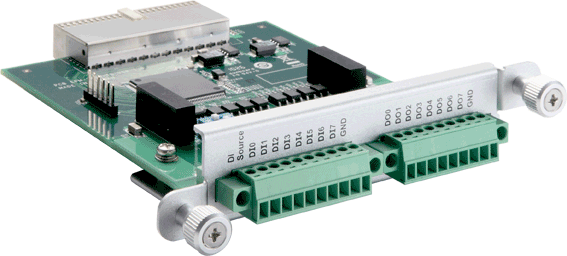

| EPM-3438 Specifications |
| • Digital Input |
| Input Channels |
8, source type |
| Input Voltage |
0 to 30 VDC at 25 Hz |
| Digital Input Levels for Dry Contacts |
• Logic level 0: Close to GND
• Logic level 1: Open |
| Digital Input Levels for Wet Contacts |
• Logic level 0: +3 V max.
• Logic level 1: +10 V to +30 V (Source to DI) |
| Counter Frequency |
2 KHz (DI0 only) |
| Connector Type |
10-pin screw terminal block (8 DI points, DI Source, GND) |
| Isolation |
3 kV optical isolation |
| • Digital Output |
| Output Channels |
8, sink type, 0 to 30 VDC |
| Output Current |
Max. 200 mA per channel |
| On-state Voltage |
24 VDC nominal, open collector to 30 VDC |
| Connector Type |
9-pin screw terminal block (8 DO points, GND) |
| Isolation |
3 kV optical isolation |
| • Physical Characteristics |
| Weight |
120 g |
| Dimensions |
104 x 121 x 34 mm (4.09 x 4.76 x 1.34 in) |
| • Environmental Limits |
| Operating Temperature |
-40 to 70°C (-40 to 158°F), EN 50155 Class TX |
| EPM-3552 Specifications |
| • Display |
| Graphics Controller |
DisplayLink DL-195 |
| VGA Interface |
15-pin D-sub connector (female) |
| DVI Interface |
24-pin DVI-I connector (female) |
| Resolution |
Up to 1920 x 1600 (2048 x 1152 for wide screen) resolution |
| • Physical Characteristics |
| Weight |
130 g |
| Dimensions |
104 x 121 x 34 mm (4.09 x 4.76 x 1.34 in) |
| • Environmental Limits |
| Operating Temperature |
-25 to 55°C (-13 to 131°F), EN 50155 Class T1 |
| EPM-DK01 Specifications |
| • PCI Express Mini Slot |
| Interface |
PCI-Express V1.0 (one lane) |
| USB 2.0 Bus SIM Card Holder |
Reserved for Cellular applications |
| • Mini PCI Slot |
| Interface |
PCI |
| Bus Frequency |
32-bit, 33 MHz PCI |
| • Physical Characteristics |
| Weight |
117 g |
| • Environmental Limits |
| Operating Temperature |
-40 to 70°C (-40 to 158°F), EN 50155 Class TX |
| EPM-DK02 Specifications |
| • PCI Express Mini Slot |
| Interface |
• Slot 1: PCI-Express V1.0 (one lane) / USB 2.0
• Slot 2: USB 2.0 |
| USB 2.0 Bus SIM Card Holder |
Reserved for cellular applications |
| • Physical Characteristics |
| Weight |
125 g |
| • Environmental Limits |
| Operating Temperature |
-40 to 70°C (-40 to 158°F), EN 50155 Class TX |
| EPM-DK03 Specifications |
| • PCI Express Mini Slot |
| Interface |
• Slot 1: PCI-Express V1.0 (one lane) / USB 2.0
• Slot 2: USB 2.0 |
| USB 2.0 Bus SIM Card Holder |
Reserved for cellular applications |
| • Physical Characteristics |
| Weight |
220 g |
| Dimensions |
104 x 121 x 34 mm (4.09 x 4.76 x 1.34 in) |
| • Environmental Limits |
| Operating Temperature |
-25 to 55°C (-13 to 131°F), EN 50155 Class T1 |
| • GPS Interface |
| Receiver Types |
• 50-channel u-blox 6 LEA-6 receiver
• GPS L1 C/A code
• GALILEO L1 open service (with upgrade)
• SBAS: WAAS, EGNOS, MSAS, GAGAN |
| Acquisition |
• Cold starts: 28s
• Warm starts: 28s
• Aided starts: 1s
• Hot starts: 1s |
| Sensitivity |
• Tracking: -160 dBm
• Reacquisition: -160 dBm
• Cold starts: -147 dBm |
| Timing accuracy |
• RMS: 30 ns
• 99%: <60 ns
• Granularity: 21 ns |
| Accuracy |
• Position: 2.5m CEP
• SBAS: 2.0m CEP |
| Protocols |
NMEA, UBX binary, max. update rate: 5Hz (ROM version ) |
| Time Pulse |
0.25Hz to 1KHz |
| Velocity Accuracy |
0.1 m/s |
| Heading Accuracy |
0.5 degrees |
| A-GPS |
Supports AssistNow Online and AssistNow Offline, OMA SUPL compliant |
| Operational Limits |
Velocity:500m/s (972 knots) |
