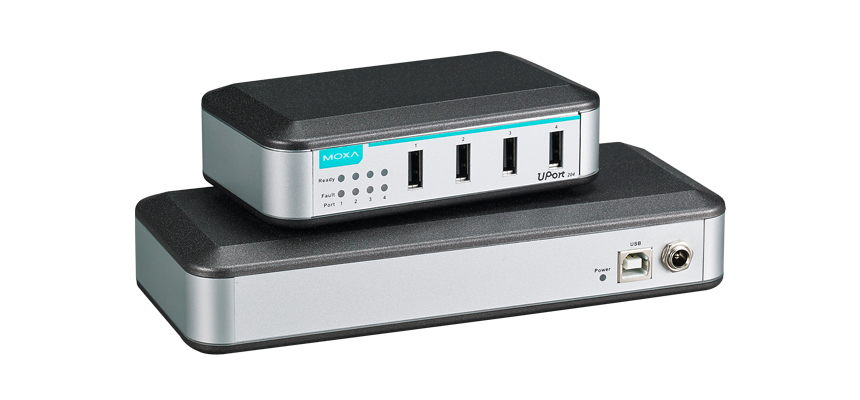

UPort 204 - 4 Port entry-level USB Hub, w/ adapter by MOXA

UPort 204 - 4 Port entry-level USB Hub, w/ adapter

Write a review Write a review

> Hi-Speed USB 2.0 for up to 480 Mbps USB transmission
> USB-IF Certification
> Compatible with USB 1.1 devices
> 15 KV ESD Level 4 protection for all USB ports
> Wall mountable
> Comprehensive diagnostic LEDs
> Full 500 mA of power per port
> Choose bus power or external power




Mfg SKU # : UPort 204
Our Price : $163.00
Stock :15
Quantity :


The UPort™ 204 are entry-level USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission through each port, even for heavy-load applications. The UPort™ 204 have received USB-IF Hi-Speed certification, which is an indication that both products are reliable, high quality USB 2.0 hubs. In addition, the hubs are fully compliant with the USB Plug & Play spec and provide a full 500 mA of power per port, ensuring that your USB devices will function properly. The UPort™ 204 hubs' support of 12-40 VDC power makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.


USB-IF Certification

The UPort™ 204 USB 2.0 entry-level USB hubs have passed USB-IF (USB Implementers Forum) certification. USB-IF verifies a number of strict electrical requirements for the Hi-Speed USB operation of USB hubs designed to the USB 2.0 specification. This means that the UPort™ 204 support Hi-Speed USB 2.0 for up to 480 Mbps USB transmission, which is fully compliant with interoperability requirements, is enough power for devices to function, and provides for a successful transition back to high-speed operation from the suspend state.


ESD Level 4 Protection

Electrostatic discharge (ESD) could be as severe as having more than one thousand volts of ESD with a high rise time (dv/dt) break through the junction layer of protective devices. In order to avoid serious damage, Moxa's UPort™ 204 USB hubs provide ESD level 4 (contact 8 KV, air 15 KV) protection, which increases the quality and value of the user's end-product.


 USB Interface
Compliance USB 1.1/2.0 compliant
Upstream 1 USB port (Type B connector)
Downstream UPort 204: 4 USB ports, Type A connectors
UPort 207: 7 USB ports, Type A connectors
Speed 480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB)
Supply Current 500 mA max. per channel
 Physical Characteristics
Housing Polycarbonate (PC)
Weight (product only)
UPort 204: 800 g (1.76 lb)
UPort 207: 875 g (1.93 lb)
Dimensions UPort 204: 70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in)
UPort 207: 80 x 35 x 185 mm (3.15 x 1.38 x 4.72 in)
 Environmental Limits
Operating Temperature 0 to 60°C (32 to 140°F)
Storage Temperature -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Altitude Up to 2000 m
Note Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
 Standards and Certifications
Safety UL 508, LVD
EMI EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Green Product RoHS, CRoHS, WEEE
 Power Requirements
Input Voltage 12 to 40 VDC external power
Power Consumption UPort 204: 1210 mA @ 12 VDC, 610 mA @ 24 VDC, 430 mA @ 36 VDC
UPort 207: 2170 mA @ 12 VDC, 1070 mA @ 24 VDC, 730 mA @ 36 VDC
 MTBF (mean time between failures)
Time UPort 204: 1,577,573 hrs
UPort 207: 1,059,201 hrs
Database Telcordia (Bellcore), GB
