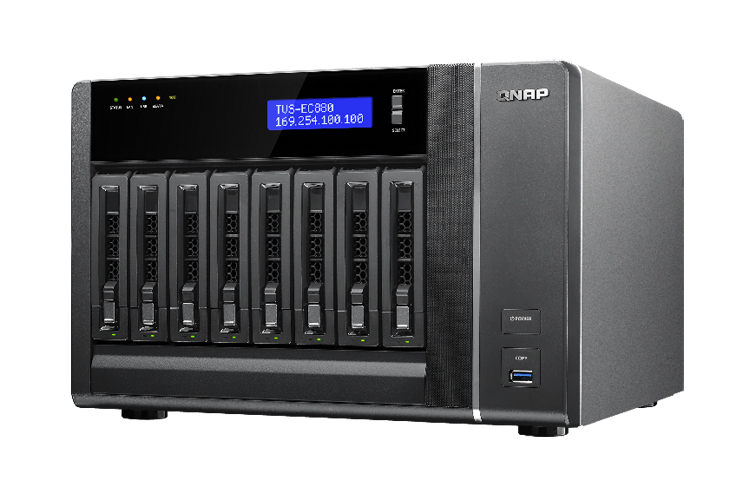

TVS-EC880-E3-8G-US - 8-Bay Edge Cloud Turbo vNAS, SATA 6G, 4LAN, 10G-ready (8GB version)
by QNAP
|
|
|
|
- 2,000+ MB/s throughput and 226,000+ IOPS
- Two internal mSATA cache ports and up to 4 SSDs for caching, beneficial to IOPS demanding applications
- Scalable design, up to 384TB raw capacity
- Enjoy 4K2K UHD videos HDMI local display and transcoding with new HD Station 2.0
- Monitor and manage multiple QNAP Turbo NAS with Q’center Multi-NAS management system
- Use the TVS-EC880 as a PC with exclusive QvPC Techonology
- Virtualization-ready, centralized data storage, backup, sharing and disaster recovery
| Mfg SKU # : | TVS-EC880-E3-8G-US |
|
|
|
QNAP TVS-EC880, featuring the easy-to-use QTS operating system, provides a reliable and scalable NAS solution to fulfill data backup, file synchronization and remote access. The TVS-EC880 is 10GbE-ready, delivers exceptional performance, and supports cross-platform file sharing, comprehensive backup solutions, iSCSI and virtualization applications, and many practical business functions, making it the ideal choice for SMBs to secure important business data. It also includes abundant multimedia applications backed by its powerful hardware specifications.
| Operating System |
| QTS 4.1 (embedded Linux) |
|
| Disk Management |
- QNAP Flexible volume
- Thin-provisioning with space reclamation supported
- Online Volume Expansion
- Online Storage Pool Expansion (via QNAP RAID expansion enclosure)
- Single Disk, JBOD, RAID 0, 1, 5, 6, 10
- RAID Hot Spare and Global Hot Spare
- Online RAID Capacity Expansion and Online RAID Level Migration
- Bad Block Scan and Hard Drive S.M.A.R.T.
- Bad Block Recovery
- RAID Recovery
- Bitmap Support
|
|
| Supported Clients |
| Windows Server 2003 onward, Apple Mac OS X onward, Linux & UNIX |
|
| Power Management |
- Wake on LAN*
- Internal Hard Drive Standby Mode
- Scheduled Power on/off
- Automatic Power on after Power Recovery
- USB and Network UPS Support with SNMP Management
|
|
| Supported Browsers |
- Microsoft Internet Explorer 10+
- Mozilla Firefox 8+
- Apple Safari 4+
- Google Chrome
|
|
| Access Right Management |
- Batch Users Creation
- Import/Export Users
- User Quota Management
- Local User Access Control for CIFS, AFP, FTP, and WebDAV,
- Subfolder Permissions Support for CIFS/SMB, AFP, FTP, and Web File Manager
|
|
| Multilingual Support |
| Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
|
| Domain Authentication Integration |
- Microsoft Active Directory (AD)
- LDAP Server
- LDAP Client
- Domain Users Login via CIFS/SMB, AFP, FTP, and File Station
|
|
| File System |
- Internal Hard Drive: EXT4
- External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+
|
|
| Web Administration |
- Multi-window, Multi-tasking based System Management
- Movable Icons and Personalized Desktop
- Smart Toolbar and Dashboard for Neat Display on System Status
- Smart Fan Control
- Dynamic DNS (DDNS)
- SNMP (v2 & v3)
- Resource Monitor
- Network Recycle Bin for File Deletion via CIFS/SMB and AFP
- Automatic Cleanup
- File Type Filter
- Comprehensive Logs (Events & Connection)
- Syslog Client
- Firmware Live Update
- System Settings Backup and Restore
- Restore to Factory Default
- Mobile App Qmanager for Remote Monitoring
|
|
| Networking |
- TCP/IP (IPv4 & IPv6: Dual Stack)
- Quad Gigabit NICs with Jumbo Frame*
- Failover
- Multi-IP Settings
- Port Trunking/NIC Teaming (Modes: Balance-RR, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-TLB and Balance-ALB)
- Optional Dual-port 10 GbE and 1 GbE Network Expansion Cards*
- Service Binding Based on Network Interfaces*
- Proxy Client, Proxy Server
- DHCP Client, DHCP Server
- Protocols: CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
- UPnP & Bonjour Discovery
- USB Wi-Fi Adapter Support
|
|
| File Server |
- File Sharing across Windows, Mac, and Linux/UNIX
- Protocols: CIFS/SMB, AFP, NFS, FTP/FTPS, HTTP/HTTPS (Web File Manager), WebDAV
- Windows ACL
- Advanced Folder Permission for CIFS/SMB, AFP, FTP
- Shared Folder Aggregation (CIFS/SMB)
|
|
| Security |
- IP Filter & Policy-based Automatic IP Blocking
- Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
- Encrypted Access: HTTPS, FTP with SSL/ TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication (Rsync over SSH)
- CIFS Host Access Control for Shared Folders
- Antivirus Protection
- FIPS 140-2 Validated AES 256-bit Volume-based Data Encryption**
- AES 256-bit External Drive Encryption*
- Importable SSL Certificate
- Instant Alert via E-mail, SMS, Beep, and LCD Panel*
|
|
| File Station |
- Supports ISO Mounting (Up to 256 ISO Files)
- Creates and Sends Download Links for Sharing Public Files with Expiration Time and Password Protection
- Drag-n-drop Files via Chrome and Firefox Browsers
- Photo, Music, and Video Preview and Playback Empowered by Built-in Transcoding Technology
- File Compression (ZIP or 7z)
- Advanced Search
- Mobile App: Qfile for File Browsing and Management
|
|
| Powerful All-in-one server |
| FTP Server |
- FTP over SSL/TLS (Explicit)
- Concurrent Connections: Max 256
- Passive FTP Port Range Control
- FTP Bandwidth & Connection Control
- Supports FXP & Unicode
|
|
| Syslog Server |
- Centralized Log Monitoring and Archiving
- Immediate Email Alerts
- Supports Log Filtering
|
|
| Backup Station |
- Remote Replication Server (over Rsync)
- Real-time Remote Replication (RTRR) to another QNAP NAS or FTP Server
- Works as Both RTRR Server & Client with Bandwidth Control
- Real-time & Scheduled Backup
- Encryption, Compression, File Filter, and Transfer Rate Limitation
- Encrypted Replication between QNAP NAS Servers
- Desktop Backup by QNAP NetBak Replicator for Windows
- Apple Time Machine Support with Backup Management
- Data Backup to Multiple External Storage Devices
- Synchronizes with Cloud Storage: Amazon S3, ElephantDrive, Dropbox, and Google Cloud Storage
- Third Party Backup Software Support: Veeam Backup & Replication, Acronis True
- Image, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper, etc.
|
|
| Print Server |
- Max No. of Printers: 3
- Supports Internet Printing Protocol
- Print Job Display and Management
- IP-based and Domain Name-based Privilege Control
- Supports Apple Bonjour Printing
|
|
| iSCSI (IP SAN) |
- iSCSI Target
- Multi-LUNs per Target
- Up to 256 Targets/LUNs Combined
- Supports LUN Mapping & Masking
- Block-based LUN
- Thin-provisioned LUN with Space Reclamation supported
- Online LUN Capacity Expansion
- Supports SPC-3 Persistent Reservation
- Supports MPIO & MC/S
- iSCSI LUN Backup, One-time Snapshot, and Restore
- iSCSI Connection and Management by QNAP Finder (Windows)
- Virtual Disk Drive (via iSCSI Initiator)
- Stack Chaining Master
- Max No. of Virtual Disk Drives: 8
|
|
| Database Server |
- Built-in MySQL Server
- Web-based Management via phpMyAdmin
|
|
| Server Virtualization & Clustering |
- VMware vSphere (ESX/ESXi 4.x, 5.x)
- VMware VAAI for iSCSI and VAAI for NAS
- vSphere Plug-in
- Citrix XenServer (6.0)
- Windows Server 2012 Hyper-V
- Supports Microsoft ODX
- QNAP SMI-S provider for Microsoft SCVMM
- Windows Server 2012 Failover Clustering
|
|
| RADIUS Server |
- Centralized Account Management and Authentication for Network Access
- Supports 802.1x Security Authentication
- TFTP Server with PXE Booting (Read-only)
|
|
| Virtualization Station |
- Support up to 8 Virtual Machine (32GB RAM is required) creating to run an operating system such as Windows, Linux, Unix.
- VM import from Virtual Appliances
- VM export into a virtual appliance in OVF / QVM format
- VM clone
- VM snapshot
- HTML5 based shared remote console
|
|
| VPN Server |
- Secure Remote Access: PPTP & OpenVPN VPN services
- Remote Access to Other Resources on Local Network
- Max No. of Clients: 30
|
|
| Storage Plug & Connect via Windows Qfinder Pro by QNAP |
- Create and Map Shared Folders
- Create and Connect to iSCSI Target/LUN
|
|
| Surveillance Station |
- Supports over 1,400 IP Cameras
- Includes 8 Free Camera License
- Up to 80 Camera Channels via Additional License Purchase*
- Intelligent Video Analytics (IVA) for Advanced Video Search
- Visual Aid by E-map
- Surveillance Client for Mac
- Mobile App: Vmobile (iOS and Android)
|
|
| myQNAPcloud Service |
- Private Cloud Storage and Sharing
- Free Host Name Registration (DDNS)
- Auto Router Configuration (via UPnP)
- CloudLink for Remote Access without Complicated Router Setup
- myQNAPcloud Connect for Easy VPN Connection (Windows VPN Utility)
|
|
| Antivirus |
- Supports ClamAV (free) and McAfee (optional purchase ) virus scanner.
- Protection against Viruses, Trojans, and Other Threats
- Free Virus Databases Update on Manual or Scheduled Basis
- Multiple Scan Tasks (Max: 64, Concurrent: 5) with Custom Folder Selection and Scheduled Scanning
- Email Notification upon Task Completion or Virus Detection
- Quarantines or Deletes Infected Files
|
|
| Qsync |
- Syncs Files among Multiple Devices through the NAS
- Option for Not Removing Files on the NAS during Synchronization
- Selective Synchronization
- Shares Securely with SSL
- Team Folder
- Shares Files by Links via E-mail
- Uploads Photos or Videos to Qsync Folder Automatically via Qfile
- Restores Files from Network Recycle Bin
- File Name Conflict Policy
- Option for Filter Settings
- Privilege Control for Qsync Users
- Supports Windows & Mac OS
|
|
| APP Center |
| Add New Features by Online Installation of over 90 Official and Community Software |
|
| Web Server |
- HTTP/HTTPS Connections
- Built-in MySQL Server
- Web-based Management via phpMyAdmin (QPKG)
- Virtual Hosts: Max 32
|
|
| Add-ons |
| (The actual available software add-ons may vary depending on the NAS platform) |
|
* This feature may vary according to different models.
** The data encryption functions may not available in accordance with the legislative restrictions of some countries.
Design and specifications are subject to change without notice. |
| CPU |
Intel® Xeon® E3-1245 v3 3.4 GHz Quad Core Processor or above |
| Memory |
TVS-EC880-E3-8G:
System memory: 8 GB DDR3 RAM (non-ECC Memory)
Memory module pre-installed: 4 GB x2
Total memory slots: 4
Memory expandable up to: 32 GB (8GB x4)
Note: When upgrading RAM to more than 24GB, the original 4GB RAM modules must be removed.
Note: For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide |
| Flash Memory |
512MB DOM |
| Internal Cache Port |
Two mSATA port on board for read caching
Note: The standard system is shipped without mSATA flash. For the optional mSATA flash, please visithttp://shop.qnap.com/ |
| Hard Drive |
8 x 3.5-inch SATA 6Gbps/3Gbps hard drive or 2.5-inch SATA, 6Gbps/3Gbps hard drive SSD hard drive
NOTE:
- The standard system is shipped without hard drives.
- For the hard drive compatibility list, please visit www.qnap.com/compatibility
|
| Hard Drive Tray |
8 x hot-swappable and lockable tray |
| LAN Port |
4 x Gigabit RJ-45 Ethernet port
(Expandable up to 6 x 1 Gb LAN or 2 x 10 Gb + 4 x 1 Gb LAN by installing optional dual-port 10 Gb and 1 Gb network card)
Note:
1. For the optional network card compatibility list, please visit Compatibility list
2. For the information of network card installation, please refer to chapter 6 in the Turbo NAS Hardware Manual. |
| LED Indicators |
Status, LAN, USB, eSATA and 10 GbE, |
| USB |
3x USB 3.0 port (1 front, 2 rear)
6x USB 2.0 port (rear)
Support USB printer, pen drive, USB hub, and USB UPS etc. |
| Buttons |
System: Power button and reset button |
| Alarm Buzzer |
System warning |
| Form Factor |
Tower |
| Dimensions |
217.5(H) x 327(W) x 321.2(D) mm
8.56(H) x 12.8(W) x 12.65(D) inch |
| Weight |
Net weight (NAS only) : 12.52 kg/27.61 lb
Gross weight (with packing and accessories) : 19.75 kg/43.54 lb |
| Sound Level (dB) |
Standby: 30.3 dB
In operation: 31.2 dB
(with 8 x 1TB hard drives installed) |
| Power Consumption (W) |
Sleep mode: 68W
In Operation: 130W
(with 8 x 1TB hard drives installed) |
| Temperature |
0-40˚C |
| Relative Humidity |
5~95% non-condensing, wet bulb: 27˚C. |
| Power Supply |
Input: 100-240V AC, 50/60Hz, Output: 350W |
| PCIe Slot |
1 (1* PCIe Gen3 x8) |
| Fan |
2 x 12 cm smart cooling fan |
| 1. |
LED Indicators:
Status, LAN, USB, eSATA, 10 GbE, LAN |
10. |
PCIe Slot x1 |
| 2. |
HDD Status LED |
11. |
USB 2.0 Port x6 |
| 3. |
Select Button |
12. |
Password & Network Settings Reset Button |
| 4. |
Enter Button |
13. |
HDMI x1 |
| 5. |
Tray Lock |
14. |
USB 3.0 Port x2 |
| 6. |
Tray Release Button |
15. |
K-Lock Security Slot |
| 7. |
One Touch Copy Button/ USB 3.0 Port |
16. |
Gigabit LAN Port x4 |
| 8. |
Power Button |
17. |
Power Connector |
| 9. |
eSATA Port x2 |
|
|
|
|
|
