24VDC or 24VAC, -40 to 75 Degree C operating temperature
by MOXA

-40 to 50°C or -40 to 75°C (T model) operating temperature, without heater or fan
1/2.7” progressive scan CMOS camera with maximum 1280 x 800 resolution
High quality video image with WDR and DNR
Up to 3 video streams with H.264 and MJPEG
3 to 9 mm day-and-night vari-focal lens with a built-in ICR (removeable IR-cut filter ICR)
DynaStream™ supported for optimized network efficiency
CBR Pro™ supported for high image quality in limited bandwidth transmissions
ONVIF conformity for standardization and interoperability

Description
Specification
Datasheet

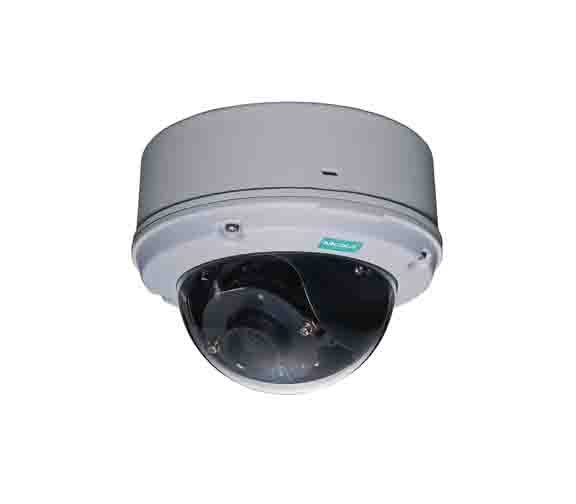

The VPort 26A-1MP is a vandal-proof, IP66-rated, fixed dome HD IP camera for use in harsh, outdoor environments. With a maximum resolution of 1280 x 800, H.264/ MJPEG triple video streams and day-and-night camera lens, the VPort 26A-1MP is especially well-suited for outdoor video surveillance applications.

Excellent Video Quality

To enhance video image quality, the VPort 26A-1MP series is equipped with a megapixel 3 to 9 mm vari-focal lens that meets versatile viewing angle and distance requirements. With a built-in removeable IR-cut filter, and automatic switching from color to B/W images, the VPort 26A-1MP series is suitable for day-and-night use. Along with built-in DNR (Digital Noise Reduction) and WDR (Wide Dynamic Range), the VPort 26A-1MP series provides excellent image quality under low illumination or back light conditions.

Rugged Hardware Design

The VPort 26A-1MP series is specially designed for outdoor applications with the following features: IP66 rain and dust protection, high EMI/surge protection, -40 to 50°C or -40 to 75°C operating temperature without a fan or heater, metal housing, and EN 62262 IK10 vandal-proof dome cover. In addition, the camera is built in a dehumidified membrane for diffusing the moisture inside the camera. Users can choose either the VPort P26A-1MP with PoE (Power over Ethernet, 802.3af) functionality, or the VPort 26A-1MP model with a 12/24 VDC or 24 VAC direct-wired power input.

High Video Performance and Network Security

The VPort 26A-1MP series is designed to provide both H.264 and MJPEG video streams and transmit up to 3 independent video streams (2 in H.264, and 1 in MJPEG) simultaneously. The camera can encode and transmit up to 30 FPS for each of the H.264 and MJPEG streams. In addition, Moxa’s DynaStream™ function changes the video frame rate automatically to help you control your network bandwidth budget and ease network system management. The CBR Pro™ function guarantees no packet loss in limited bandwidth transmissions, ensuring that images will not exhibit the mosaic effect. Advanced network security functions, such as 802.1x and SSH, are also provided to prevent unauthorized access or data hijacking, which is critical for most surveillance applications.

• Camera
Sensor	1/2.7” HD progressive scan CMOS
Lens	Focal length = 3 to 9 mm, F = 1.2
Auto Iris Type	DC drive
Camera Angle (controlled manually)	• Pan: ±175°, Tilt: 0 to 85° • Rotation: PAN: ±180°
Minimum Illumination	• Color: 0.2 lux at F1.2 • B/W: 0.05 lux at F1.2
Synchronization	Internal
White Balance	ATW/AWB (range: 3200 to 10000°K)
Dynamic Range	• Color: 100 db • B/W: 110 db
Electronic Shutter	Auto, 1/30 to 1/25,000 sec.
S/N Ratio	50 dB (Gamma, Aperture, AGC OFF, DNR ON)
ICR Control	Auto
DNR	Built-in DNR (digital noise reduction)
WDR	Level 1-8/ off
AGC Control	2X, 4X, 8X, 16X, 32X, 64X
Flickerless Control	Indoor/Outdoor modes
Black Level Control	High, Medium, Low
Auto Exposure	Level ±5
Image Rotation	Flip, Mirror, and 180° rotation
Image Setting	Manual tuning with saturation, sharpness, and contrast
• Video
Video Compression	H.264 (ISO/IEC 14496-10) or MJPEG
Video Output	Via Ethernet
Video Streams	3 video streams (2 x H.264, 1 x MJPEG)
Video Resolution and FPS (frames per second)
Note	Mulitple streams may not support up to 30 FPS.
Video Viewing	• DynaStream™ supported for changing the video frame rate automatically • CBR Pro™ for good image quality in limited bandwidth transmission • 3 privacy mask areas provided • Adjustable image size and quality • Timestamp and text overlay • M
PTZ	Digital PTZ with 4X zoom
• Audio
Audio Inputs	1 line-in with 2-pin terminal block connector
Audio Outputs	1 line-out with 2-pin terminal block connector
• Network
Protocols	TCP, UDP, HTTP, SMTP, FTP, Telnet, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, IGMPv3, QoS, SNMPv1/v2c/v3, DDNS, Modbus/TCP, 802.1X, SSH/HTTPS
Ethernet	1 10/100BaseT(X) Ethernet port, RJ45 connector
• GPIO
Digital Inputs	1, max. 8 mA • High: +13 V to +30 V • Low: -30 V to +3 V
Relay Outputs	1, max. 24 VDC @ 1 A
• LED Indicators
STAT	Indicates if the system is booted properly or not
Network	10 Mbps or 100 Mbps
Power	Power on/off
DIP Switch	To turn the LED light on/off
• Local Storage
SD Socket	Standard SD socket (SDHC)
• Power Requirements
Power Input	• VPort 26A-1MP: 1, 12/24 VDC or 24 VAC • VPort P26A-1MP: Power-over-Ethernet (PoE, IEEE 802.3af)
Power Consumption	• VPort 26A-1MP: 4.7 W • VPort P26A-1MP: 5.8 W
• Physical Characteristics
Housing	Metal, IP66 rated for rain and dust protection, vandal-proof
Dimensions	149 mm (diameter) x 120 mm (height)
Installation	Surface mounting, or outdoor mounting with accessories
• Alarms
Intelligent Video	Tamper alarm
Video Motion Detection	Includes sensitivity settings
Scheduling	Daily repeat timing schedule
Imaging	JPEG snapshots for pre/trigger/post alarm images
Custom Alarms	HTTP event servers and CGI events for setting customized alarm actions
Email/FTP Messaging	Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-alarm Buffer	24 MB video buffer for JPEG snapshot images
• Security
Password	User level password protection
Filtering	By IP address
Authentication	802.1X
Encryption	HTTPS, SSH
• Environmental Limits
Operating Temperature	Standard models: -40 to 50°C (-40 to 122°F ) Wide temp. models: -40 to 75°C (-40 to 167°F )
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	Up to 2000 m
Note	Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
• Standards and Certifications
Safety	UL 60950-1
Railway	EN50121-4: 2006 (VPort 26A-1MP series)
EMI	FCC Part 15, CISPR (EN 55022) class A
EMS	EN 61000-4-2 (ESD), Level 3, EN 61000-4-3 (RS), Level 3, EN 61000-4-4 (EFT), Level 3, EN 61000-4-5 (Surge), Level 3, EN 61000-4-6 (CS), Level 3, EN 61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Vandal Resistance	EN 62262, IK10 level
• MTBF (mean time between failures)
Time	201,721 hrs
Database	Telcordia (Bellcore), 25°C
• Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty
• Minimum Viewing System Requirements
CPU	Pentium 4, 2.4 GHz
Memory	512 MB of memory
OS	Windows XP/2000 with SP4 or above, Windows Vista, Windows 7
Browser	Internet Explorer 9.x or above
Multimedia	DirectX 9.0c or above
Note	These preliminary specifications are subject to change without notice. Please check our website or sales representative for the most up-to-date specifications.
• Software Bundled Free
VPort SDK PLUS	Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third third-party developers (the latest version of SDK is available for download from Moxa’s website).
Standard	ONVIF ProfileS
