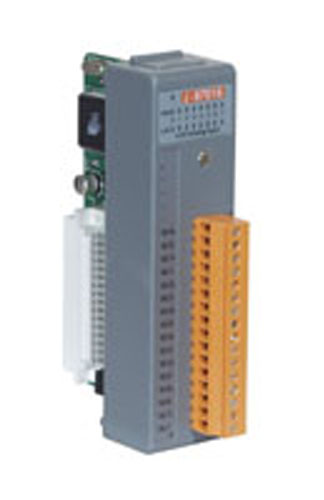

ICP DAS I-87018BL - Broken Line Detection version of I-87018-G
by ICP DAS
|
|
|
|
8 Channel Thermocouple Input Module with Broken Line Detection
|
|
|
I-87018/BL/R has a serial bus (RS-485) communication interface with DCON protocol. It can be plugged into our WinCon, LinCon, I-8000 controllers and I-87K, RF-87K I/O expansion units. I-87018/R is a Thermocouple Input Module with 8 channels. I-87018/R is a serial cartridge based I/O module that offers the ultimate in cost effective flexibility.
- Serial I/O Module
- Analog Input Channels: 8
- Differential Input
- Input Type: thermocouple, mV, V, or mA
- Voltage range: ± 15mV, ±50mV, ±100mV, ±500mV, ±1V, ±2.5V
- Current range: ±20mA
- Sampling rate: 10 samples/sec
- Bandwidth: 13.1 Hz
- Accuracy: ±0.05% or better
- Zero drift: ± 0.033 ppm/°J
- CMR @ 50/60 Hz: 150 dB
- NMR @ 50/60 Hz: 100 dB
- Span drift: 25ppm/°J
- Over voltage protection: ±35V
| Type |
Range°C |
| J |
-210~ +760 |
| K |
-270~+1372 |
| T |
-270~+400 |
| E |
-270~+1000 |
| R |
0~+1768 |
| S |
0~+1768 |
| B |
0~+1820 |
| N |
-270~1300 |
| C |
0~2320 |
| L |
-200~+800 |
| M |
-200~+100 |
| L2(DIN43710) |
-200~+900 |
|
|
|
|
