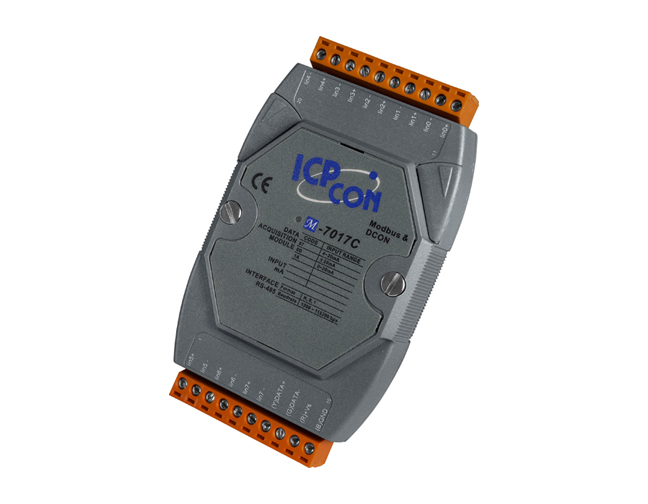

8 Channel Voltage Input & Current Input Analog Input Data Acquisition Module,
communicable over Modbus RTU and RS-485. M-7017C is Current Input Version
M-7017C is a 8-channel Analog Input data acquisition remote I/O module that
supports Modbus RTU. It supports both current input types +/-20mA, 0-20mA and
4-20mA(requires optional external 125ohm resistor). With 240Vrms over-voltage
protection and 4KV ESD Protection for each channel, it offers a safe and
cost-effective solution for your data acquisition needs. It can be remotely
controlled using a set of commands called DCON protocol. With the Modbus RTU
protocol, it can easily communicate with most SCADA/ HMI software and PLCs.
LED Light Indicator
For power and communication
Over voltage protection: 240Vrms
Supports Modbus RTU and DCON Protocol
Din Rail Mountable
8 differential Current Input Channels
Analog Input
Input Channels
8 differential
Input Type
+/-20mA, 0-20mA and 4-20mA (requires optional external 125ohm resistor)
Resolution
16-bit (Normal Mode) / 12-bit (Fast Mode)
Sampling Rate
10 samples/ second (Normal Mode) / 60 samples/ second (Fast Mode) total
Accuracy
+/-0.1% (Normal Mode) / +/-0.5% (Fast Mode) or better
Band Width
15.7Hz (Normal Mode) / 78.7Hz (Fast Mode)
Zero drift
+/-20uV/°C
Span drift
+/-25ppm/°C
Input Impedance
2M Ohms
Common Mode Rejection
86dB min.
Normal Mode Rejection
100dB
Over Voltage Protection
240 Vrms
4KV ESD Protection
Yes, Contact for each terminal.
Intra-module Isolation, Field to Logic
3000 VDC
Interface
Interface
RS-485
Format
N, 8, 1
Baud Rate
1200 ~ 115200bps
LED Display
1 LED as Power/ Communication indicator
Power
Input
+10 to +30 Vdc
Power Consumption
1.3W
Protocol
Support Modbus and DCON Protocol
Yes
Watchdog
Yes, Module, Communication (Programmable over DCON) firmware version
B300 and later
