TN-G6512-8GPoE-WV-CT-T - L2 Managed Ethernet switch, 8 * 10/100/1000BaseT(X) with 802.3at PoE+ and 4 * 10/100/1000 BaseT(X) M12
by MOXA

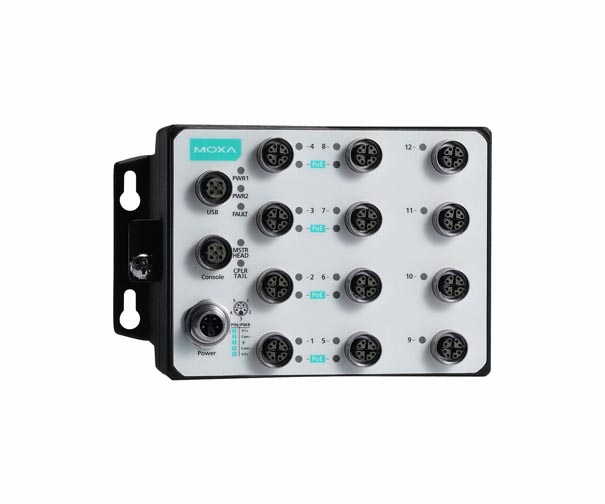

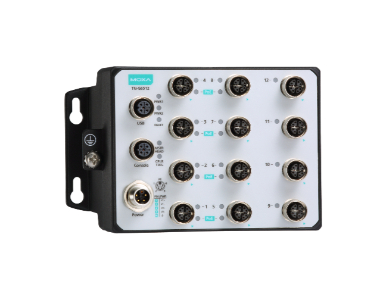

The ToughNet TN-G6512-8GPoE-WV-CT-T M12 managed Ethernet switches are designed for railway applications, including rolling stock and wayside installations. The switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibration and shock are commonplace. The TN-G6500 Series Ethernet switches provide 12 Gigabit Ethernet M12 ports; 8 ports support IEEE 802.3at/af compliant PoE functionality. These PoE switches are classified as power source equipment (PSE); they provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones.

The TN-G6500 Series has push-pull M12 connectors that are tailor-made for push-pull cables in order to facilitate quick installation, and also allow M12 rotary cables to be utilized. The 24 to 110 VDC wide power input range and isolated dual-power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communications system. Furthermore, the -40 to 70°C operating temperature and IP67-rated enclosure allow deployment in harsh environments. The TN-G6512 Series Ethernet switches are compliant with the essential sections of the EN 50155 standard, covering operating temperature, power input voltage, surge, ESD, vibration, power isolation, and includes a model with conformal coating to ensure suitability for a variety of industrial applications.

Additional Features and Benefits

• Provides up to 30 watts per PoE port with a total power budget of 96 watts per switch

• IPv6 Ready logo awarded (IPv6 Logo Committee certified)

• DHCP Option 82 for IP address assignment with different policies

• IGMP snooping and GMRP for filtering multicast traffic

• EtherNet/IP and Modbus/TCP industrial Ethernet protocols supported

• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

• QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic classification and prioritization

• IEEE 802.3ad, LACP for optimum bandwidth utilization

• SNMPv1/v2c/v3 for different levels of network management

• TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security

• RMON for efficient network monitoring and proactive capability

• Bandwidth management prevents unpredictable network status

• Lock port allows access by only authorized MAC addresses

• Port mirroring for online debugging

• Automatic warning by exception through email and relay output

• Line-swap fast recovery

• LLDP for automatic topology discovery in network management software

• Configurable by web browser, Telnet/serial console, CLI, and Windows utility

• Loop protection prevents network loops

• Panel mounting installation capability

Ethernet Interface

• 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)

  4

• PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector)

  8

• Standards

  IEEE 802.1D-2004 for Spanning Tree Protocol
  IEEE 802.1p for Class of Service
  IEEE 802.1Q for VLAN Tagging
  IEEE 802.1s for Multiple Spanning Tree Protocol
  IEEE 802.1w for Rapid Spanning Tree Protocol
  IEEE 802.1X for authentication
  IEEE 802.3 for 10BaseT
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.3ad for Port Trunk with LACP
  IEEE 802.3af/at for PoE/PoE+ output
  IEEE 802.3x for flow control
  IEEE 802.3u for 100BaseT(X)

Ethernet Software Features

• Broadcast Forwarding

  IP directed broadcast, broadcast forwarding

• Configuration Options

  Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility

• Filter

  802.1Q, GMRP, GVRP, IGMP v1/v2, Port-based VLAN, Static Multicast

• Industrial Protocols

  SNMPv1/v2c/v3

• Management

  Account Management, Back Pressure Flow Control, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, SNMP Trap

• MIB

  Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

• Redundancy Protocols

  Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, Turbo Ring with DRC

• Security

  TACACS+, Broadcast storm protection, HTTPS/SSL, Local Account Accessibility, Port Lock, RADIUS, Rate Limit, SSH

• Time Management

  NTP Server/Client, SNTP

Switch Properties

• IGMP Groups

  256

• Max. No. of VLANs

  256

• Priority Queues

  4

• VLAN ID Range

  VID 1 to 4094

LED Interface

• LED Indicators

  PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100/1000M, PoE

Serial Interface

• Console Port

  RS-232 (M12 B-coded 5-pin female connector)

Power Parameters

• Input Voltage

  24/36/48/72/96/110 VDC

• No. of Power Inputs

  2

• Operating Voltage

  16.8 to 137.5 VDC

• Overload Current Protection

  Supported

• Reverse Polarity Protection

  Supported

• Total PoE Power Budget

  96 W

• Input Current

  5.8 A @ 24 VDC

• Power Connector

  M12 K-coded 5-pin male connector

Physical Characteristics

• Housing

  Metal

• IP Rating

  IP67

• Dimensions

  159 x 97 x 100 mm (6.26 x 3.82 x 3.94 in)

• Weight

  1,750 g (3.86 lb)

• Installation

  Wall mounting

• Protection

  TN-G6512-8GPoE-WV-CT-T: PCB conformal coating

Environmental Limits

• Operating Temperature

  -40 to 70°C (-40 to 158°F)

• Storage Temperature (package included)

  -40 to 85°C (-40 to 185°F)

• Ambient Relative Humidity

  5 to 95% (non-condensing)

• Altitude

  2000 m

Standards and Certifications

• EMC

  EN 55032/24

• EMS

  IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 6 GHz: 20 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  IEC 61000-4-6 CS: 10 V
  IEC 61000-4-8 PFMF

• Freefall

  IEC 60068-2-31

• Radio Frequency

  FCC

• Railway

  EN 50121-4, EN 50155, IEC 60571

• Railway Fire Protection

  EN 45545-2

• Safety

  UL 61010-2-201, IEC 60950-1

• Shock

  IEC 60068-2-27, IEC 61373, EN 50155

• Vibration

  IEC 60068-2-64, IEC 61373, EN 50155

Declaration

• Green Product

  RoHS, CRoHS, WEEE

MTBF

• Time

  471,356 hrs

• Standards

  Telcordia SR332
