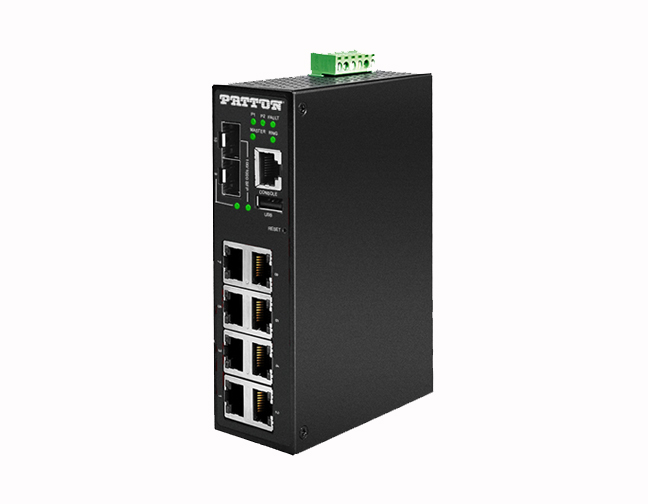

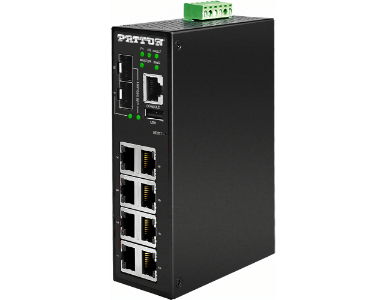

FP2008E/2SFP/8AT/48DC – Managed Industrial PoE+ Ethernet Switch; 8 x PoE+ 10/100/1000 (30W/port); 2 x GigE SFP; -40 to 75°C;
by PATTON

Patton's™ FP2008E-2SFP-8AT-48DC - Managed Industrial Gigabit Power Over Ethernet Switch supports industrial applications requiring high bandwidth or high density connections. The FP2008E/AT is a fully manageable Layer 2 PoE+ switch, pre-loaded with a user-friendly web management console design. Ring network redundancy is provided by MSTP/RSTP and open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol which has a < 50ms network recovery time. Advanced L2 network filtering and prioritization include IGMP, VLAN, QoS/CoS/ToS. Efficient monitoring and security can be achieved through SNMPv1/v2/v3, RMON, port mirroring, 802.1x, HTTPS, SSH/SSL.

The FP2008E/AT is housed in a sturdy IP30-rated DIN-rail enclosure with wall mount options. The physical layer interfaces include 8 x RJ45 10/100/1000 Ethernet ports, capable of providing up to 30W of PoE+ to PoE+ enabled end-points and two Gigabit SFP+ slots that can be used for fiber trunk connections. To ensure operation in harsh environments, the FP2008E/AT provides additional EFT and ESD protection that prevents unregulated voltage or harmful transients, and has an operating temperature rating of -40 to 167F (-40 to 75C).

Copper Ethernet (PoE+) Port	8 x RJ45 10/100/1000 (PSE: 30W/port) auto MDI/MDI-x
Fiber Ethernet Port	2 x GigE SFP cages Wavelength: Refer to patton.com/SFP-OC
RS232 Console Port	1 x RJ45, 115.2kbps, 8, N, 1
USB2.0 Port	Configuration Backup
Switching Properties	Backplane (Switching Fabric): 10 Gbps Processing Type: Store and Forward Transfer Rate: 14,880pps for 10Base-T Ethernet 148,800pps for 100Base-T Fast Ethernet 1,488,000pps for Gigabit Ethernet Jumbo Frame: 9.6 Kbytes MAC Table Size: 8K Packet Buffer: 4 Mbits VLAN Group: 1-4,094 IGMP Group: Up to 256 groups
Networking Standards	IEEE 802.3 10Tx Ethernet IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000Tx Gigabit Ethernet IEEE 802.3z Gigabit Fiber IEEE 802.3x Flow Control for Full Duplex IEEE 802.3ad for Port Trunk with LACP IEEE 802.1d STP (Spanning Tree Protocol) IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1x for Network Authentication IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization
Additional Standards	IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
Power	Power Consumption: 215 Watts @ 48 VDC 255 Watts @ 51-55 VDC PoE+ Power Output: 25 Watts @ 48 VDC 30 Watts @ 51-55 VDC Input Voltage: 48-55 VDC Redundant Input (with 1 removable 6-contact terminal block) 100-240 VAC adapter (optional)
Protection	Reverse Polarity Overload Current CPU Watchdog
Temperature	Operating: -40 to 167°F (-40 to 75°C) Storage: -40 to 185°F (-40 to 85°C)
Ambient Relative Humidity	5 to 95%, (non-condensing
Housing	Metal, IP30 protection, DIN-Rail Mounting (wall mounting bracket is also included)
Dimensions	1.81W x 3.89D x 5.59H in. (46W x 99D x 142H mm)
Weight	Unit Weight: 2.5 lbs (1.13 kg) Shipping Weight: 3.0 lbs (1.36 kg)
Certifications	FCC, CE, UL 61010-1 UL 61010-2-201 Class 1 Div 2
EMI	FCC Class A
EMS	IEC61000-4-2, 4-3, 4-4, 4-5, 4-6, 4-8 IEC61000-6-2, 6-4
Free fall / Shock / Vibration	IEC60068-2-32 / IEC60068-2-27 / IEC60068- 2-6
