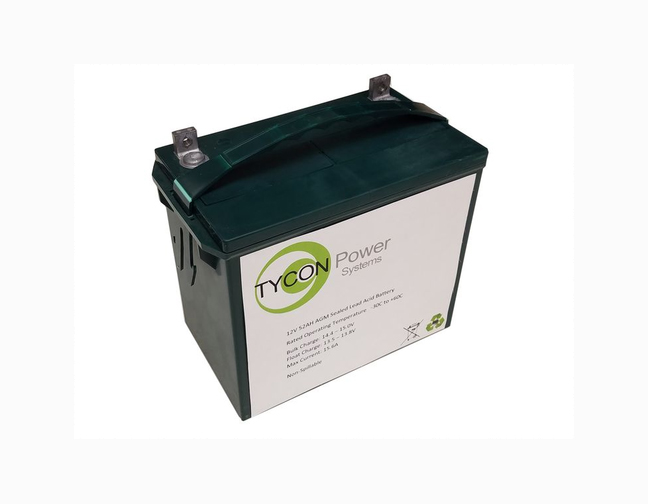

Tycon Systems TPBAT12-52 - *Discontinued* - 12V 52Ah AGM SLA Battery with 1/4" Connection. 9.8 x 5.4 x 8.6", 40.3lb
by TYCON SYSTEMS
|
|
|
|
- Sealed and Maintenance Free
- Safety Valve for Ultimate Safety; Prevents Overpressure
- Exceptional Deep Discharge Recovery Performance
- Low Self Discharge Characteristics
- Highly Resistant to Vibration and Shock
|
|
|
TPBAT12-52 is the high rate valve regulated sealed lead acid (VRLA) AGM battery has been developed for long term operation in harsh environments. The TPBAT12-52 have a high cycle life and impressive 8 year float life and are designed to operate over a wide temperature range such as those experienced in outdoor equipment applications. The batteries can be installed in any position without affecting their performance or reliability. The batteries have a carrying/lifting handle for convenience.
|
TPBAT12-52 |
Voltage |
12V |
Capacity (amp hours; 20hr) |
52 |
Typical Float Life |
8 Years |
30% Discharge Cycle Life |
1800 Cycles |
Type / Technology |
Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM) |
Self Discharge (25°C) |
<3% per month |
Charge Voltage (-30mV / °C) |
14.4 to15V ; Max Current 15.6A |
Float Voltage (-20mV / °C) |
13.5 to 13.8V |
Internal Resistance |
5.5mΩ |
Operating Temperature |
-30C (-22F) to +60C (140F) |
Housing |
ABS (UL94HB) |
Dimensions (L x W x H) |
248 x 138.4 x 219 (9.8 x 5.4 x 8.6”) |
|
|
|
|
