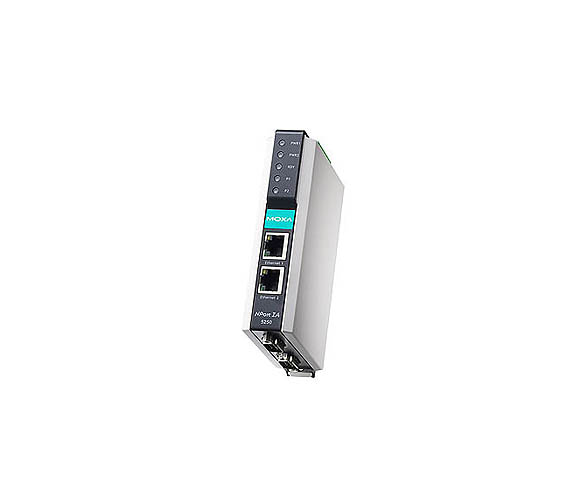

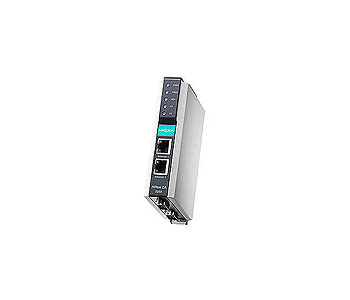

NPort IA-5250-T-IEX - 2-port RS-232/422/485 to 2-ports 10/100BaseT(X), -40 to 75 Degree C, IECEx by MOXA
|
|
|
- 2 Ethernet ports with the same IP or dual IP addresses for network redundancy
- C1D2, ATEX, and IECEx certified for harsh industrial environments
- Cascading Ethernet ports for easy wiring
- Enhanced surge protection for serial, LAN, and power
- Screw-type terminal blocks for secure power/serial connections
- Redundant DC power inputs
- Warnings and alerts by relay output and email
- 2 kV isolation for serial signals (isolation models)
- -40 to 75°C operating temperature range (-T models)
|
|
|
The NPort IA-5250-T-IEX device servers are designed for connecting industrial automation serial devices, such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. The device servers are solidly built, come in a metal housing and with screw connectors, and provide full surge protection. The NPort IA5000A device servers are extremely user-friendly, making simple and reliable serial-to-Ethernet solutions possible.
• Ethernet Interface (NPort IA5150/5150I/5250) |
Number of Ports |
2 |
Speed |
10/100 Mbps, auto MDI/MDIX |
Connector |
8-pin RJ45 |
Magnetic Isolation Protection |
1.5 kV built-in |
• Optical Fiber Interface (-M-SC and -S-SC models) |
Table |
|
• Serial Interface |
Number of Ports |
NPort IA5150: 1
NPort IA5250: 2 |
Serial Standards |
RS-232/422/485 |
Connector |
NPort IA5150: DB9 male for RS-232, terminal block for RS-422/485
NPort IA5250: DB9 male for RS-232/422/485 |
Serial Line Protection |
15 kV ESD protection for all signals
2 kV isolation protection (NPort IA5150I, NPort 5150I-M-SC, NPort 5150I-S-SC) |
RS-485 Data Direction Control |
ADDC® (automatic data direction control) |
• Serial Communication Parameters |
Data Bits |
5, 6, 7, 8 |
Stop Bits |
1, 1.5, 2 |
Parity |
None, Even, Odd, Space, Mark |
Flow Control |
RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
Baudrate |
110 bps to 230.4 Kbps |
• Serial Signals |
RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
RS-422 |
Tx+, Tx-, Rx+, Rx-, GND |
RS-485-4w |
Tx+, Tx-, Rx+, Rx-, GND |
RS-485-2w |
Data+, Data-, GND |
• Software |
Network Protocols |
ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, SNMP V1, HTTP, SMTP, SNTP |
Configuration Options |
Web Console, Serial Console, Telnet Console, Windows Utility |
Windows Real COM Drivers |
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8 x86/x64, 2012 x64, Embedded CE 5.0/6.0, XP Embedded |
Fixed TTY Drivers |
SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i |
Linux Real TTY Drivers |
Linux kernel 2.4.x, 2.6.x, 3.x |
• Physical Characteristics |
Housing |
Plastic, IP30 protection |
Weight |
NPort IA5150: 360 g
NPort IA5250: 380 g |
Dimensions |
29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in) |
• Environmental Limits |
Operating Temperature |
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
Storage Temperature |
-40 to 75°C (-40 to 167°F) |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
• Power Requirements |
Input Voltage |
12 to 48 VDC |
Power Consumption |
NPort IA5150: 238 mA @ 12 V
NPort IA5150I: 257 mA @ 12 V
NPort IA5250: 238 mA @ 12 V
NPort IA5250I 300 mA @ 12 V
NPort IA5150-S-SC: 328 mA @ 12 V
NPort IA5150I-S-SC: 333 mA @ 12 V
NPort IA5150-M-SC: 315 mA @ 12 V
NPort IA5150I-M-SC: 339 mA @ 12 V |
• Standards and Certifications |
Safety |
UL 508, UL 60950-1, EN 60950-1 |
Hazardous Location |
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx Zone 2 |
EMI |
EN 55022 Class A, FCC Part 15 Subpart B Class A |
EMS |
EN 55024,
EN 61000-4-2 (ESD) Level 3,
EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 4,
EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3,
EN 61000-4-8,
EN 61000-4-11 |
Shock |
IEC 60068-2-27 |
Freefall |
IEC 60068-2-32 |
Vibration |
IEC 60068-2-6 |
Marine |
DNV |
• Reliability |
Alert Tools |
Built-in buzzer and RTC (real-time clock) |
Automatic Reboot Trigger |
Built-in WDT (watchdog timer) |
Water and Dust Proof |
IP30 |
MTBF (mean time between failures) |
NPort IA5150 Series: 183,747 hrs
NPort IA5150I Series: 195,614 hrs
NPort IA5250 Series: 194,765 hrs |
|
|
|
|
