n Access Point
by ORing Industrial Networking

High Speed Air Connectivity: WLAN interface support up to 150 Mbps link speed
Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
Support X-Roaming < 100 ms
Support AP/Client/Bridge/AP-Client Mode
Secured Management by HTTPs
Wireless connecting status monitoring
Event Warning by Syslog, Email, SNMP Trap
1KV isolation for PoE P.D. port of IAP-420+
Rigid IP-30 housing design
DIN-Rail and Wall-mount enabled

Description
Specification
Datasheet

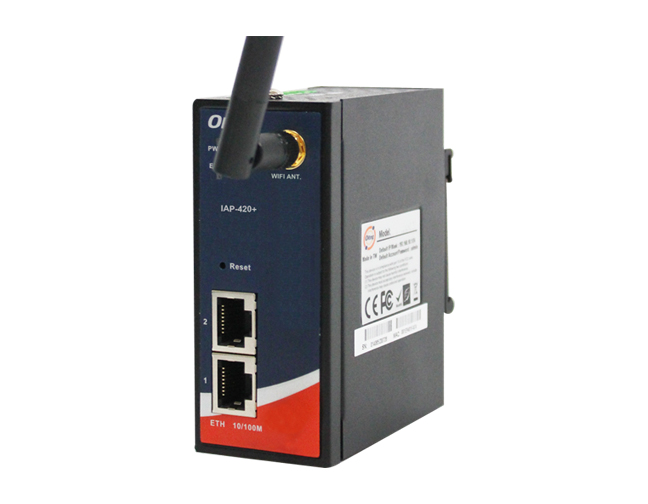

IAP-420 / IAP-420+ series are reliable 802.11 b/g/n WLAN Access Point with 2 ports LAN. It supports 802.1X and MAC filters for security control. It can be configured to operate in AP/Bridge/Repeater/AP-Client mode. You are able to configure IAP-420 / IAP-420+ series by WEB interface via LAN port or WLAN interface. In addition, IAP-420+ also provides P.D. feature on ETH1 which is fully compliant with IEEE802.3af PoE P.D. specification. Therefore, IAP-420 / IAP-420+ series are one of the best communication solutions for wireless applications on the industrial network.


Physical Ports
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX	2
P.O.E. PD port	Present at ETH1 Fully compliant with IEEE 802.3af Power Device specifi cation Over load & short circuit protection Isolation Voltage : 1000 VDC min. Isolation Resistance : 108 ohms min
WLAN interface
Operating Mode	AP/Bridge/AP-Client
Antenna Connector	1 x External reverse SMA-type antenna connector
Radio Frequency Type	DSSS, OFDM
Modulation	IEEE802.11b: CCK, DQPSK, DBPSK IEEE802.11g/n: OFDM with BPSK, QPSK, 16QAM, 64QAM
Frequency Band	America/FCC: 2.412~2.462 GHz (11 channels) Europe CE/ETSI: 2.412~2.472 Ghz (13 channels)
Transmission Rate	802.11b: 1/2/5.5/11 Mbps 802.11g: 6/9/12/18/24/36/48/54 Mbps 802.11n(40MHz): UP to 150 Mbps
Transmit Power	802.11b: 13.5dBm ±1.5dBm 802.11g: 13.5dBm ±1.5dBm 802.11n(2.4G@20MHz): 13.5dBm ±1.5dBm 802.11n(2.4G@40MHz): 13.5dBm ±1.5dBm
Receiver Sensitivity	802.11b: -90dBm ±2dBm@1Mbps 802.11g: -72dBm ±2dBm@54Mbps 802.11n(2.4G@40MHz,MCS7): -68dBm ±2dBm
Encryption Security	WEP: (64-bit, 128-bit key supported) WPA/WPA2:802.11i (WEP and AES encryption) WPA-PSK (256-bit key pre-shared key supported) 802.1X Authentication supported TKIP encryption
Wireless Security	SSID broadcast disable and enable
Protocol Support
Protocol	ARP,BOOTP, DHCP, DNS, HTTP, IP, ICMP, SNTP, TCP, UDP, 802.1X, SNMP, STP
LED Indicators
Power Indicator	LED x 3, PWR 1, 2, (PoE): Green On: Power is on and functioning Normally.
100/1000TX RJ45 Port Indicator	LED x 2 , Green for port Link/Act at 100Mbps.
WLAN LEDs	WLAN Link /ACT: Green: Link,
Power
Redundant Input Power	Dual DC inputs. 12~48VDC on 4-pin terminal block
Power Consumption (Typ.)	4watts
Overload Current Protection	Present
Reverse Polarity Protection	Present
Physical Characteristic
Enclosure	IP-30
Dimension (W x D x H)	41(W) x 81(D) x 95(H) mm (1.6 x 3.1 x 3.7 inch.)
Weight (g)
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-10 to 60oC (14 to 140oF)
Operating Humidity	5% to 95% Non-condensing
Regulatory approvals
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS),EN61000-4-8, EN61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-31
Vibration	IEC60068-2-6
Safety	EN60950-1
