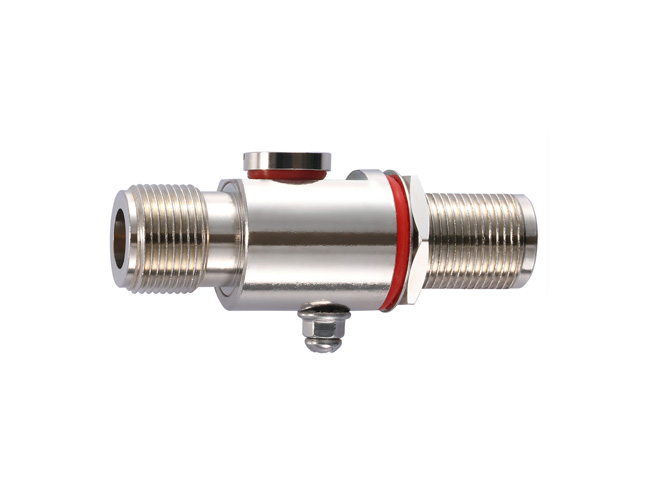

The A-SA-NFNF-02 Series is a N-type (female) to N-type (female) surge arrester to help protect connected electrical devices from power surges.
-
Frequency
0 to 6 GHz
-
V.S.W.R.
<1.5
-
Insertion Loss
0.5 dB (max.)
-
DC Breakdown Voltage
230 V ± 20% @ 100 V/S
-
Impulse Breakdown Voltage
< 700 V @ 1k V/μs
-
Surge Discharge Current
10 kA @ 8/20 μs
-
Initial Insulation Resistance
≥ 1000 mΩ
-
Electrode Capacitance
1.5 P
