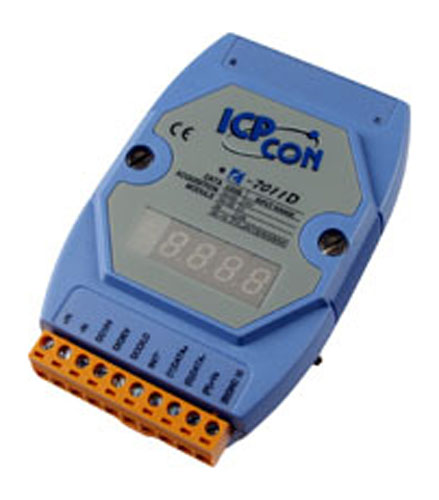

ICP DAS I-7011D - I-7011 with LED Display
by ICP DAS

Voltage & Current Thermocouple Input Data Acquisition Module with LED Display, 1AI, 1 DI, 2 DO Channels, communicable over RS-485, and FREE EZ Data Logger Software. Supports operating temperatures between -25 to 75°C.

Description
Specification
Datasheet

The I-7011D module provides cost-effective protection and conditioning for a wide range of valuable industrial control signals and systems. DCON utility can help users to configure and test I-7011D modules. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals. I-7011D comes with FREE EZ Data Logger Software.

automation application

Analog Input
Input Channels	1
Input Type	+/-15mV, +/-50mV, +/-100mV,+/- 500mV , +/-1V,+/- 2.5V +/- 20mA (requires optional external 125 ohm resistor) Thermocouple( Type J, K, T, E, R, S, B, N, C)
Resolution	16-bit
Sampling Rate	10 Samples/ Second
Accuracy	+/-0.05%
Zero Drift	+/-0.5uV/°C
Span Drift	25ppm/°C
Band Width	5.24Hz
Common Mode Rejection	150dB
Normal Mode Rejection	100dB
Input Impedance	20M Ohms
Intra-module Isolation, Field to Logic	3000 VDC
Digital Input
Channels	1
Logic Level 0	+1V max
Logic Level 1	+3.5V to 30V
Max Input Frequency	50Hz
Min. Pulse Width	1 ms
Digital Output
Channels	2
Output Type	Sink, Open Collector to 30V
Output Load	30mA max. per channel
Power dissipation	300 mW
Interface
Interface	RS-485
Format	N, 8, 1
Baudrate	1200 ~ 115200 bps
LED Display
1 LED as Power/ Communication indicator
4 1/2 digits (for I-7011D)
Power
Input	+10 to +30 Vdc
Power Consumption	0.9 W (I-7011) / 1.5W(I-7011D)
Environment
Operating temperature	-25°C to 75 °C
Storage temperature	-30°C to 75 °C
Humidity	5 to 95%, non-condensing
