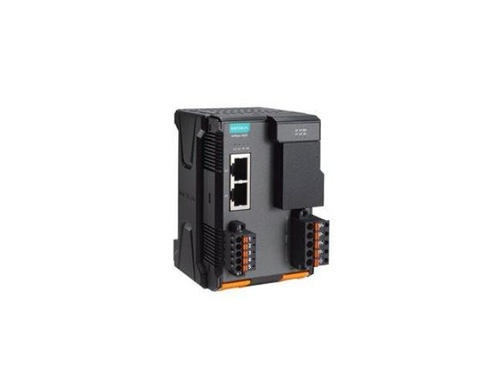

ioThinx 4533-LX (V1) - (V1.0.1 legacy) Controller with Cortex-A7 1GHz dual-core CPU, 512MB RAM, 3-in-1 serial port(s), Linux ver by MOXA
|
|
|
ioThinx 4533-LX (V1)_SUMMARY.html
- -40 to 75C wide operating temperature model available
- Easy tool-free installation and removal
- Supports up to 64 45MR I/O and up to 5 45ML communication modules
- microSD socket for storage expansion
- Class I Division 2 and ATEX Zone 2 certifications
|
|
|
ioThinx 4533-LX (V1)_DESCRIPTION.html
ioThinx 4533-LX (V1) - The ioThinx
4530 Series is a versatile Linux-based controller with support for
I/O and serial expansion modules. Equipped with a Cortex-A7 dual-core
CPU, 2 GB of memory, and 3-in-1 serial interfaces, the ioThinx 4530
Series offers robust performance. These controllers can support up
to 64 units with the dedicated 45MR Series modules, including digital
and analog I/O, relay, and temperature modules. In addition, the ioThinx
4530 Series supports up to five 45ML Series serial modules.
ioThinx 4533-LX (V1).html
Computer -
CPU - Armv7 Cortex-A7 dual-core 1 GHz
-
OS - Moxa Industrial Linux 3 (Debian 11, kernel 5.10)
See www.moxa.com/MIL -
Clock - Real-time clock with capacitor backup
-
DRAM -
MRAM -
Storage Pre-installed - 8 GB eMMC (6 GB reserved for the user)
-
Storage Slot - microSD Slots x 1 (up to 32 GB)
-
Expansion Slots - Up to 64 (with 45MR I/O modules)
Up to 5 (with 45ML communication modules) Control Logic Computer Interface Input/Output Interface Ethernet Interface -
10/100BaseT(X) Ports (RJ45 connector) -
Magnetic Isolation Protection Security Functions -
Authentication -
Encryption -
Security Protocols -
Hardware-based Security Serial Interface -
Console Port - RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
-
No. of Ports - 1 x RS-232/422 or 2 x RS-485-2w
-
Connector - Spring-type Euroblock terminal
-
Serial Standards - RS-232/422/485 (software selectable)
-
Baudrate - 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
-
Flow Control -
Parity -
Stop Bits -
Data Bits Serial Signals System Power Parameters -
Power Connector - Spring-type Euroblock terminal
-
No. of Power Inputs -
Input Voltage -
Power Consumption -
Over-Current Protection -
Over-Voltage Protection -
Output Current Field Power Parameters -
Power Connector - Spring-type Euroblock terminal
-
No. of Power Inputs -
Input Voltage -
Over-Current Protection -
Over-Voltage Protection -
Output Current Physical Characteristics -
Wiring - Serial cable, 16 to 28 AWG
Power cable, 12 to 26 AWG -
Strip Length - Serial cable, 9 to 10 mm
Power cable, 12 to 13 mm -
Housing -
Dimensions - 60.3 x 99 x 75 mm (2.37 x 3.9 x 2.96 in)
-
Weight -
Installation Standards and Certifications -
EMC -
EMI - CISPR 32, FCC Part 15B Class A
-
EMS - IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF -
Safety -
Shock -
Vibration -
Hazardous Locations MTBF Environmental Limits -
Storage Temperature (package included) -
Ambient Relative Humidity - 5 to 95% (non-condensing)
-
Altitude Declaration
|
|
